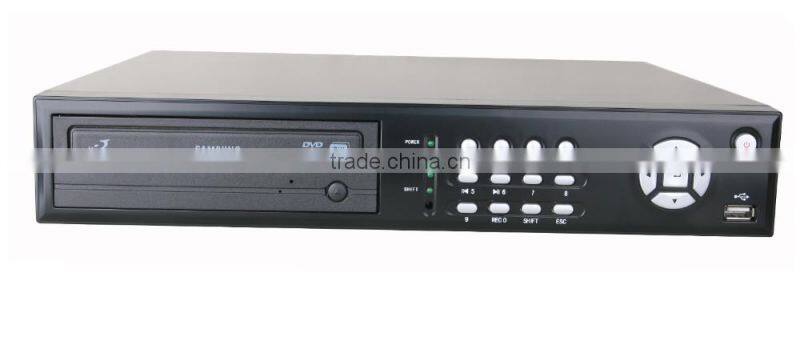

16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR)

16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) thumbnail-1
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) thumbnail-2
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) thumbnail-3
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) thumbnail-4
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) photo-1
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) photo-2
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) photo-3
16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR) photo-4
US$ 128 - 128 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Japan Nature
Model Number:
NVC-AVR216N
Contact Supplier Request Quote Chat Now
Shenzhen Nature Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Japan Nature
Model Number NVC-AVR216N

Japan Nature    16CH AHD-M Coaxial HD Digital Video Recorder





Video Input: 16CH BNC

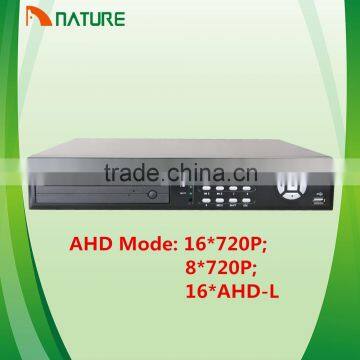

                         Analog: 16*720P; 8*720P; 16*AHD-L

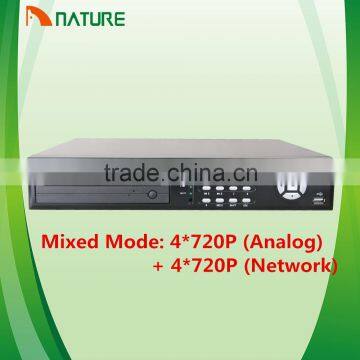

                         Mix: 4*720P(Analog) + 4*720P(Network)

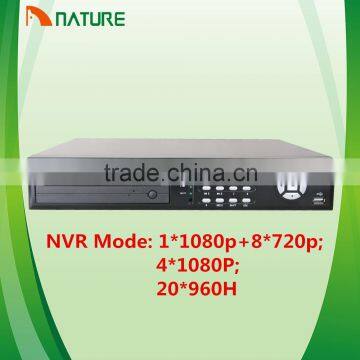

                         Network: 1*1080P+8*720P; 4*1080P; 20*960H



Video Output: 1CH*VGA, 1CH*HDMI

Playback: 4CH 1*720P@25fps



HDD Capacity Usage:  720P 20G/Day; AHD-L 12~20G/Day*CH;  Audio: 691.2M/Day*CH



  •  Support AHD-M front-end real-time encoding; VGA, HDMI output;
  • Support for multiple cloud technology (P2P) , network penetration, alarm information send to your phone and other functions;
  • Support mobile phone surveillance ( iPhone, Android Windows Mobile, BlackBerry, Symbian,);
  • Support multiple browser (IE, Chrome, Firefox, Safari);
  • Support more than  20 kinds language (English, Finnish , French , German, Greek, Italian , Japanese, Polish , Portuguese , Russian, Spanish , Thai , Chinese , Traditional Chinese , Turkish , etc. ) ,
  • Perfect protection circuit, unique triple watch-dog function;
  • CMS, MYEYE, SDK Avaliable





SPECIFICATION



Model No.

 AVR-216N

System

CPU

 Hisilicon 3531

Video

Image Coding

 H.264(High Profile);

Coding  capability

 16*720P@20fps

Decoding Capability

 1*720P@20fps

Multi-mode Input

 Analog:16*720P;8*720P;16*AHD-L;

 Mix:4*720P(Analog)+4*720P(Network);

 Network:1*1080P+8*720P;4*1080P;20*960H;

Audio

Compression

 G.711A

Talkback

 support

Recording& Playback

Recording Mode

 Manual> Alarm > Dynamic Detection> Timing

Playback

 1*720P@25fps

Storage & Backup

Each HDD Space

 720P 20G/Day;AHD-L 12~20G/Day*CH; Audio:691.2M/Day*CH

Backup

 Network backup , USB hard disk , USB recorder , SATA burner

Interface

Video input

 16CH BNC

Video Output

 1CH VGA,1CH HDMI

Audio input

 2CH RCA

Audio output

 1CH RCA

Alarm input

 Scalable 4CH alarm +6CH audio ( need add CNY35 )

Alarm output

Internet

 RJ45 10M/100M Adaptive Ethernet port

PTZ

 1CH RS485;Support multi PTZ protocol

USB

 2CH USB Interface

HDD

 2 *SATA Interface(Each Up To 4TB)

WIFI

 3G, WIFI (via USB extension)

Others

Power

 12V/3A

Size

 360*320*65mm







 16CH H.264 AHD-M Coaxial HD Digital Video Recorder (DVR)











ABOUT US



Japan NATURE      www. .jp

was founded in 1972, with headquarter in Tokyo, Japan. As a professional security manufacturer for over 40 years, it created  lots of image processing technologies of security cameras since 1980s. NATURE has achieved “ISO 14001 International Environmental Baseline" Certification in Sep, 2000.



Shenzhen NATURE

is the factory in  China. It focuses on R&D, manufactures top quality products and offers high cost performance in accordance with the latest JAPAN NATURE.



QUALITY CONTROL



For each Japan NATURE camera,  Full strict testing procedures are carried out:

  • Temp&Humidity Test;
  • 48 hours Burn-in Test;
  • Function Test;
  • Night Version Test;
  • IP66 & Weatherproof Test;
  • Salt Spraying Test;
  • Transport Shaking Test;
  • Drop Test etc.





SHIPPING:

                     Qucik delivery  "3-10 days for ≤100pcs orders".







WARRANTY:
