Inconel 625 sheet1.UNS N06625/Alloy 625
2.Resistant to Seawater Corrsion
3.High heat strength
4.Good quality

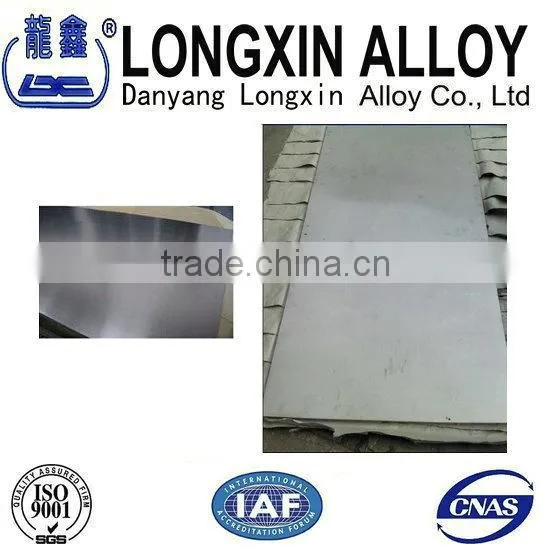

Inconel 625 sheet
Inconel 625 Chemical composition:
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min | balance | 20 | 8 | 3.15 | |||||||||
| Max | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Pysical properties:
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350°C |
Inconel 625 Alloy minimummechanical properties in the room temperature:
| Alloy state |
Tensile strength Rm N/mm² |
Yield strength R P0. 2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
| 625 | 760 | 345 | 30 | ≤220 |
Size:10-300mm
Forms: Plates, Sheets, Round Bar,Wire, Forging
Inconel 625 Typical application field as below:
1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3.Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling
Related Products:
Incoloy 800,Incoloy 800H, Incoloy 825, Inconel 600, Inconel 601, Inconel 625, Inconel 718, etc.
Our company has been in this line over 10 years, we can supply good products and good services.
Win-Win is our company tenet!
Don't hesitate to contact me, we will give you a satisfactory reply!
