Home > Products > High-resistance Electrothermal Alloy > Cr20Ni30 nickel chrome electric heating wire

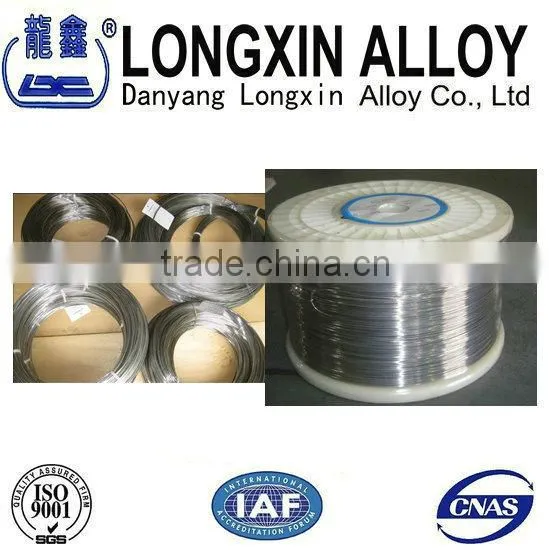

Cr20Ni30 nickel chrome electric heating wire
- 1500 Ton / Tons per Month
- Shanghai
- T/T Credit Card
- Lork Brushed Finish Incoloy A-286 Nickel Round Bar With Spot Wholesale
- Nickel 201/Nickel 200/N02200/N02201/N4 Pure Nickel Alloy Bar/Rod Stock in Factory
- 2.4375/N07750/Inconel 601/1J54/2.4360 Nickel Alloy Bar/Rod
- Incoloy 925/Incoloy 20/N08367/N08926/N10001 Nickel Alloy Bar/Rod
- GH2696/NS313/L605/GH648/GH4037 High tempreturer Nickel-based Alloy Bar/Rod
- GH3030/GH5188/GH105/GH605/GH3044 High tempreturer Nickel-based Alloy Bar/Rod
Product Details
Place of Origin: | Jiangsu, China | Type: | Nickel Wire | Application: | heating, resistance |
Grade: | nickel chrome | Ni (Min): | 20% | Powder Or Not: | Not Powder |
Model Number: | nickel chrome alloy | Brand Name: | Long-xin |
Product Description
Specifications
Cr20Ni30 nickel chrome electric heating wire1.High resistance&long-term use
2.Form:wire,bar,strip,sheet,forging,ect
Cr20Ni30 nickel chrome electric heating wire
Nichrome Grade: Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20
Standard:GB/T1234-95
Product forms: wire,bar,strip,forging,sheet,etc.
Description:
Cr20Ni30 is a nickel-chromium alloy (NiCr alloy) for use at temperatures up to 1200°C (2190°F). The alloy is characterized by high resistivity, good oxidation resistance and very good form stability. It has good ductility after use and excellent weldability.
Cr20Ni30 is used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Ni-Cr alloy with high resistivity and serviceability temperature.
Grade Properties
| Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Major chemical component% | Ni | Margin | Margin | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
Fe | ≤1.0 | ≤1.0 | Margin | Margin | Margin | |
Max TEMP °C | 1200 | 1250 | 1150 | 1100 | 1100 | |
Melting Point °C | 1400 | 1380 | 1350 | 1350 | 1390 | |
Density gcm3 | 8.2 | 8.1 | 8.2 | 8.0 | 7.9 | |
Resistivity 20 °C mm2/m | 1.14±0.05 | 1.18±0.05 | 1.12±0.05 | 1.05±0.05 | 1.04±0.05 | |
Elongation δ% | min20 | min20 | min20 | min25 | min20 | |
NO. of repeated bending | min9 | min9 | min9 | min9 | min9 | |
Rapid life test °C / Hour | 1175/100 | 1175/100 | 1120/100 | 1120/100 | 1120/100 | |
Magnetic | Non-magnetic | Non-magnetic | Non-magnetic | Non-magnetic | Non-magnetic |
Features
(1) High electric resistance
(2) Antioxidant
(3) High tensile strength under high temperature
(4) Good formability and weldability
(5) Long service life
Our company has been in this line over 10 years, we can supply good products and good services.
Win-Win is our company tenet!
Don't hesitate to contact me, we will give you a satisfactory reply!
Factory
Testing Equipment
Certification
Packing
