orange juice /apple juice juice pouch packing machine factory
Application:
1-- It can filling and sealing any shapes bag(including stand up bag with spout Straw bags).
It suitable for various liquids such as water, fruit juice, ice lolly,yogurt,soymilk, Japan Tofu,milk,beverage,liquid soap etc.
2--Full set of the sealing system adopts copper material, the heat conduction modulus is very high, so the sealing is very tight and nice..
3--The whole machine made by high quality 304 stainless steel.
4--The pipe which touch the liquid adopts the food grade standard.
5--The heat sealing blade made by special process, replaced the high temperature tape, so it will save more consumable spare parts after many years using..
6--8 nozzles,high speed max 2000bags/hour.(different size bag with different speed.)
7-- Touch screen PLC computer control system, very easy operation.
Main technical parameter
| Name | Filling machine |
| Type | PZD-A |
| Size | 1200*700*1550mm |
| Weight | 120kg |
| Capacity | 50-500ml/bag(can be special customized) |
| Efficiency | 1500-2000bags/hour(according to bag capacity) |
| Power | 1.2-1.6kw |
| Power supply | 220V 50Hz |
| Source | 0.3-0.5m³/min 0.8mpa |
| use | liquid food |
| packing type | plastic pouch with spout but not have cap |

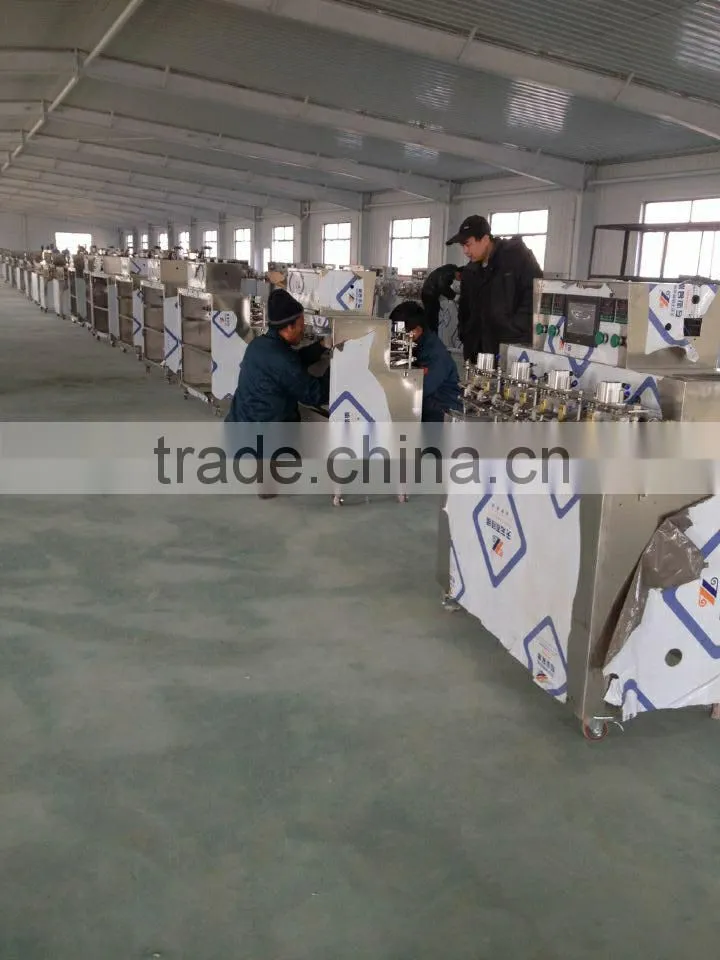

The pictures:

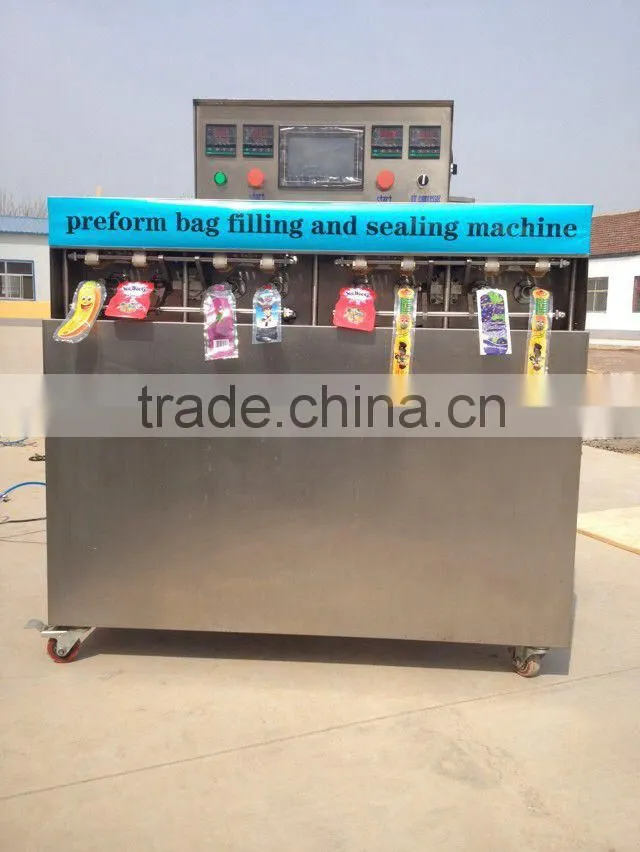

PZD-A 1500-2000BAGS/HR Juice bag packing machine (8nozzle)

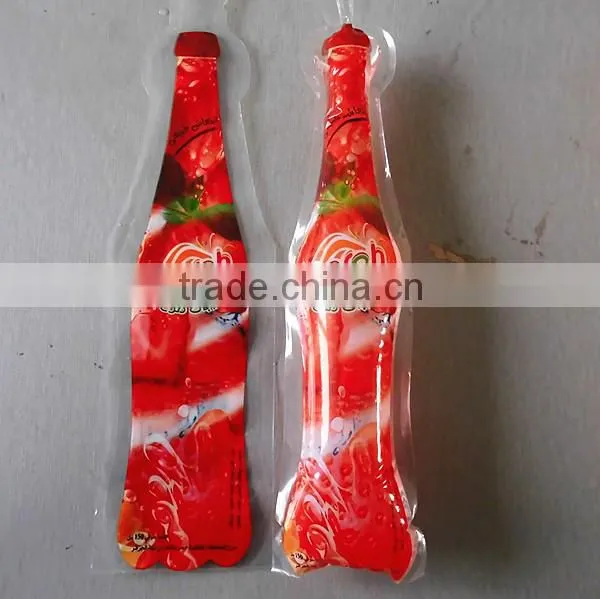

The Filling bag show :we also can supply you the bag

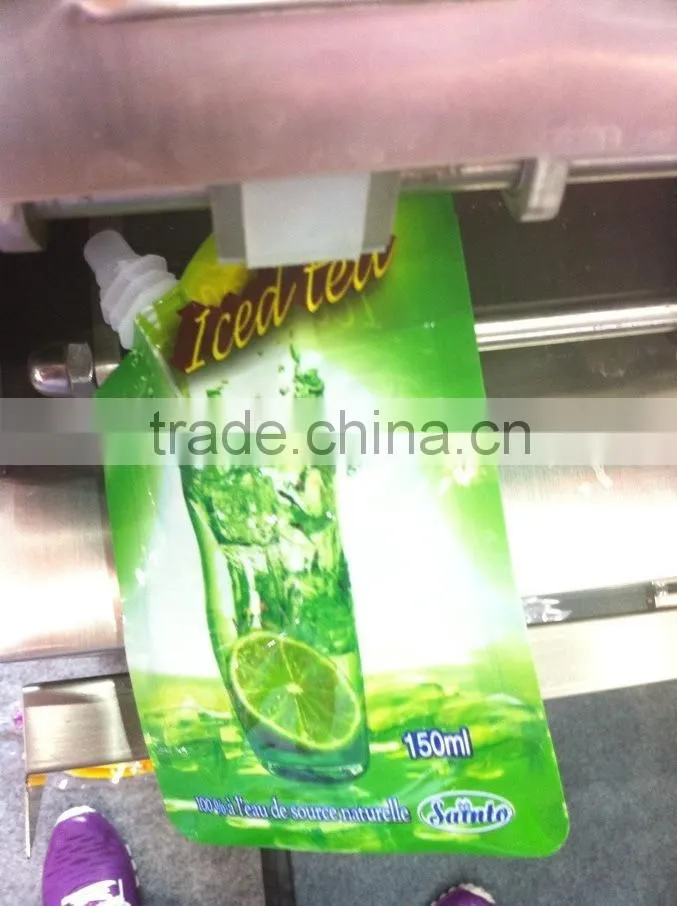

This type is the bag with cap , also can use this same machine .

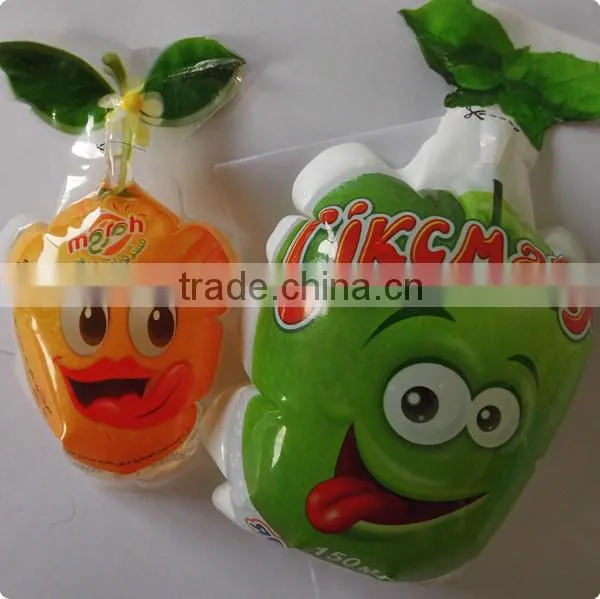

Another type is soft bag
We also have many type bag , and also can specifil make for you .you can send us your design .
For the machine we can warranty for one year . if meet problem will be free change .(not include the wearing parts )
