Continuous Vertical Packing Machine for Sale

Continuous Vertical Packing Machine for Sale thumbnail-1
Continuous Vertical Packing Machine for Sale photo-1
US$ 3,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Filling, Sealing
Application:
Beverage, Chemical, Commodity, Food, Medical
Contact Supplier Request Quote Chat Now
Wenzhou T&D Packaging Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Filling, Sealing
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 1.5kw
Place of Origin Zhejiang, China
Brand Name T&D
Model Number S3-100
Dimension(L*W*H) 760*1380*1700mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

S3-100 continuous vertical packing machine for sale





Product Description



continuous vertical packing machine for sale



Brief introduction



Adopts Computer Controll System completly, it can finish the production's process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip , and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as shampoo.

Sealing type:

The bag can be sealed on three sides, four sides, or pillow.

Packaging material :Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper & etc.

Option: Hot stamp ribbon coder(color style,ink wheel style);micro - computer controller.

Features
  • Back sealing, three-side sealing, four-side sealing packing method;
  • The packing data and adjustment can be displayed on the screen. The user can directly operate it on it;
  • Assembled with a photoelectric controller to ensure that its packing bag figure are perfect;
  • It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number;
  • The body and the parts touching the material are made of stainless steel;

Suitable material

It is applicable for packing the liquid like hairdressing water, hair conditioner, lotion, soy sauce, cough syrup, agricultural chemicals, wine and sauce.

Technical specifications

Type S3-100 S3-1000 S3-2000
Bag-making length 50-150mm 50-300mm 80-300mm
Bag-making width 25-120mm 70-190mm 90-190mm
Packing film width 60-240mm 160-380mm 200-380mm
Packing capacity 5-100ml 50-1000ml 200-2000ml
Packing speed 30-60pcs/min 20-40pcs/min 15-30pcs/min
Power 1.6kw 1.6kw 1.6kw
air power 0.65mpa 0.65mpa 0.65mpa
air consumption 150L 180L 200L
overall Dimension 760*1380*1700mm 900*1800*2040 900*2000*2040mm
Weight 300kg 480kg 650kg



The parameter above is only for reference, please make the object as the standard .



Samples

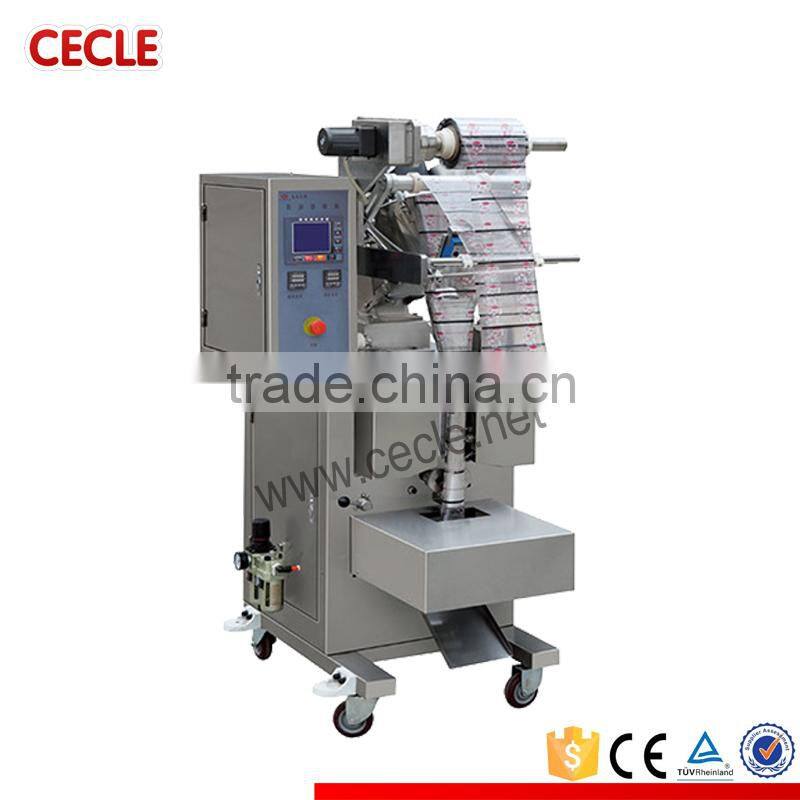

continuous vertical packing machine for sale



Packaging & Shipping

Packaging details

Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;

Shipping methods

1. Shipping by sea(recommend big product or a lot of goods of the order)

2. By air

3. By express: TNT, EMS, DHL, Fedex, UPS etc

Our Services

Quality guarantee&Service



1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.



3. The warranty time is one year. Quick-wear part is excluded.



4. When warranty date expires, lifetime maintenance service is provided.

Company Information

continuous vertical packing machine for sale

1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.

 2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.



 3. We  adhere to the philosophy of quality win and innovation makes success.



 4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.

FAQ

Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.



Your Satisfaction is Our Honor!
