FF6-1200 Horizontal Pharmaceutical Syrup Filling Machine With Hopper
US$ 900 - 2,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F3-600 Small Pet Bottle Filling MachineUS$ 600 - 3,500MOQ: 1 Set -
DFF3-150 Semi Automatic Multifunctional Filling Machine PriceUS$ 900 - 1,800MOQ: 1 Set
-
DF4-4A 4 Heads Perfume Filling MachineUS$ 800 - 1,500MOQ: 1 Set
-
FF3-1200 Semi Automatic Stainless Fruit Juice Filling MachineUS$ 600 - 3,500MOQ: 1 Set
-
A03 Portable Small Liquid Filling MachineUS$ 220 - 400MOQ: 1 Set
Condition
New
Application
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type
Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material
Glass, Plastic
Automatic Grade
Semi-Automatic
Driven Type
Pneumatic
Voltage
220v/50Hz or 110v/60Hz(Optional)
Power
0kw
Place of Origin
Zhejiang, China
Brand Name
T&D
Model Number
FF6-1200
Dimension(L*W*H)
101*33*35+41*41*50cm(30L hopper)
Weight
50kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

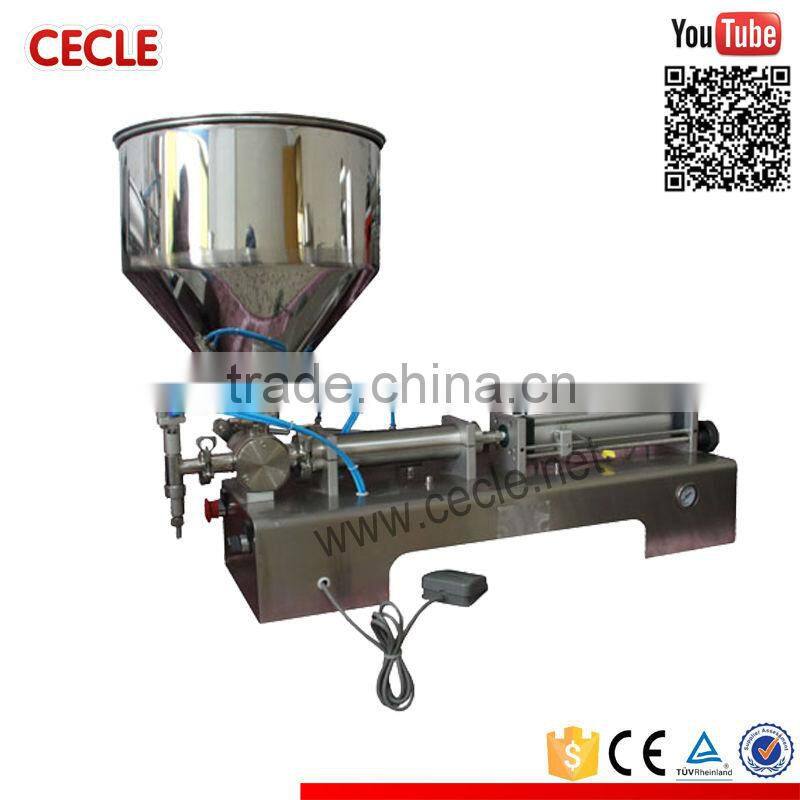

small syrup filling machine
FF6-1200
Product Description
Features
- Adopt Taiwan Airtac pneumatic components, full pneumatic drive does not need electrical power, simple operation, high filling precision;
- Use 304 stainless steel construction of material contact parts, optional 304 or 316 stainless steel;
- Stainless steel valve system design;
- Can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;
- Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations;
- Extremely easy to chean and maintain;
- Quick release nozzle and feed pipe;
- Small footprint for simple bench mounting;
- Optional type 10-150ml 20-300ml 50-600ml 200-1200ml 500-2600ml 1000-5000ml;
- Filling capita single head, two head;
- Conform to GMP;
Application:
- They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
- Typical application: Use for filling liquid and paste material, such as mineral water, cooking oils, juice, detergent, sauce, salad, butter & margarine, ketchup, jams, cream, honey, shampoos etc.
- Suitable for various packing such as bottle, jar, can, cup, bag, barrels, etc.
Note:
1, we can customize the special size according to customer's demands.
2, The machine disposition may make the choice.
Parameters:
| Model | FF6-150 | FF6-300 | FF6-600 | FF6-1200 | FF6-2600 | FF6-5000 |
| Filling range | 10-150ml | 20-300ml | 50-600ml | 200-1200ml | 500-2600ml | 1000-5000ml |
| Hopper volume | 30L | 30L | 30L | 30L | 80L | 80L |
| Air pressure range | 0.4~0.6mpa | |||||
| Filling speed | 25-60pcs/min | |||||
| Filling precision | 1% | |||||
| Dimension | 101*33*35+41*41*50cm(30L hopper)/121*40*40+54*54*54cm(80L hopper) | |||||
| Weight | 45-80kg | |||||

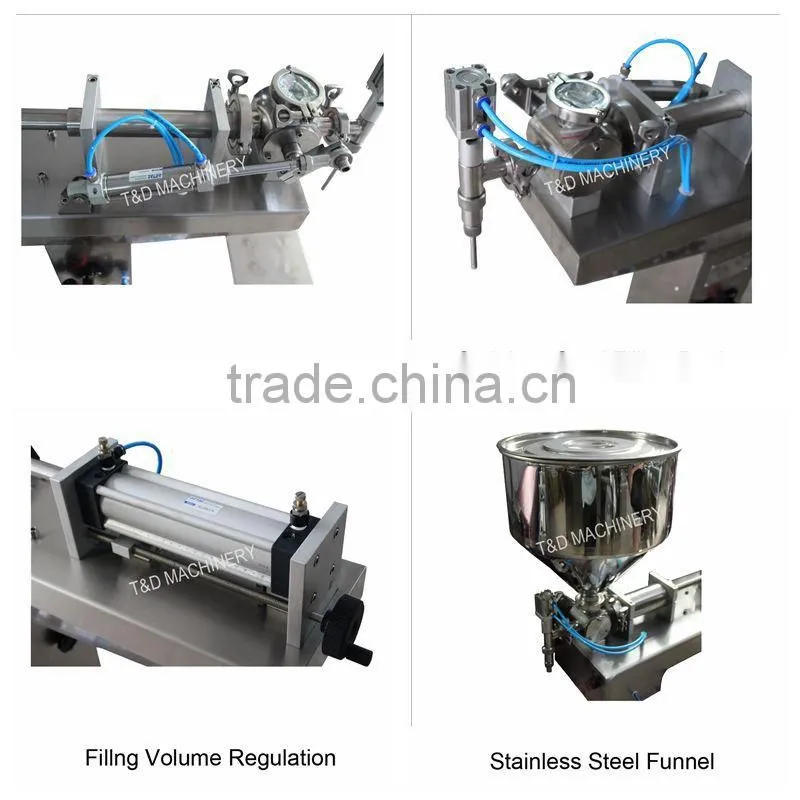

Details
Samples

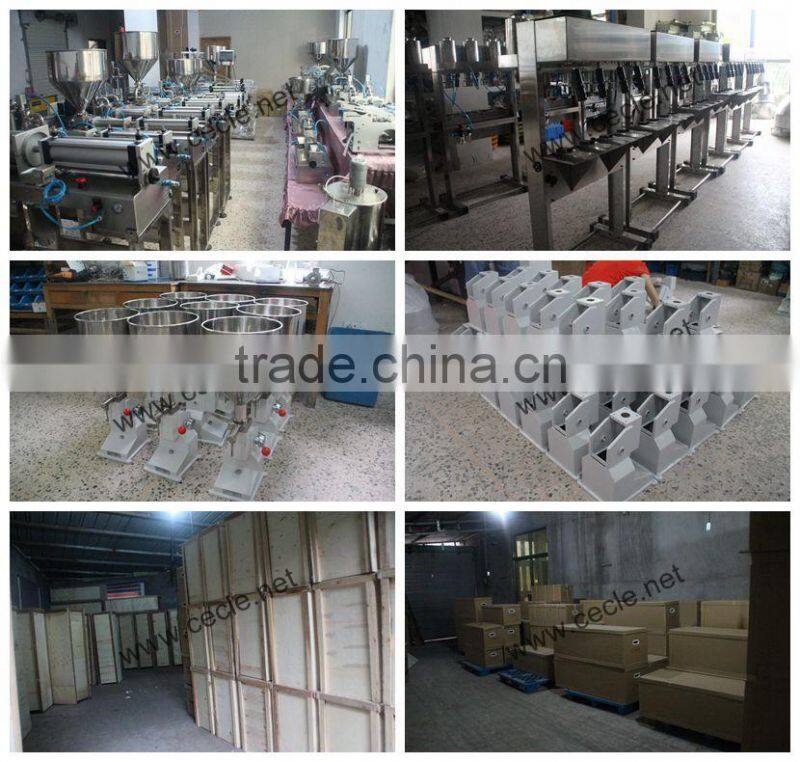

Company show
Packaging & Shipping
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
| Packaging details: | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods: | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Our Services
We are professional manufactory, produce in hot stamping machine, heat transfer machine, filling machine, packaging machine, etc. And we produces many types of this machine. We can provide OME/ODM service, we base our business on offering products and services that people want and need, as well as continuing to develop an innovative approach to marketing.
Quality guarantee:
1. Each machine is manufactured by our professional staff production and manufacturing;
2. Production process through strict supervision and review, use a lot of the high parts at home and abroad, to ensure good quality;
3. Use a lot of the food grade of 304 stainless steel to ensure food safety, can choose the material contact parts use 304 stainless steel or whole machine use;
4. The warranty time is one year. Under warranty, if is according to the introduction of the description of the use of case, any damage to the product, we will provide free maintenance service or free replacement, but need customer pay for the freight from China to local place. If you need our engineers to help, will be paid by customer of travel back and forth.
5. Outside the warranty period, we continue to provide lifetime maintenance services.
FAQ
1) Do you have manual or operation video for us to know more about the machine?
Answer: Yes, we will send the video link of the operating the machine to the customer, we have put all of the video on youtube website, convenience of our customers to see. After customers to buy the machine, we will configuration instructions in English to customer, together with the machine packaging.
2) If the machine some spare parts damaged, how to solve the problem?
Answer: Under warranty, first of all please send pictures or shoot video tell us machine damaged parts, after the two sides confirmed, we can send the spare parts of the machine to you for free, the freight shall be the responsibility of the buyer, or send to you with next order from us.
Any other question please feel free to contact, we will try to our best to help you.
