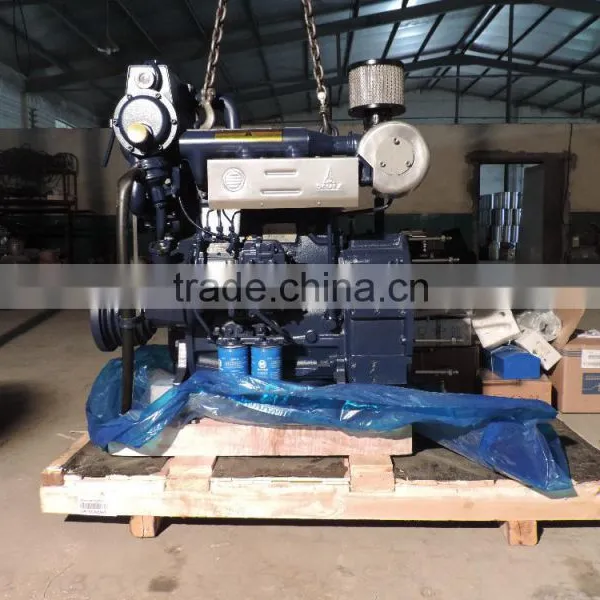

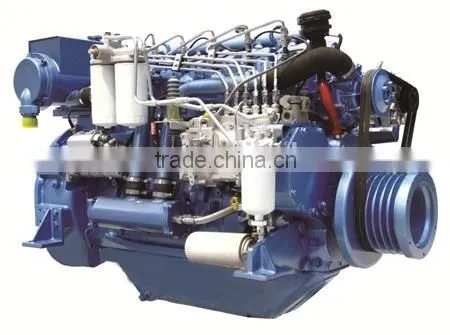

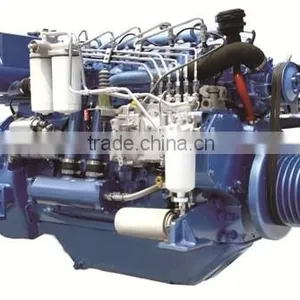

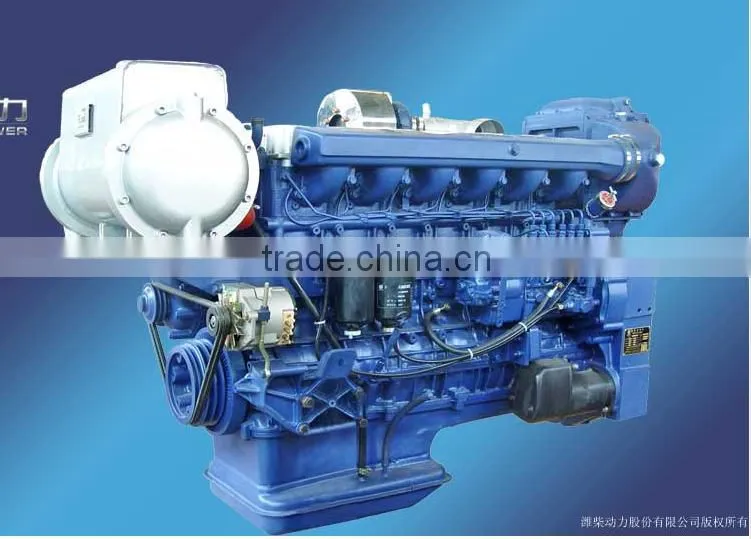

WEICHAI Inboard Boat Engine for Fishing Vessel
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Boat
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WEICHAI Marine Diesel Engine With Gearbox for BoatUS$ 3,000 - 20,000MOQ: 1 Set -
Wei Chai WD618 Series 250 hp Marine Diesel EngineUS$ 13,600 - 16,000MOQ: 1 Set
-
Continuious Power 200kw Marine Generator, Sea Water CoolingUS$ 4,000 - 30,000MOQ: 1 Set
-
Continuious Power 300kw Marine Use Diesel Generator, Sea Water CoolingUS$ 4,000 - 30,000MOQ: 1 Set
-
Continuious Power 300kw Marine Diesel Generator, Sea Water CoolingUS$ 4,000 - 30,000MOQ: 1 Set
Condition
New
Usage
Boat
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Multi-cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Shandong, China
Brand Name
WEICHAI
Model Number
WP6C
Certification
ISO/CE/CCS/ZY/BV
Warranty
1 year, 1year/1500 hours
After-sales Service Provided
Overseas service center available
Inboard Boat engine
Weichai CW200ZC/XCW200ZC series inboard boat engine is developed and manufactured based on researching techniques of medium speed engine both at home and abroad. It is characterized by rational construction, advanced performance index, reliable running operation and easy maintenance, etc. Its emission meets the requirements of MARPOL 73/78 of IMO (International Marine Origination).
The series of inbaord boat engine has passed through the type approval test of China Classification Society and Register of Fishing Vessel of PRC, got ISO9001:2000 system certificate. It is an optimum power source for passenger liner, fishing ship, ro-ro vessel and medium-small containership, and also used for generating set for ship.
| Engine Model | XCW6200ZC-2 |
| Rated output | 828KW/1126HP |
| Rated speed(r/min) | 1000 |
| Type | Water cooled, inline, 4-stroke, dry cylinder liner, direct injection, turbocharged, turbocharged inter-cooled |
| Num of cylinders | 6 |
| Bore/Stroke(mm) | 200/270 |
| Fuel consumption(g/kW.h) | ≤197 |
| Stable governing rate(%) | ≤5(mechanical) |
| Starting method | Gas motor starting |
| cooling method | Water cooled |
| Inlet method | turbocharged inter-cooled |
| Lubrication method | Pressure lubrication |
| Idle speed(r/min) | 400±50 |
| Smoke(Rb) | ≤1.0 |
| Displacement(L) | 50.892 |
| (dB(A)) Noise | ≤110 |
| Weight(Kg) | 6500 |
| Dimension(mm) | 2871x1258x2085 |
| oil sump capacity(L) | 185 |
| Flywheel turning ( facing flywheel ) | clockwise |
| Emission | Euro II |
| Gearbox Model | WHG1200 |
| Ratio | 3:1 |
