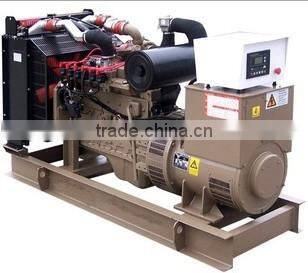

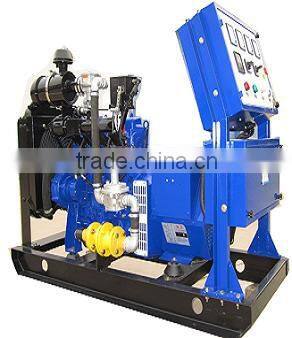

CE approved gas generator water cooled nature gas generator 20-1000kw
- 1200 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | U-POWER | Output Type: | AC Three Phase |
Speed: | 1500/1800rpm | Frequency: | 50/60HZ | Rated Power: | 200kw |
Rated Voltage: | 400/230v Optional |
Product Description
Main Technical Parameters of gas generator
Genset | |
Rated power (KW/KVA) | from 10kw/12.5kva to 500kw/625kva |
Rated current (A) | 10-900 |
Rated voltage (V) | 400/230 |
Rated frequency (HZ) | 50/60 |
Rated speed(r/min) | 1500/1800 |
Phases arrangement | 3Phase 4Wire |
Excitation method | Brushless |
Voltage regulation | AVR(Automatic Voltage Regulation) |

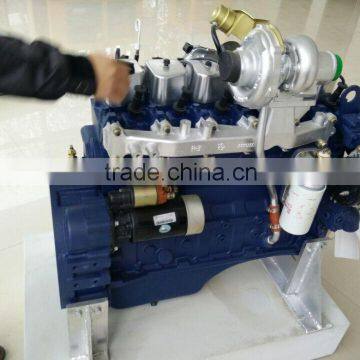

Gas Engine | |
Type | four stroke,ECU control high energy spark plug ignition, water cooled |
Cylinder No. and layout | 4/6/12 inline or Vee type |
Rated speed (r/min) | 1500/1800 |
Aspirated mode | Natural or turbocharge intercooled |
Speed regulation mode | Electronic governor |
Starting method | DC 24V Electrical starting |
Cooling method | Closed water cooling cycle |
Lubrication method | Pressure and splash lubricating |
Fuel consumption(Nm3/kw.h) | 0.6 (biogas), 0.3(natural gas) |
Alternator | |
Brand | Stamford or Marathon or Chinese brand |
Type | Pure copper brushless |
Rated power (KW/KVA) | from 10kw/12.5kva to 500kw/625kva |
Insulation class | H |
Protection class | IP22 |
Excitation mode | Brushless with AVR |
Control Panel | |
Function : 1. Adopt Gen-set controller with LCD display, taking microprocessor as the core. 2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity 3. The monitor and display on the voltage, current, frequency, active/apparent power, power factor of the generated electricity /grid electricity etc. 4. The monitor and display on the gen-set’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts 5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc. |

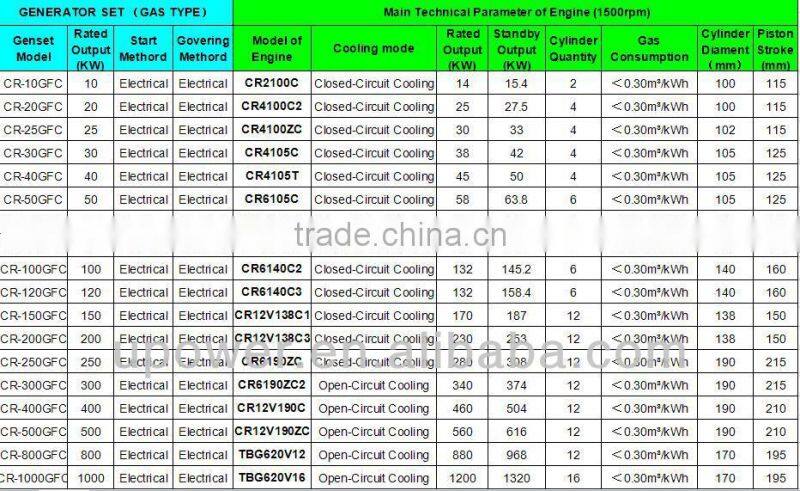

Main Technical Parameter
Show Details
Standard Configuration of Gas Generator:
1. New gas engine
2. Radiator 40°C max,fans are driven by belt,with safety guard
3. 24V charge alternator
4. New Alternator(Stamford or Marathon),single bearing, IP22-23, insulation class H,brushless
5. Steel frame base, shock absorber
6. Gas pressure regulator(MADAS,Italy),air and gas mixer(IMPCO,USA)

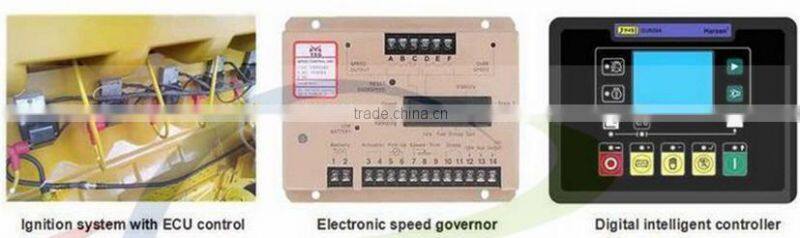

7. Electronic speed governor and actuator
8. Back-fire relief valve
9. Dry type air filter, oil filter
10.Main line circuit breaker
11.Digital automatic control panel
12.Emergency stop button
13.Two 12V batteries,rack and cable
14.Ripple flex exhaust pipe,exhaust siphon, flange, muffler
15.Spare parts and tools, User manual etc.
Optional Equipment :
1.Oil/coolant heater
2.ATS(Automatic Transfer Switch)
3.Soundproof canopy
4.Parallel system
5.Grid-connect system
6.CHP/Cogeneration

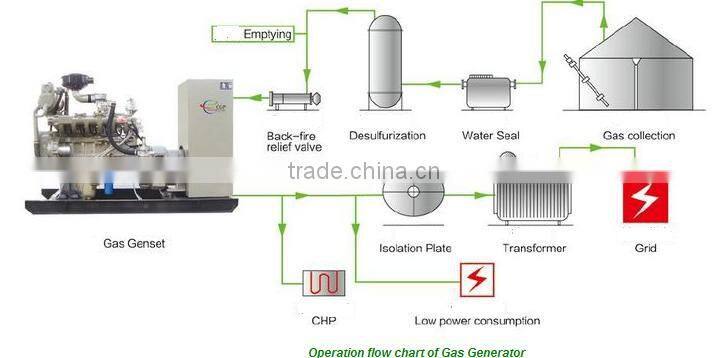

Gas powergeneration operating operation flow chart
