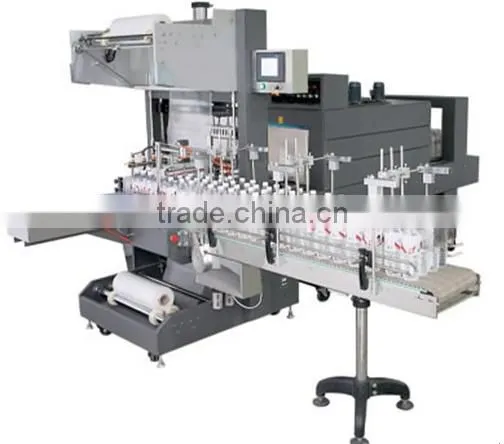

Bottles shrink packing machine
1. Perfectly used for drinking bottles, cans,beer, medical equipments wrapping.
2. To use with PE shrink tunnel, the shrink rate will be best.
3. Adopts Omron plc and the best AirTAC Cylinder, top quality.
4. Upper and lower sensing system, cutting safely.
| Model | QSJ5040A |
| Voltage | 220V 380V/50~60Hz three phases |
| Power | 3KW |
| Packing Speed | 0~10pcs/min |
| Working Air Pressure | 250L/min 0.4~0.6MPA |
| Film Width/Thickness | MAX590mm/0.03~0.25mm |
| Cutting Razor Length | 600mm |
| Max Packing Size | 420mm*300mm*350mm(L*W*H) |
| Min Packing Size | 250mm*50mm*100mm(L*W*H) |
| Machine Dimesion | 1060mm*1600mm*1930mm(L*W*H) |
| Conveying Table Size |
900mm*306mm*800mm(L*W*H) 1700mm*306mm*800mm(L*W*H) |
| Machine Weight | 370KG |
| Applicable Material | PE,PVC,POF,PP |

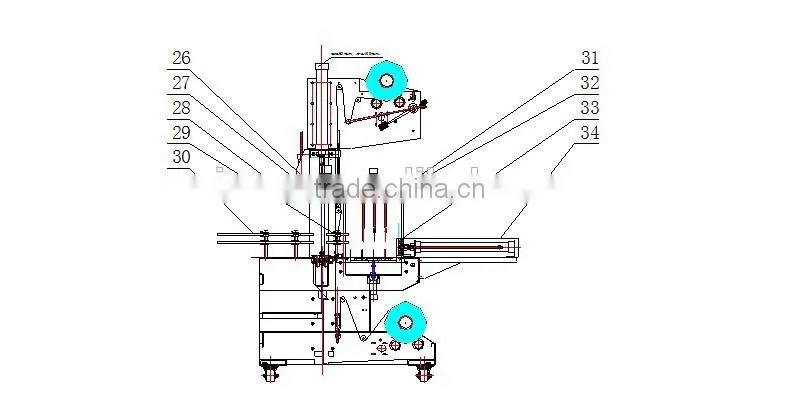

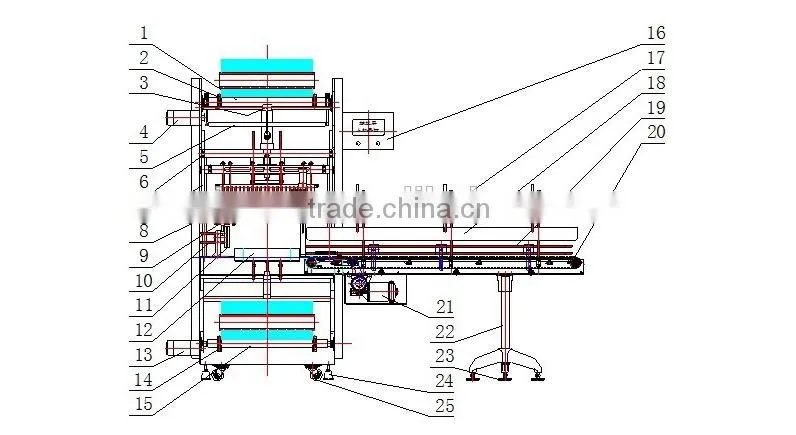

1. Up film feeding roller
2. Up film roller adjusting circle
3. Locking screw for balance
4.Up film feeding motor
5. Pushing film roller
6.Locking screw for adjusting pole
7.Adjusting pole for roller
8.Middle roller for protecting film
9.Adjusting block for sensor
10.Adjusting pole for move baffle
11.Move baffle
12.Move clapboard
13.Down film feeding motor
14.Down film roller adjusting circles
15.Down film feeding roller
16.PLC control board
17.Adjusting block for convey clamp board 18.Convey clamp board
19.Convey clamp stick
20. Convey belt
21.Convey motor
22. Stilt for convey station
23.Foot-tray for convey station
24. Foot-tray
25.Truckle
26. Silica gel strip
27.Adjusting block for straight-line pushing board
28.Straight-line pushing board
29.Clipping roller of front worktable
30. Clipping roller of rear worktable
31.Adjusting frame for small air-jar
32. Pushing board for small air-jar
33.Horizontal pushing board
34.Horizontal safeguard of air-jar
Wrapping Samples
About the plug and voltage
Please inform us the required voltage and plug you need before placing order.
We assume no liability or responsibility for the consequence of machine not working caused by wrong voltage or plug.
Thank you!
CE CERTIFICATES
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Shipping Port: Port of Ningbo
1. Each machine is manufactured by professional experienced staff.
5. We also offer PVC, PE films, stamping dies, hot foil papers etc.
Price governs while the quality is the same.
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality win and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
