240v ac 50hz Adapter Approved Different Plugs Can be Chosen Power Supply

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

182 series

Shenzhen Prosino Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 182 series

Output Type AC

Connection Plug In

Product Description

adapter features:

Input	Input range	100-240VAC(Full Range),50/60Hz
Input	input current(rms)	0.45A at 90VAC;0.2A at 364VAC max
Output	voltage range	DC 3-24V output
	voltage regulation	±5%@constant voltage mode
	current range	0.5-3.0A
	max power(Po)	18W Max
	Protection	over current protection over voltage protection short circuit protection
Environment protection	ROHS PAHS REACH
Environment protection	ROHS PAHS REACH
Energy Saving	CEC,DOE,MEPS Efficiency level V and Erp stage ll
Safty and EMC	CB,ETL/CETL,FCC,GS,CE,SAA,C-TICK/RCM,PSE,KC,CCC,ARGENTINA S-MARK,SASO
Environmental	Operation temperature	0℃ to+40℃ ambient
	storage temperature	-20℃to+80℃
	MTBF>25,000 HOURS AT 80% load and 25℃ ambient temperature
Weight	About 100g
Dimension	US:67.5X45.5X34.5MM
	EU:67.5X45.5X28.0MM
	UK:67.5X49.0X34.5MM
	AU:67.5X43.5X37.0MM

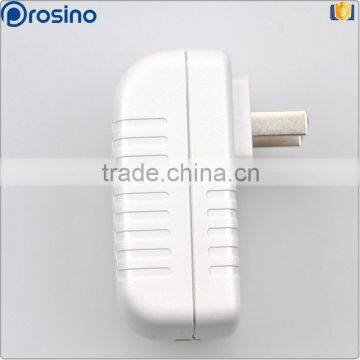

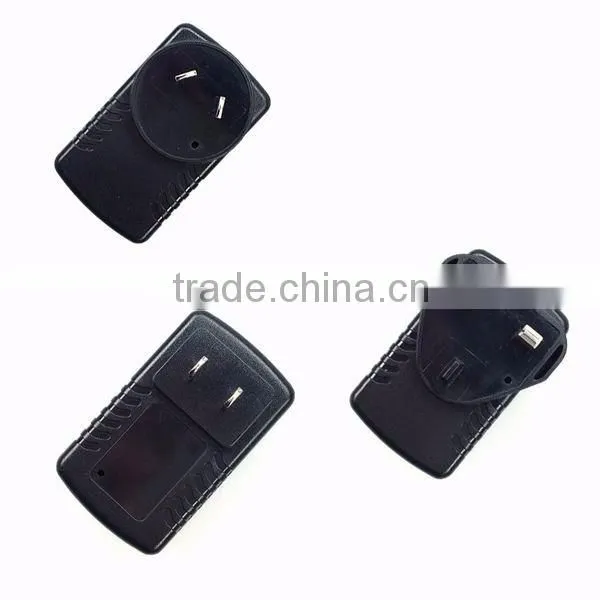

product photos:

Packaging & Shipping

Packaging Details:	ac dc power adapter for option 1).Packing with anti- static bags and sponge inside. 2).The package can be customized according to the requirement.
Delivery Detail:	3~5 working days

Our Services

Service : 14 months warranty

RMA : We always replace a new one or reduce the full cost to you in next order when we received the RMA shipment .
