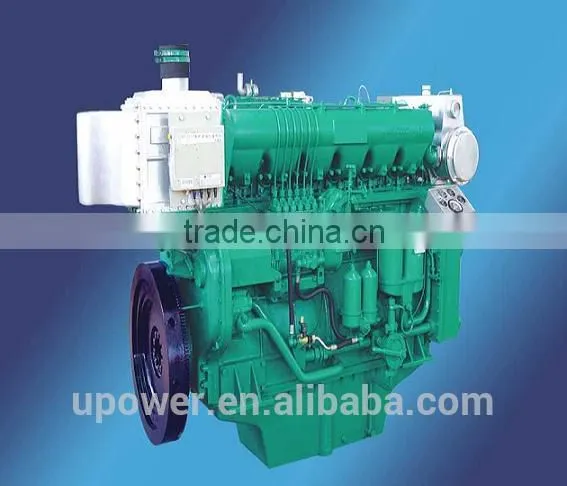

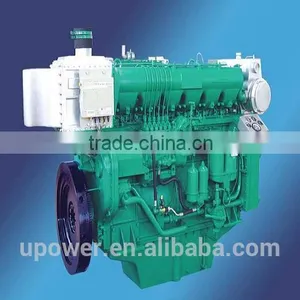

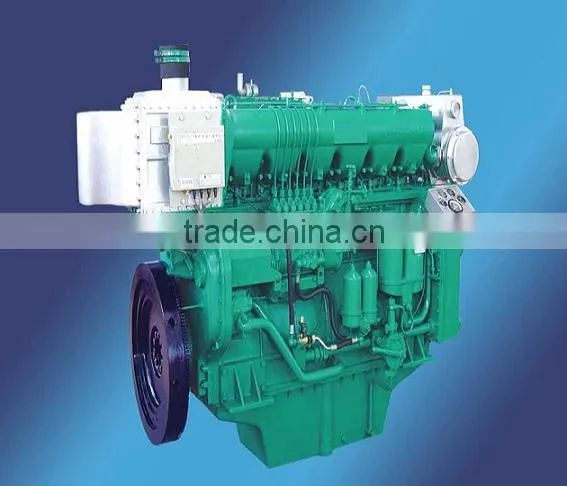

300KW Diesel Marine Engine R6160
Production Description
Based on 6160 series diesel engine, R6160 series middle speed marine diesel engine is an environmental product developed by Weichai through absorbing the world advance internal-combustion engine designing theory. It has the feature of combact structure, good economy, high reliability and easy maintenance, is an ideal power for inland navigation and fishing. Its displacement is 27.14L, and the power coverage is from 164kw to 360kw. It can meet IMO Tiler II emission standard with CCS and ZY certificates.
The application

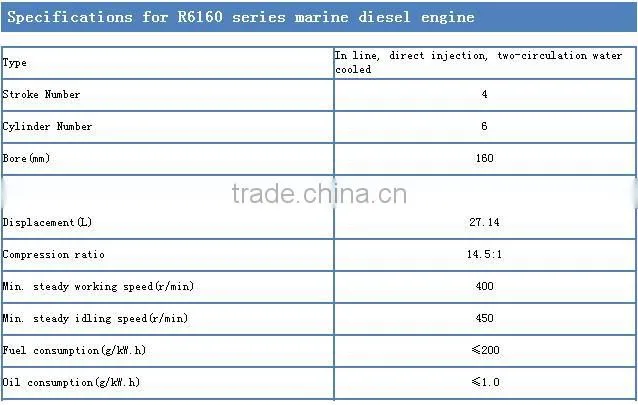

The Date Sheet
Item |
Unit |
engine type |
|||||
R6160 |
R6160 |
R6160 |
R6160 |
R6160 |
|||
intake mode |
turbocharged |
turbocharged and intercooled |
|||||
number of cylinders |
6 |
||||||
bore X stroke |
160×225 |
||||||
displacement |
L |
27.14 |
|||||
compression ratio |
14.5:1 |
||||||
rated power |
KW |
164 |
184 |
202 |
220 |
240 |
|
rated speed |
r/min |
850 |
850 |
850 |
850 |
850 |
|
min. fuel oil consumption |
g/(KW.h) |
205 |
|||||
fuel consumption @ rated power |
g/(KW.h) |
218 |
218 |
213 |
213 |
210 |
|
lub oil and fuel consumption ratio |
g/(KW.h) |
1.36 |
|||||
cooling mode |
sea and fresh water duel-circulation cooling system |
||||||
start mode |
electric start/air/both |
||||||
net weight |
kg |
3400 |
|||||
rotation direction of crankshaft (seen from the free end) |
clockwise |
||||||
dimension |
length |
mm |
2644 |
||||
width |
mm |
1134 |
|||||
height |
mm |
1768 |
|||||
Item |
Unit |
engine type |
|||||
R6160 |
R6160 |
R6160 |
R6160 |
R6160 |
|||
intake mode |
turbocharged |
turbocharged and intercooled |
|||||
number of cylinders |
6 |
||||||
bore X stroke |
160×225 |
||||||
displacement |
L |
27.14 |
|||||
compression ratio |
14.5:1 |
||||||
rated power |
KW |
164 |
184 |
202 |
220 |
255 |
|
rated speed |
r/min |
1000 |
1000 |
1000 |
1000 |
1000 |
|
min. fuel oil consumption |
g/(KW.h) |
205 |
|||||
fuel consumption @ rated power |
g/(KW.h) |
216 |
216 |
216 |
216 |
216 |
|
lub oil and fuel consumption ratio |
g/(KW.h) |
1.36 |
|||||
cooling mode |
sea and fresh water duel-circulation cooling system |
||||||
start mode |
electric start/air |
||||||
net weight |
kg |
3400 |
|||||
rotation direction of crankshaft (seen from the free end) |
counter clockwise |
||||||
dimension |
length |
mm |
2644 |
||||
width |
mm |
1134 |
|||||
height |
mm |
1768 |
|||||

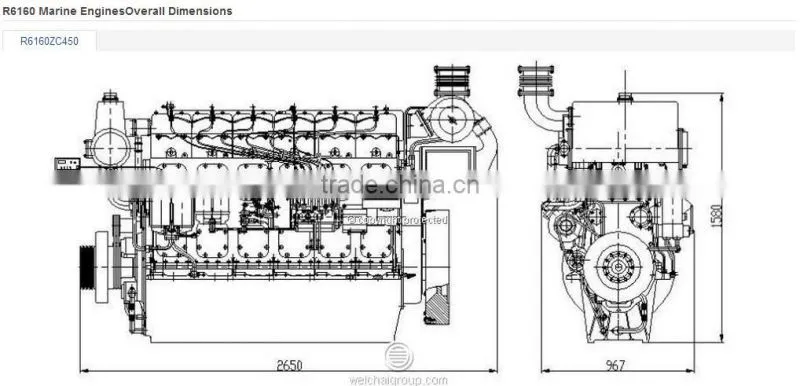

Overall Dimensions
The package
Our company--Weifang U-Power Co,.Ltd is one agent of Weichai Power.
You can get oversea after-sale service from WEICHAI oversea service center, and spare parts are availiable from our company.
