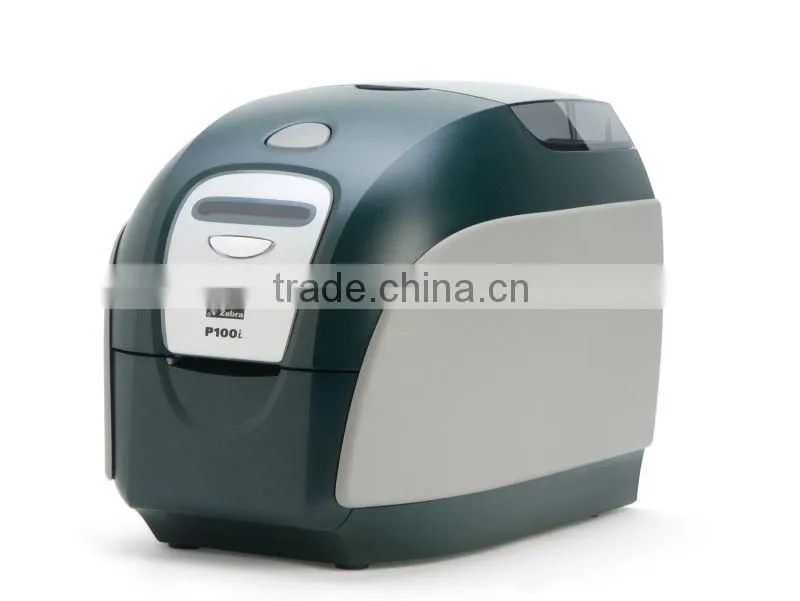

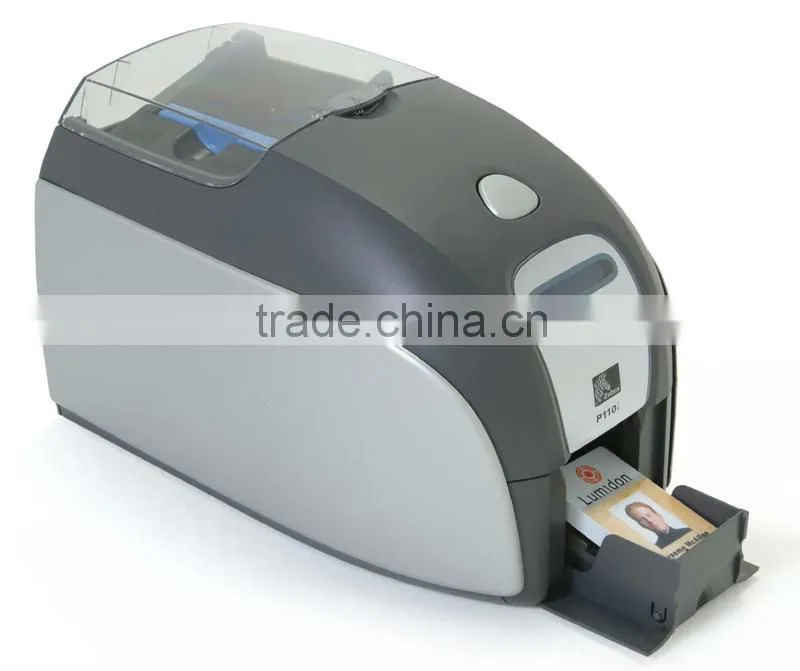

Help CenterZebra P100i Card Printers
Related Products
Specifications
card printers1.Covered card holder for up to 100 cards
2.16 character LCD operator display
card printers
Standard Features
- Zebra True Colours iSeries Load-N-Go drop-in ribbon cartridge with integrated card cleaning roller
- Covered card holder for up to 100 cards
- 16 character LCD operator display
More Standard Features
- Windows drivers: 2000, XP, Server 2003, Server 8, Vista, Windows 7
- 300 dpi (11.8 dots/mm) print resolution
- Two year printer warranty
- Two year original printhead warranty (unlimited passes)
Printer Specifications
Single or Dual-sided Printing: Single-sided
Color Capability: Full Color, Monochrome
Print Method: Direct-to-Card Dye Sublimation
Lamination: None
Card Feeder: Single Card Feeder
Card Feeder/Hopper Capacity: CardSense single-card feeder
Memory: 16 MB image memory (standard)
Print speed
- 35 seconds/card (full color, single-sided)
- 6 seconds/card (mono, single-sided)
Media Characteristics
Ribbons
- Zebra True Colours iSeries intelligent technology media
- Zebra True Colours iSeries Load-N-Go ribbon cartridge with integrated card cleaning roller
- YMCKO ribbon: 200 images/cartridge
- Monochrome ribbon: 1000 images/cartridge
Operating Characteristics
Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Electrical
- 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
- Ventilation: Free air
Agency approvals: FCC Class A, CE, UL, CUL approved
Physical Characteristics
Width: 7.9" (201 mm)
Height: 9.25" (23 mm)
Depth: 12.9" (328 mm)
Weight: 10 lbs (4.5 kg)
Related Products
Card Encoding Options
- Magnetic encoder 3 track HiCo/LoCo (30 mil cards only)
- Smart card contact encoder ISO 7816 (EMV compliant)
- MIFARE smart card contactless encoder
Options
- Built-in 10/100 Ethernet
- Starter Kit: 200 - 30 mil PVC cards and 1 YMCKO ribbon cartridge
- Extended warranty programs
- Hot swap warranty program (USA only)
Communication and Interface Capabilities
- USB 1.1 (USB 2.0 compliant) cable included (standard)
- Built-in 10/100 Ethernet (optional)
Bar Codes/Symbologies
Linear EAN-8 and EAN-13
2-D PDF 417
Code 128 B & C
Other Symbologies via Windows Driver
Code 39
Interleaved 2-of-5
UPC-A
Card Detail
Card Types
- PVC, PVC Composite
- Magnetic stripe ISO 7811
- Smart card contact and contactless (30 mil card only)
Card Size: CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Card Thickness: 20 - 40 mil
