WEICHAI Motorboat Engine for Boat Usage

WEICHAI Motorboat Engine for Boat Usage thumbnail-1
WEICHAI Motorboat Engine for Boat Usage thumbnail-2
WEICHAI Motorboat Engine for Boat Usage thumbnail-3
WEICHAI Motorboat Engine for Boat Usage photo-1
WEICHAI Motorboat Engine for Boat Usage photo-2
WEICHAI Motorboat Engine for Boat Usage photo-3
US$ 3,600 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
4.1 - 5L
Contact Supplier Request Quote Chat Now
Weifang U-Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Engine Capacity 4.1 - 5L
Fuel Type Diesel
Cylinders 4
Engine Position Inboard
Dimensions (L x W x H) (mm) 1065*744*856

                                                   Main technical data of Motorboat engine



Model of engine

motorboat engine D226B-3C1

Rated power(HP)

48HP

Speed(rpm)

1800

Type

Four stroke, water cooled, in-line, wet cylinder liner

Number and layout of cylinders

3 cylinders,

Bore(mm)

105

Stroke(mm)

120

Total displacement

3.12L

Fuel consumption

198 g/kW.h

Specific oil consumption

1.0 g/kW.h

Direction of rotation (facing to end)

Clockwise

Emission standards:

IMO TIER II

Noise:

<105dB(A)

Starting way: electric starter

Electric starter

Idle speed (R/MIN) :

650±30

The smoke (Rb)

< 2.0

Overall dimension L×B×H(mm)

1065*856*744





















































Product Description

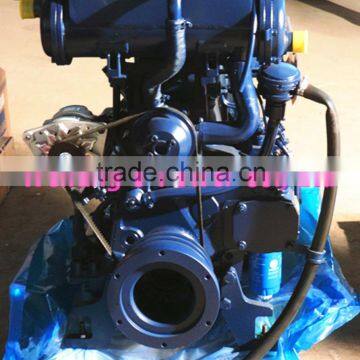

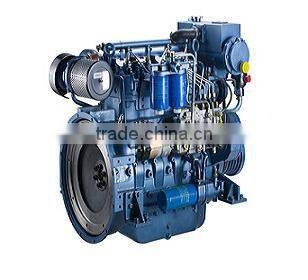

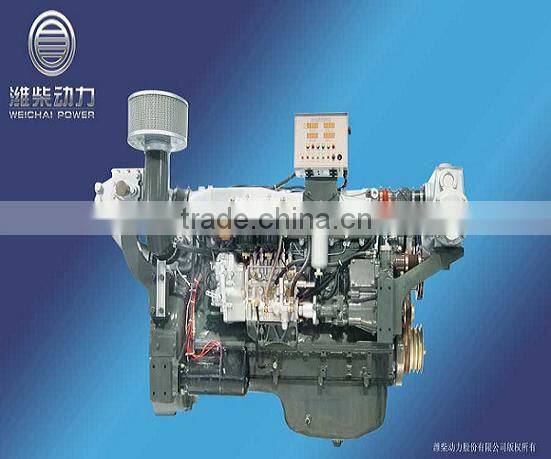

 Reference picture of motorboat engine:

WEICHAI motorboat engine for boat usageWEICHAI motorboat engine for boat usage

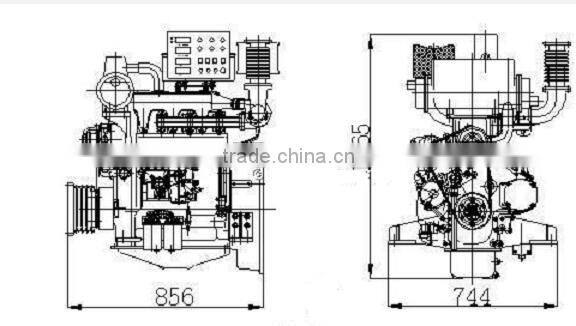

                                 motorboat engine overall dimensions

WEICHAI motorboat engine for boat usage

Motorboat engine Detail Display

 WEICHAI motorboat engine for boat usageWEICHAI motorboat engine for boat usage  WEICHAI motorboat engine for boat usage

    (1)Engine Block                             (2) Cylinder Head                 (3) Crankshaft



WEICHAI motorboat engine for boat usageWEICHAI motorboat engine for boat usage  WEICHAI motorboat engine for boat usage

       (4) Flywheel                   (5)Front and Rear Cover          (6)Other Casting Parts

 Accessaries

a.Flywheel shell: SAE 1;

b.Pulley: different number of reserved slots (4,6), can bring flange;

c.Start Mode: electric start/gas start/electric and gas dual-start(optional);

d.Governor: Mechanical governor;

e.Fuel stop solenoid valve: Optional

f.Parking electromagnet: Optional

g.Sea water pump: Optional

h.Remote meter and transmission lines:Optional . remote control devices /remote display devices,

  different lengths of transmission line.

Company Information



WEICHAI motorboat engine for boat usageWEICHAI motorboat engine for boat usage

FAQ



1. Q: What rated power(kW/HP) you need?

    A:  40kW, 50kW, 60kW, 90kW,110kW, 120kW and so on.

2. Q: Emission standard is what?
    A: IMO TIER II

3.Q:After-sale is that?
   A:Global Warranty for one year/1500hrs

4.Q:Your marine engine brand from Germany
   A: Our marine engines are produced by WEICHAI
