| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 5IPS (127 mm/s) |
| Print Width | 4.25" (108 mm) |
| Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor. Fixed transmissive sensor, central aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.0024” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5”, 3" (25.4 mm, 38.1 mm, 76.2 mm) |

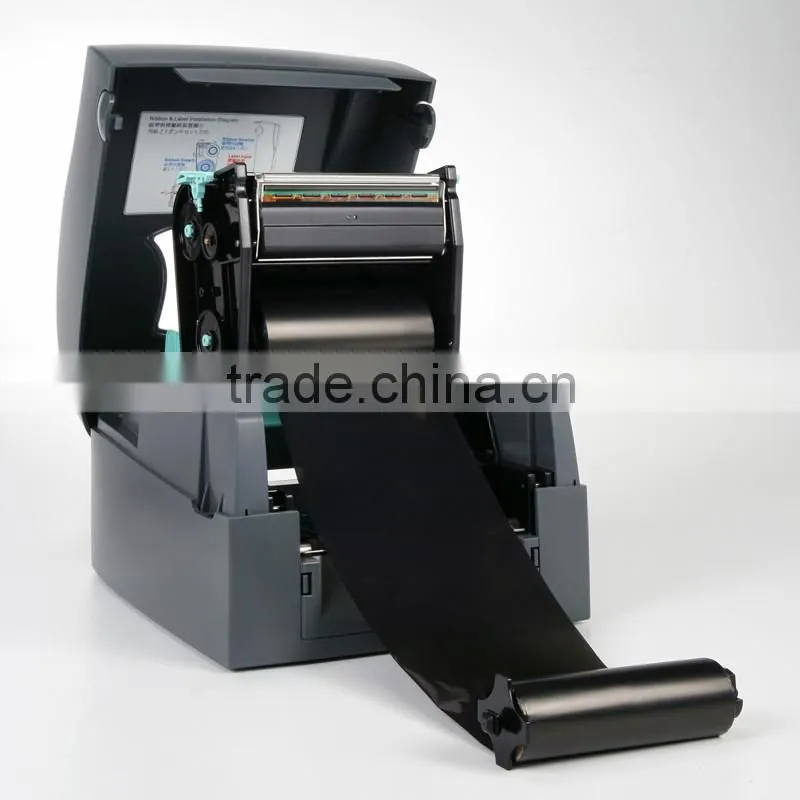

| Ribbon | Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label design software: GoLabel (for EZPL only) Driver: MAC , Linux Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts:CG Triumvirate™ (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90,180,270, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8, UTF16BE, UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB + Parallel Port USB + Serial Port + Ethernet |
| Control Panel | Two bi-color status-LEDs: Ready, Status Control key: FEED |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimension | Length: 11.2” (285 mm) Height: 6.8” (171 mm) Width: 8.9” (226 mm) |
| Weight | 6 lbs (2.72Kg) ,excluding consumables |

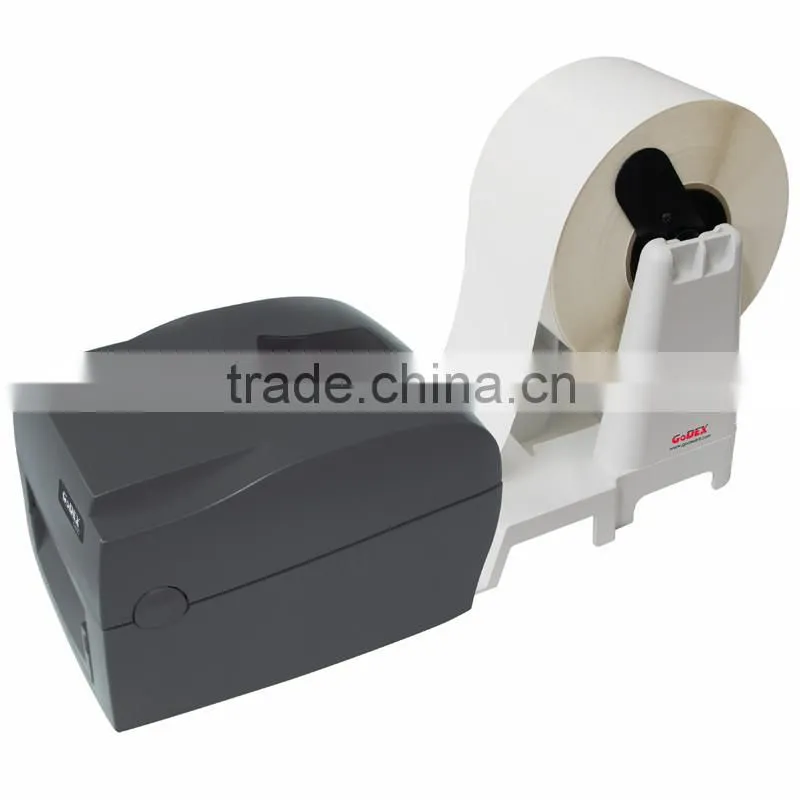

| Options | Cutter Module Label Dispenser External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
