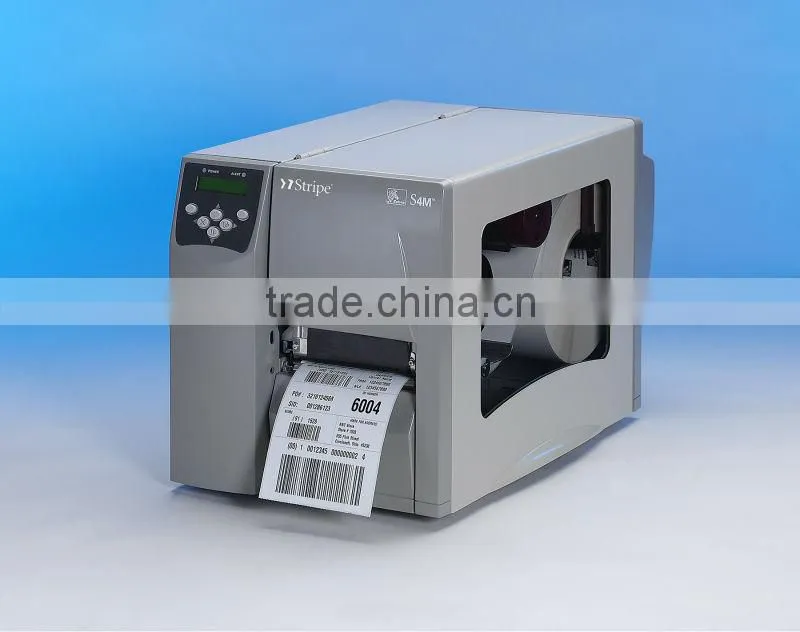

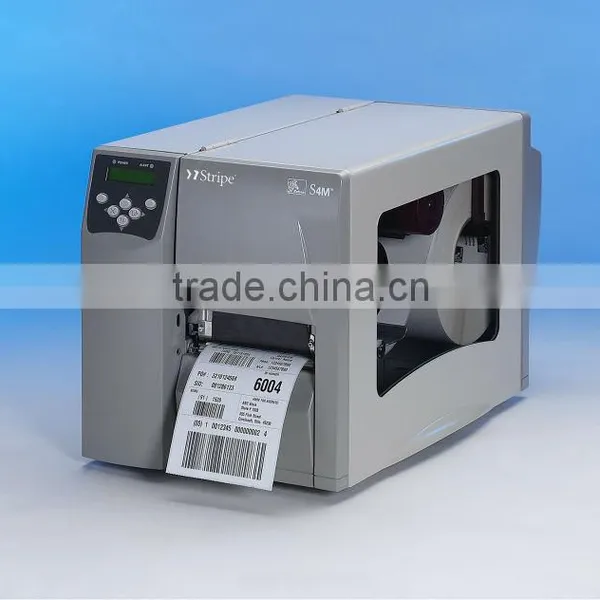

Zebra S4M barcode printer/S4M Industrial Printers

More Standard Features

• Element Energy Equalizer™ (E3®) for superior print quality
• Back-lit LCD control panel
• Parallel, USB 1.1 and RS-232 serial ports
• Unicode™ - Compliant

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory: 4MB Flash, 8MB DRAM
Print width: 4.09"/104 mm
Print length: 203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional)
Print speed: 203 dpi:
6" (152 mm)/sec
300 dpi:
6" (152 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 0.75"/19.4 mm to 4.50"/114 mm
Minimum label and liner width: 0.75" (19.4 mm)
Maximum label and liner length: Maximum non-continuous: 39"/991 mm
Maximum label and liner length (optional): 39" (991 mm)
Core diameter: 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core
Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm
Media types: continuous, die-cut, tag, black mark

Ribbon Characteristics

Outside diameter: 3.2"/81.3 mm
Standard length: 984'/300 m or 1476'/450 m
Ratio: 2:1 media roll to ribbon ratio for 984'/300 m
3:1 media roll ribbon ratio for 1476'/450 m
Ribbon width: 1.57"/40 mm to 4.33"/110 mm
Ribbon setup: Ribbon wound ink-side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing
Storage humidity: 5% to 85% non-condensing
Electrical: Universal auto-ranging (PFC-complaint) power supply 90-265VAC, 48-62 Hz
Agency approvals

• IEC 60950
• EN 55022 Class B
• EN55024
• EN 61000-3-2
• EN 61000-3-3

Physical Characteristics

Width: 10.7"/272 mm
Height: 11.6" (295 mm)
Depth: 18.8" (477 mm)
Weight: 27.2 lbs (12.4 kg)
Shipping weight: 33.5 lbs (15.2 kg)

Related Products

Options

• Thermal Transfer Ribbon Handling System
• Print head 300 dpi (12 dots/mm) (ZPL Only)
• A front mount, passive peel, w/ no take-up spindle
• Factory installed 64 MB (61 MB user available) Flash Memory option
• Additional scalable and smooth bitmapped fonts available
• ZebraNet 10/100 Print Server
• Keyboard Display Unit (KDU) (EPL only)
• Real Time Clock (RTC)
• APL-I/APL-D firmware (contact Zebra Development Services for additional details)
• Factory installed full-width guillotine knife cutter and catch tray
• ZebraNet Wireless Plus Print Server
• ZebraNet 10/100 Print Server
• ZebraNet b/g Print Server

Communication and Interface Capabilities

• RS-232 serial port
• USB 1.1
• Parallel
• ZebraNet Wireless Plus Print Server
• ZebraNet b/g Print Server
• ZebraNet 10/100 Print Server

Programming Languages

Core programming languages: EPL-Page Mode, ZPL I/ZPL II

Bar Codes/Symbologies

Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC-A with 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
Planet Code
RSS (reduced space symbology)
2-dimensional Codablock
Code 49
Data Matrix
MaxiCode
QR Code
MicroPDF417
TLC 39
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics

• 7 bitmapped, 1 smooth scalable (CG Triumvirate™ Bold Condensed)
• International character sets supporting the following code page: IBM® Code Page 850 International character set
• Support user-defined fonts and graphics – including custom logos
• ZPL II drawing commands – including boxes and lines
  (ZPL only, other firmware languages may vary)
