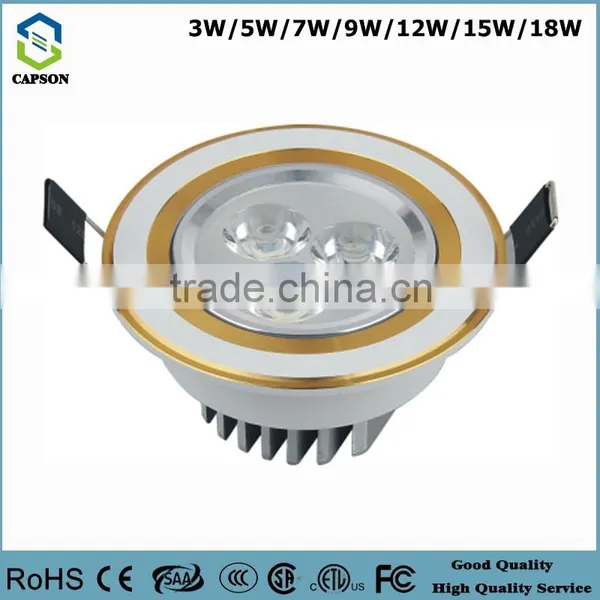

Help Center2 Years Warranty Dimmable 3W Downlighting LED Surface Mounted Celing Light Fixtures China
Related Products
-
2016 New Products Led Drop Ceiling Lighting Fixture 9w Home Ceiling LampUS$ 3 - 4.8MOQ: 100 Pieces -
High Bright RGB LED Ceiling Light Fixture 3W Ceiling LampUS$ 1.8 - 3MOQ: 100 Pieces
-
Wholesale New Panel Led Celing Light 3w/5w/7w/9w /12w/18w Led Down Lighting CE ROHSUS$ 7 - 9MOQ: 100 Cartons
-
NEW Products Downlight 15w 3inch/5inch/6inch Round Recessed Led Ceiling LampUS$ 8 - 15MOQ: 100 Pieces
-
2years Down Light 10W COB Ceiling Led LampUS$ 7.5 - 14.2MOQ: 100 Pieces
| Model | CS-THD-003-3W |

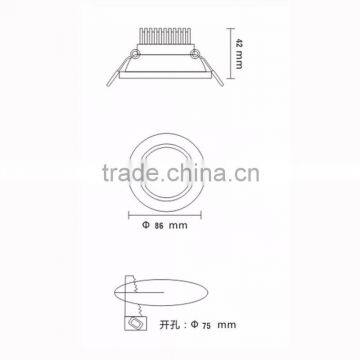

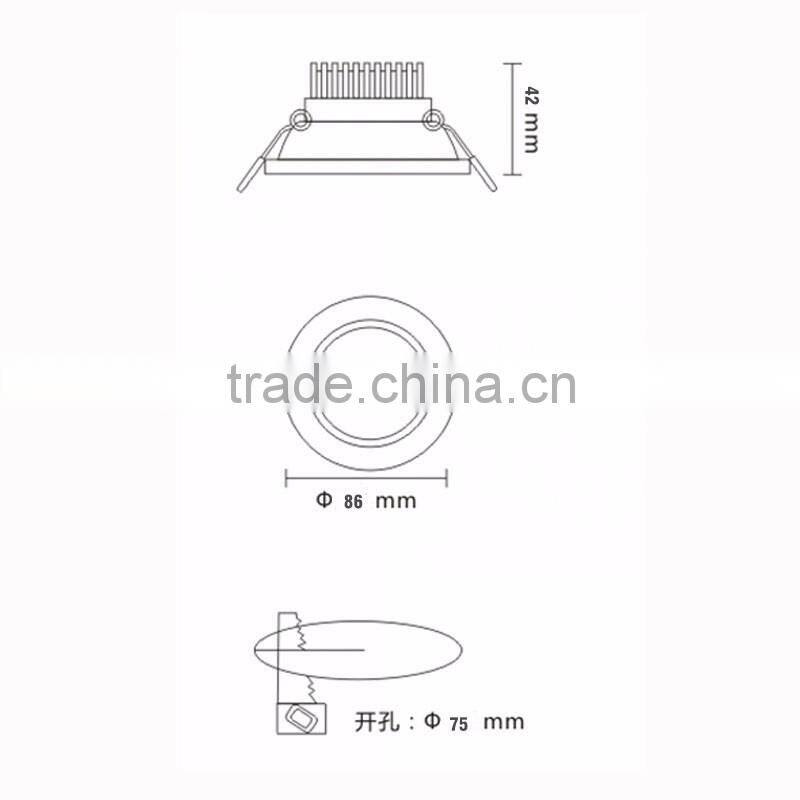

| Dimension | D86*H42mm |
| Hole size | D75mm |
| Power | 3W |
| Luminous flux | ≥300lm |
| Lamp efficiency | 90-100lm/w |
| Light source | Sanan'/Epistar/Bridgelux LEDs or Customized |
| Light degradation rate | 25000h ≤ 30% |
| Color rendering index | Ra>82 |
| Power factor | PF≥0.96 |
| Beam angle | 30 °/45 °/60°Both available |
| Rated life | ≥50000h |
| Color temperature | ≥2700-6500KB |
| Working temperature | -30~+50°C |
| Input wattage | AC90-260V |
| IP code | IP33 |
| Brand | ALLTOP & Customized |
| Warranty | 3 years |
| Certificate | CE, ROHS, SAA,TUV, EMC, LVD,UL,VDE |
| Application | Applicable to all building lighting |
| Payment terms | By T.T, Western Union, L/C, etc |
| MOQ | 1pcs |
|
Product features: 1 simple and beautiful appearance, convenient installation; 2 high purity aluminum die-casting, good heat dissipation effect, strong light transmittance; 3 vacuum coating reflector, light effect is good, light transmission rate is strong; 4 imported 5730SMD lamp, light uniformity, high display; 5 widely used in shopping malls, hotels, office buildings and other places, is the ideal alternative product of the traditional lamp. We also make customized products, any question, don't hesitate to contact us | |
| Technical Parameters | ||||||||
| Model | Voltage | Power | Lamp size | Hole Size | Color Temperature | Beam Angle | CRI | CRISurface Color |
| CS-THD-003 | AC85~265V | 3W | D86*H42mm | D75mm | 2700~6500K | 30°45°60° | Ra≥80 |
White+ Silver+Two Gold/ White+Black+Two Glod |
| CS-THD-003 | AC85~265V | 5W/7W | D110*H43mm | D95mm | 2700~6500K | 30°45°60° | Ra≥80 | |
| CS-THD-003 | AC85~265V | 9W/12W | D140*H43mm | D120mm | 2700~6500K | 30°45°60° | Ra≥80 | |
| CS-THD-003 | AC85~265V | 15W/18W | D160*H65mm | D140mm | 2700~6500K | 30°45°60° | Ra≥80 | |
1.What is your main product line is made?
We mainly produce LED down light, LED floodlight, LED high bay light, LED street light, LED canopy light, LED panel lights, LED ceiling lamps, LED tube light, LED bulb, LED strip light, LED decoration lights and more
2. Your factory or trading company?
We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
3. Do you have a special price and service for wholesale?
Capson Lighting LED is keeping search a long term business cooperation with our clients, As a professional led lighting manufacturer, we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.
