PP carton automatic portable strapping machine manual

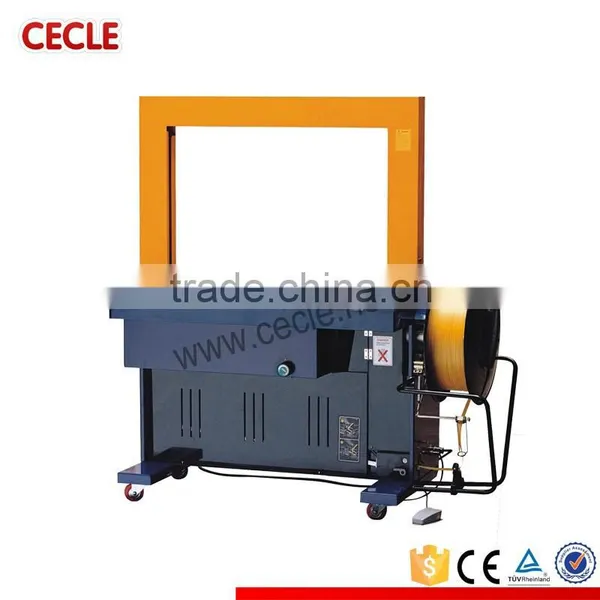

[1] Full automatic strapping machine
| Model | AP8060 | AP8060B | AP8060C | AP8060L | AP120A | AP12040C | WG-22XN |
| Voltage | 380V/50~60Hz | ||||||
| Drive | Electric | ||||||
| Applies | Carton box, case strapping with PP band. | ||||||
| Speed | 2.18Sec./Strap | 1.8Sec./Strap | 2.18Sec./Strap | 2.Sec./Strap | |||
| Power | 0.5KVA | 0.7KVA | 0.9KVA | 0.5KVA | 0.9KVA | 0.85KVA | |
| Applied Strip Width | 9,12,15mm | 8~15mm | 9,12,15mm | 8~19mm | |||
| Tension | 40~600N | 100~600N | 40~700N | 40~600N | |||
| Weight | 180KG | 200KG | 220KG | 250KG | 280KG | 280KG | 250KG |
| Dimension | 1100×600×1540mm | 1100×600×1540mm | 1120×630×1540mm | 1580×560×1410mm | 1500×600×2140mm | 1500×630×1340mm | 1410×600×1540mm |

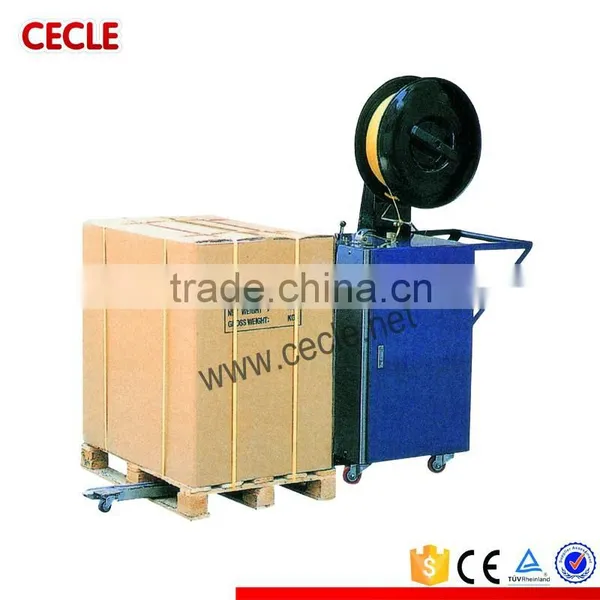

[2] Semi automatic strapping machine
| Model | KZB-I | KZB-II | SM-06L | SM-06T | SM06-H |
| Voltage | 110V220-240V/50-60Hz | ||||
| Drive | Electric | ||||
| Applies | Carton box, cases, pallet strapping | ||||
| Speed | 1.8Sec./Strap | 0.53 Sec./Strap | |||
| Power | 0.34KVA | 0.2KVA | |||
| Applied Strip Width | 6~15mm | 5~15mm | |||
| Tension | 40~480N | 40~400N | |||
| Weight | 85KG | 80KG | 62KG | 65KG | 67KG |
| Dimension | 836×560×725mm | 1410×560×505mm | 1360×546×590mm | 806×546×750mm | 806×546×750mm |
Features and Advantages
1. Stable quality, durable material,and easy maintenance.
2. Special design-control PP strap cooling time. It can make the PP strap to fasten well in any time.
3. Electricity-Saving: the motor automatically stops running at once after one circle strap to reduce the normal wear and to prolong the machine life.
4. Non-Fast heater plate, it will increase the work efficiency.
5. The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
6. Installing an auxiliary feed/reset switch and tension adjust switch at the control panel makes you operate more conveniently.
About the plug and voltage
Please inform us the required voltage and plug you need before placing order.
We assume no liability or responsibility for the consequence of machine not working caused by wrong voltage or plug.
Thank you!
The marked FOB price range is adjustable. For a specific price, please contact us by clicking "Contact supplier" with which you may inform us your requirements.

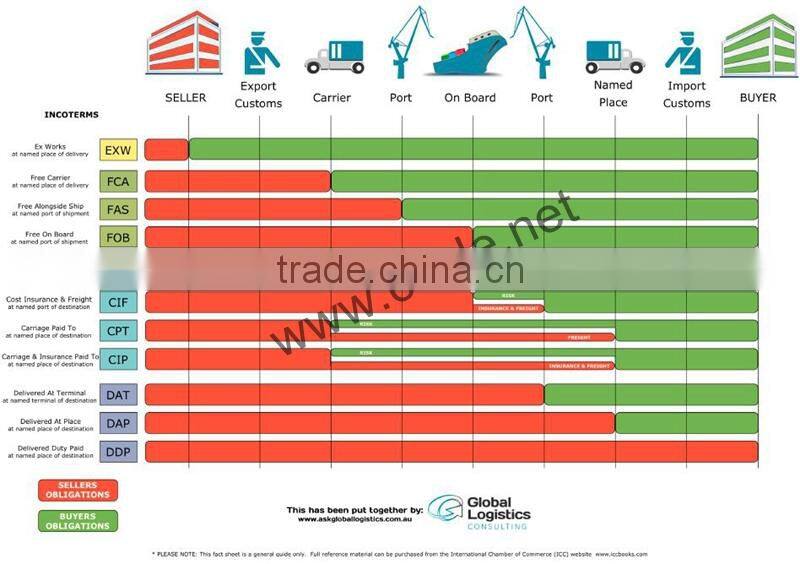

We accept EXW, FOB, CIF in most time.
If you have any agent or factory in China, we can deliver goods there!
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Shipping Port: Port of Ningbo
1. Each machine is manufactured by professional experienced staff.
5. We also offer PVC, PE films, stamping dies, hot foil papers etc.
Price governs while the quality is the same.
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality win and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
