Roll inner diameter MIN 25mm direct thermal YHDAA Commercial Label Barcode PrinterS |
1.Product specifications
XP360B is new barcode printer in 2015Y, Printing speed can be up to 127mm/s, Support QR Code printing,
Support paper roll, sticker, adhesive sticker, etc. Support label paper auto detection.
- Min 50.8mm/s,Max 127mm/s
- Built-in power supply
- Memory: DRAM: 4M, NV FLASH: 4M
- Suppotr PDF417, QR CODE, DATMATRIX
- Support to modify IP address through browser
- 100MB Ethernet interface connection
Printing | |
Printing method |
Direct thermal |
Resolution |
203DPI |
Print width |
76mm |
Printing speed |
MAX:127mm/s; MIN:50.8mm/s |
Memory |
DRAM:4M FLASH:4M |
Print head temperature |
Thermal sensitive resistance |
Paper exists detection |
Photosensor |
Interface |
USB |
Character size |
ANK,Font A:1.5*3.0mm(12*24 dots) Font B:1.1*2.1mm(9*17 dots) Chinese,traditional Chinese:.0*3.0mm(24*24 dots) |
Barcode Character | |
Barcode |
CODE128,EAN128,ITF,CODE39,CODE93,EAN13,EAN13+2,EAN13+5,EAN8,EAN8+2, EAN8+5,CODABAR,POSTNE,UPC-A,UPCA+2,UPCA+5,UPC-E,UPCE+2,UPCE+5, CPOST,MSI,MSIC,PLESSEY,ITF14,EAN14 |
Internal font |
FONT 0 to FONT 8 |
Enlargement & rotation |
(0°,90°,270°,360°)1 to 10 times enlargement in both direction; 0°,90°,270°,360° rotation |
Image |
Monochromatic PCX,BMP image files can be load to FLASH,DRAM |
Media type | |
Paper type |
Paper roll,sticker,adhesive sticker,etc |
Paper width |
20mm~82mm |
Roll external |
MAX 100mm |
Roll inner diameter |
MIN 25mm |
Paper off type |
Peel off |
Power | |
Power supply input |
24VDC, 2.5A |
Physical characteristics | |
Weight |
1.42KG |
Dimensions |
212.4(D)*143(W)*145.5(H)mm |
Environmental Requirements | |
Work environment |
5~45°c, 20-80%RH(no condensation) |
Storage environment |
-40~55°c,≤93%RH(40°c) |

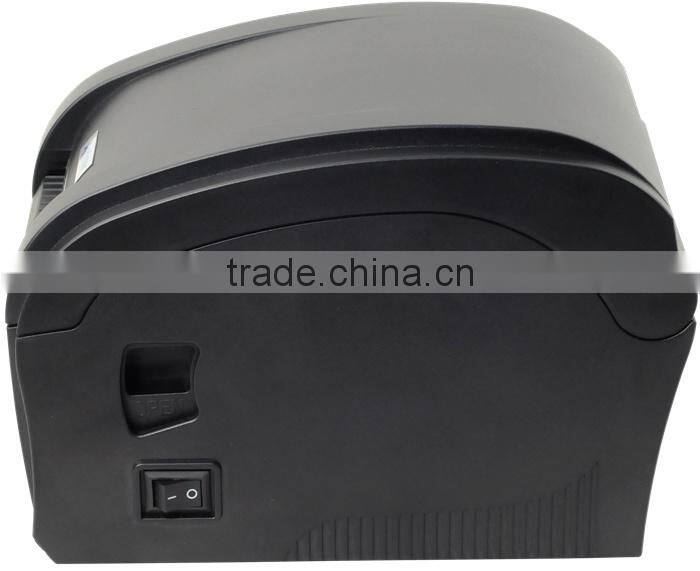

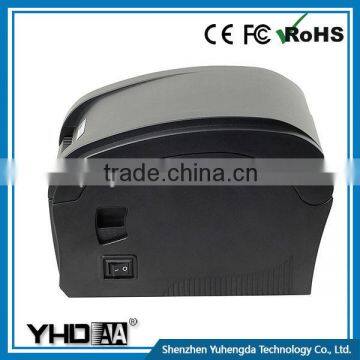

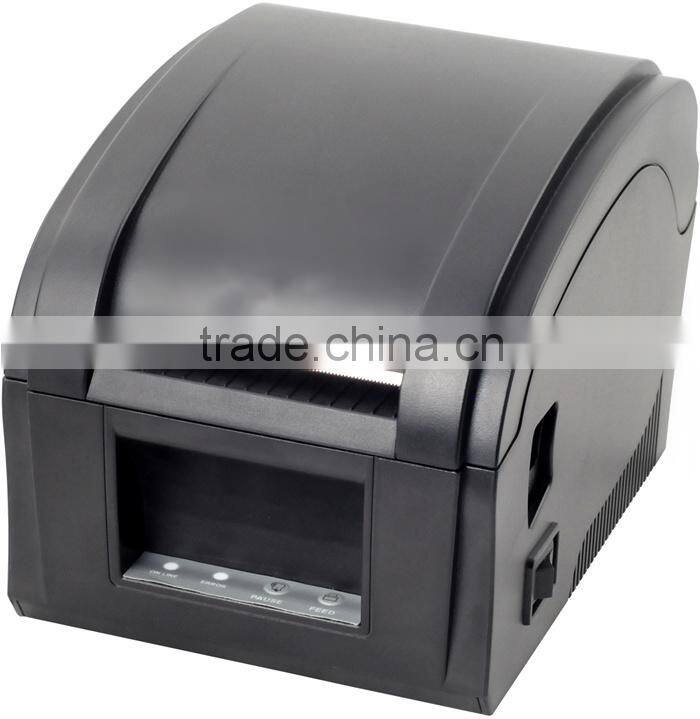

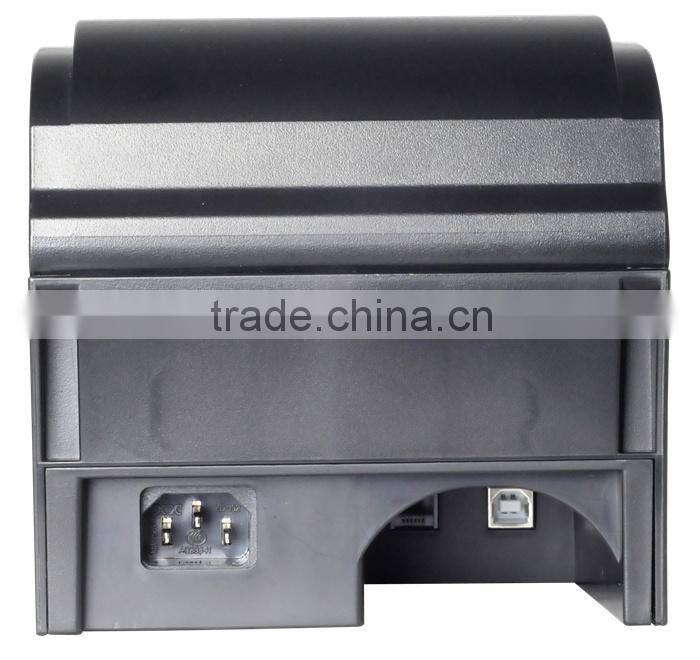

2.Product pictures
3.More product for you to choose
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent
marketing team who specialized in the field for many years,our Technology department,engineering department,
sales department has a strong ability in design,development and production that can meet your any require-
ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded,we regard the customer demand as the core idea,and to lead the industry trend as
own duty,focusing on the innovation of the code bar scanner .with high performance products and attentive
service provided, we has won the trust and praise of our customers, which has put up a good brand image in
such field.
Company not only provides the high quality product but also established a perfect after-sales Service system.
Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and
pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,
it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material , mould ,equipment
adjustment, parameter setting and cost accounting which customer selected. Our advantage products are :
Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The
new products technical updating and transformation is due to the continuous improving the level of technology
and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled
with technology and production management.Company has set up R&D Technology group, Production
department, Quality department and aging laboratory etc that covering the whole system of barcode scanner
technology research and development, it laid a solid foundation for the continuous developent of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and
production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode scanner products. However, our company expand the scale and products categories
through continuous technical innovation and products structure adjustment. The current production types are
barcode scanner, barcode printer, POS printer, Magneitc card reader etc, which become one of consider-
able scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
5.Contacts
