Specifications
heavy duty racking1.materisl :Q235
2.Origin:shanghai
3.3 layers
4.2000kg/layer loading capacity

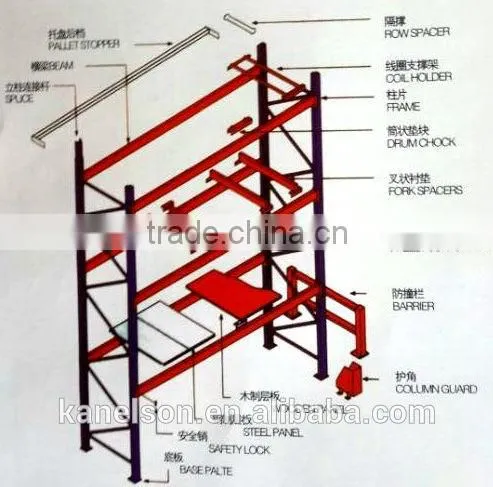

Heavy Duty Racking
Our Heavy Duty Racking is a most useful and cost-effective storage rack system providing direct access to all pallets. It provides high capacity storage, is easy to install and adjust.
It is designed to meet almost all pallet sizes or weight and suitable to be used with all types of lift trucks. A wide range of protection accessories is available, such as corner guards, column protector, back mesh, pallet support bar, etc. making storing a lot more safer.
Heavy Duty Racking Advantages:
Versatility and flexibility to meet any storage needs:
1) Pallets can be located, accessed and moved individually.
2) Infinitely adjustable and offering a wide range of options and components.
3) Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
4) Strength and rigidity prevents compression damage to goods.
5) Bottom level of pallets can be stored on the floor, lowering structure costs.
Heavy Duty Racking:
Loading capacity: <4000Kg/level; whole rack<12000
Height: 1,000-11,000mm
Depth: 400-1,500mm
Length: 1,500-3,300mm
Specail sizes also avaiable to specific storage needs.
Customized:
Please inform us the following information, we can provide the solutions as your requirment, thanks!
1) Size of the warehouse
2) Width, depth and height for each unit of rack
3) How many Levels for each unit of rack
4) Loading capacity for each pallet or for each level of beams
5) Color
Kanelson Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
- Pallets can be located, accessed and moved individually.
- Rapid handling of almost all types of palletised goods.
- Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- Strength and rigidity prevents compression damage to goods.
- Bottom level of pallets can be stored on the floor, lowering structure costs.

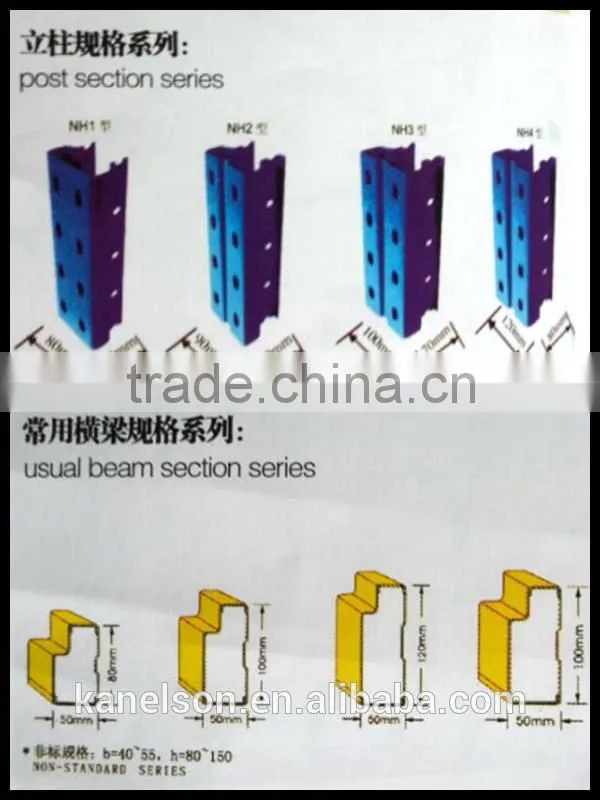

Post
Standard section size: 80*60*1.8-2.0, 90*70*1.8-2.0-2.5, 100*70*2.0-2.5, 120*95*2.0-2.5mm.

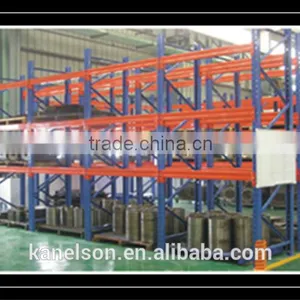

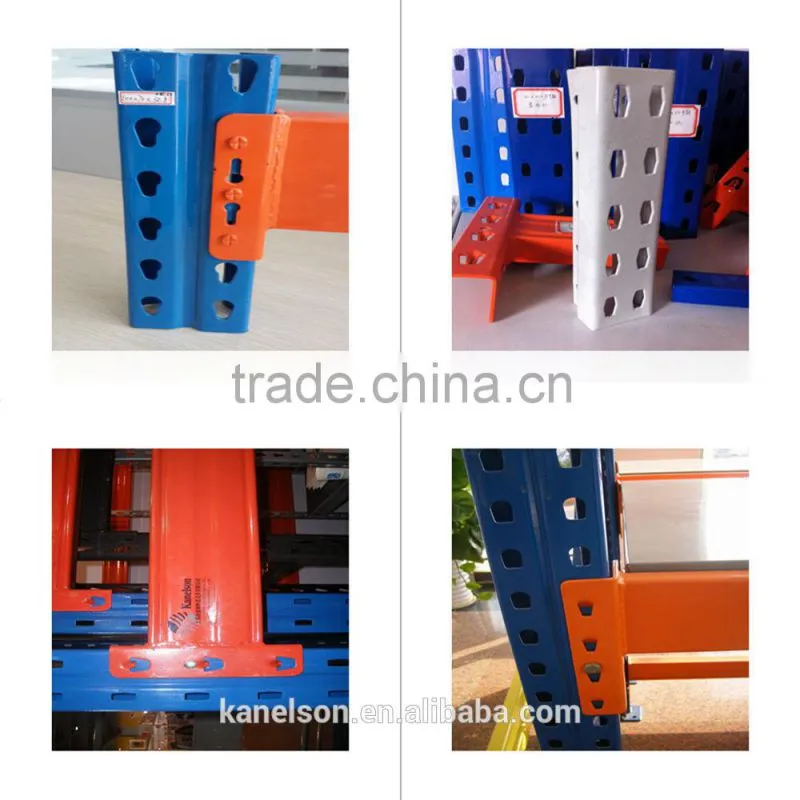

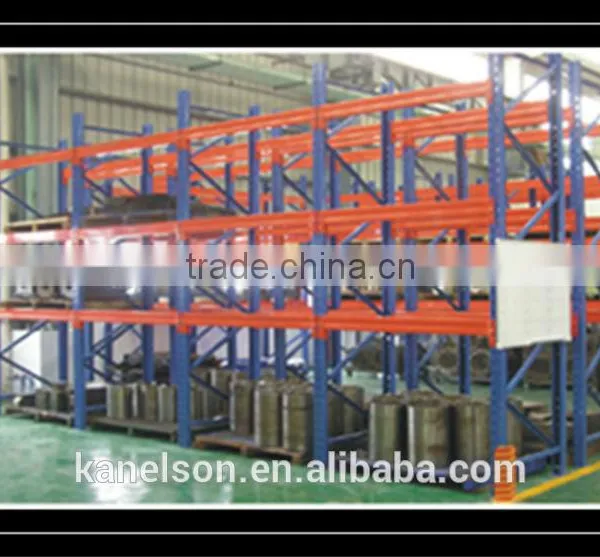

Please refer to some photos as below.
Loading Port
Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher cost of in-land trucking transportation from our factory.
Certificates about us and racking products.
