low price 1d laser 20 scanning lines tablet mobile usb barcode scanner
1.Product specifications
YHD- 9100 is a desktop omnidirectional barcode scanner,is characterized by light weight,remarkable perfmance without pause during working and assure the working efficiency .With exquisite appearance.
YHD-9100 is akind of omni dirctional barcode scanner with stable working solution .This scanner is offered with a stable stand which bring a lot convenience to the scanner working by easy operation used in all situtation .
I.Technical parameters
Port USB RS232 | |||
DC Characteristics | |||
Voltage |
DC+5V±5% Or +3.3V±5% |
||
Currancy loss ±10% | |||
Power On Currency |
60mA |
60mA |
|
Standby Currency |
40mA |
40mA |
|
Working Currency |
80mA |
80mA |
|
II.Parameter
Light resource |
Visible light source 650nm + 10nm |
Scanning Speed |
1500scan/sec |
Scanning lines |
20lins |
Interface |
USB RS232 |
Resolution |
Depth of Feild |
|
Mark |
Metric Unit |
Imperial Unit |
5mil(Code 39) |
0-9.1cm |
0-3.59in |
7.5mil(Code 39) |
0-15cm |
0-5.91in |
10mil(Code 39) |
0-17.5cm |
0-6.895in |
13mil(UPC/EAN) |
0-27cm |
0-10.638in |
26mil(Code 39) |
0-30cm |
0-11.82in |
III.Working Environment
Working temprature |
-20°C to 60°C (-4°F to 144°F) |
Storage temperature |
-30°C to 70°C (-22°F to 158°F) |
Relative Humidity |
5% to 95% ( noncondensing) |
environment illumination |
The normal indoor and outdoor sunshine point-blank |
IV.Decoding Capability
Yes |
Default |
|
Australian Post |
√ |
|
Canada Post |
√ |
|
Codabar |
√ |
|
Codablock |
√ |
|
Code 11 |
√ |
|
Code 39 |
√ |
|
Code 93 |
√ |
|
Code 128/EAN128 |
√ |
√ |
Dutch Post |
√ |
|
EAN.UCC Composite |
√ |
|
Interleaved 2 of 5 |
√ |
√ |
Japan Post |
√ |
|
Matrix 2 of 5 |
√ |
|
MSI Code |
√ |
|
Planet |
√ |
|
Plessey Code |
√ |
|
Postnet |
√ |
|
RSS |
√ |
|
Standard 2 of 5 |
√ |
|
Telepen |
√ |
|
TLC 39 |
√ |
|
UPC/EAN |
√ |

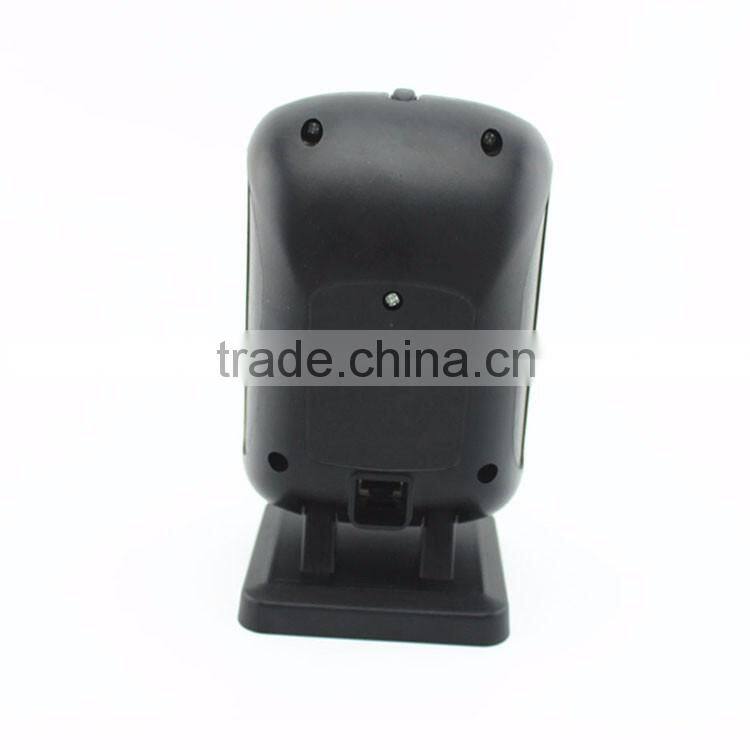

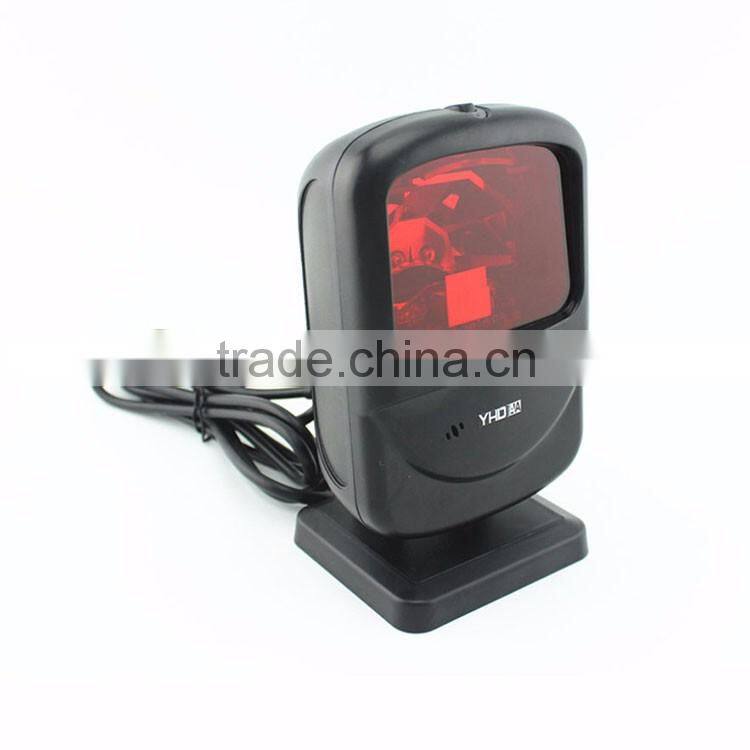

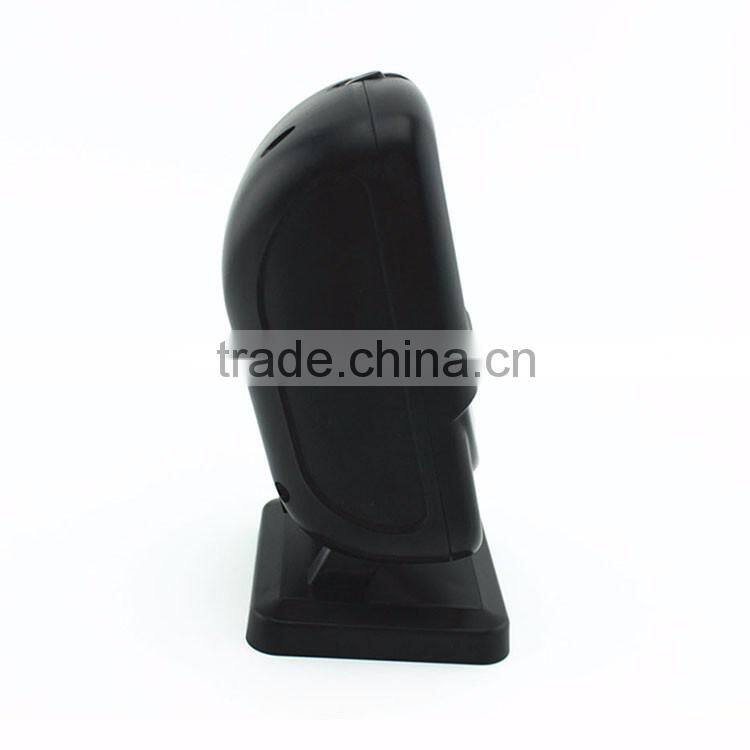

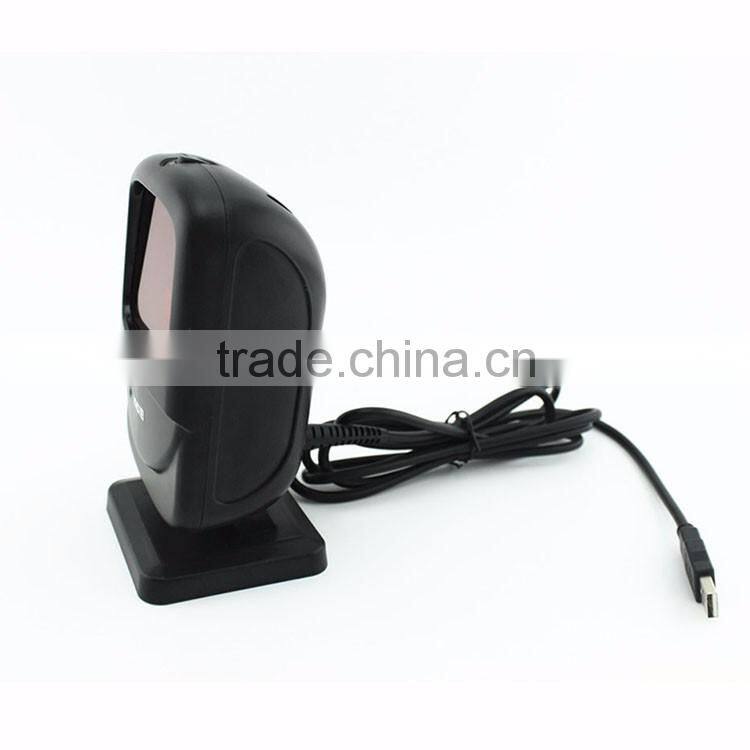

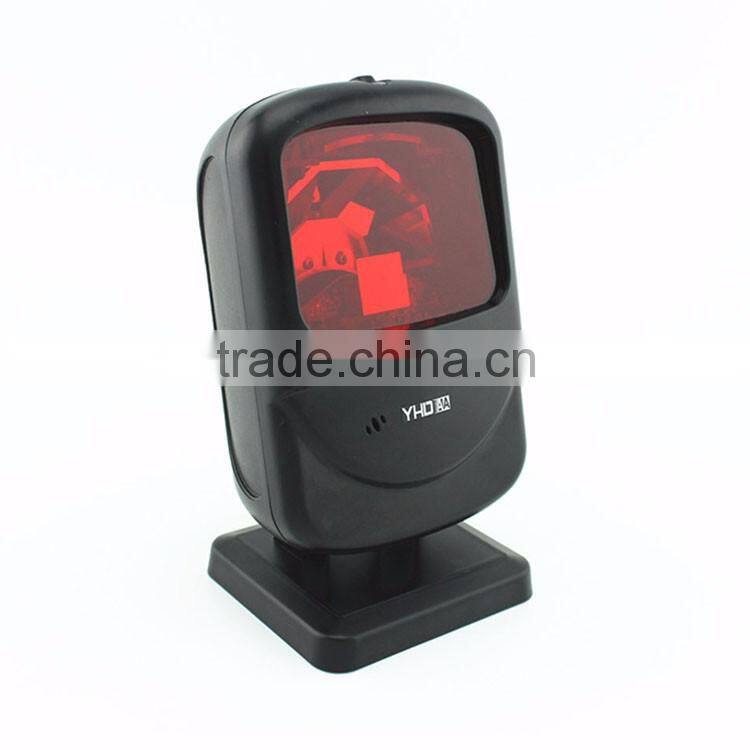

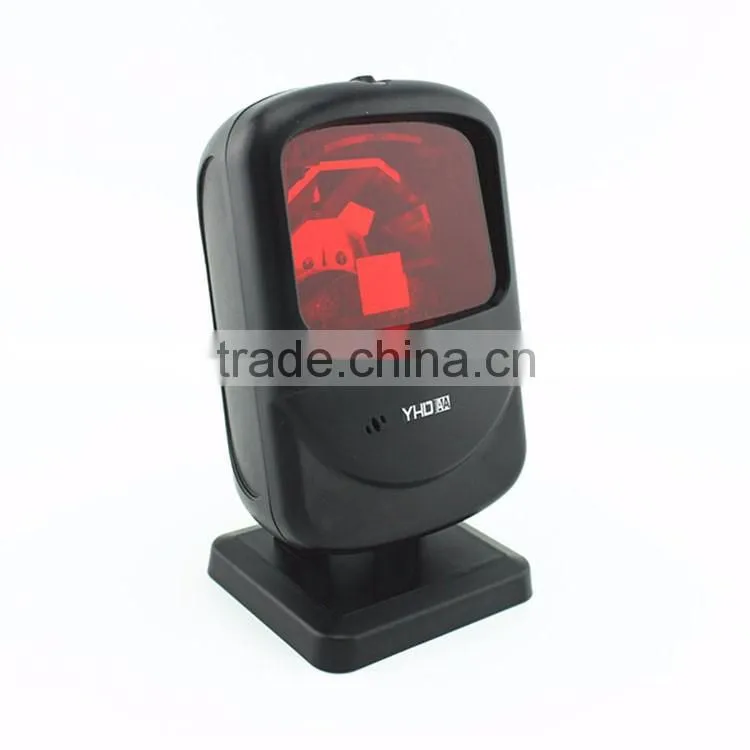

3.Product pictures
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent marketing team who specialized in the field for many years,our Technology department,engineering department,sales department has a strong ability in design, development and production that can meet your any require-ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded, we regard the customer demand as the core idea, and to lead the industry trend as own duty, focusing on the innovation of the code bar scanner .with high performance products and attentiveservice provided, we has won the trust and praise of our customers, which has put up a good brand image insuch field.
Company not only provides the high quality product but also established a perfect after-sales Service system. Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material,mould,equipment adjust-ment,parameter setting and cost accounting which customer selected.Our advantage products are:Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The new products technical updating and transformation is due to the continuous improving the level of technology and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled with technology and production management.Company has set up R&D Technology group, Production department,Quality department and aging laboratory etc that covering the whole system of barcode scanner technology research and development, it laid a solid foundation for the continuous development of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode
scanner products. However, our company expand the scale and products categories through continuous technical innovation and products structure adjustment.The current production types are barcode scanner,
barcode printer,POS printer, Magneitc card reader etc, which become one of considerable scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
