barcode scan platform
1.Product specifications

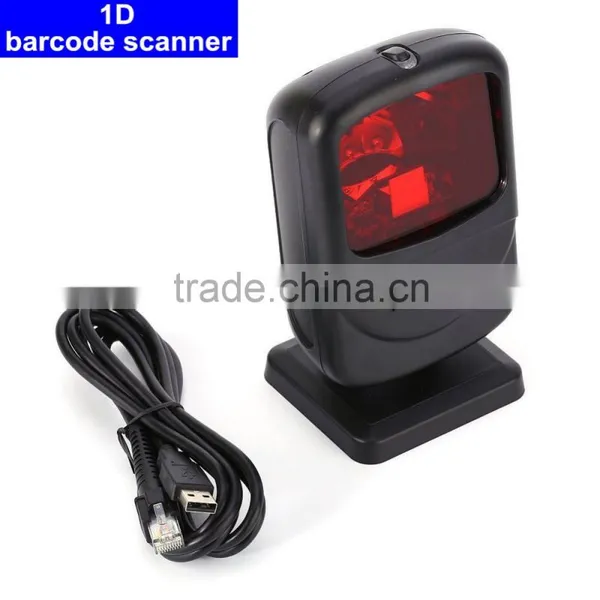

YHD- 9100 is a desktop omnidirectional barcode scanner,is characterized by light weight,remarkable perfmance
without pause during working and assure the working efficiency .With exquisite appearance ,YHD-9100 is a
kind of omni dirctional barcode scanner with stable working solution .This scanner is offered with a stable stand
which bring a lot convenience to the scanner working by easy operation used in all situtation .
I.Technical parameters
Port USB RS232 | |||
DC Characteristics | |||
Voltage |
DC+5V±5% Or +3.3V±5% |
||
Currancy loss ±10% | |||
Power On Currency |
60mA |
60mA |
|
Standby Currency |
40mA |
40mA |
|
Working Currency |
80mA |
80mA |
|
II.Parameter
Light resource |
Visible light source 650nm + 10nm |
Scanning Speed |
1500scan/sec |
Scanning lines |
20lins |
Interface |
USB RS232 |
Resolution |
Depth of Feild |
|
Mark |
Metric Unit |
Imperial Unit |
5mil(Code 39) |
0-9.1cm |
0-3.59in |
7.5mil(Code 39) |
0-15cm |
0-5.91in |
10mil(Code 39) |
0-17.5cm |
0-6.895in |
13mil(UPC/EAN) |
0-27cm |
0-10.638in |
26mil(Code 39) |
0-30cm |
0-11.82in |
III.Working Environment
Working temprature |
-20°C to 60°C (-4°F to 144°F) |
Storage temperature |
-30°C to 70°C (-22°F to 158°F) |
Relative Humidity |
5% to 95% ( noncondensing) |
environment illumination |
The normal indoor and outdoor sunshine point-blank |
IV.Decoding Capability
Yes |
Default |
|
Australian Post |
√ |
|
Canada Post |
√ |
|
Codabar |
√ |
|
Codablock |
√ |
|
Code 11 |
√ |
|
Code 39 |
√ |
|
Code 93 |
√ |
|
Code 128/EAN128 |
√ |
√ |
Dutch Post |
√ |
|
EAN.UCC Composite |
√ |
|
Interleaved 2 of 5 |
√ |
√ |
Japan Post |
√ |
|
Matrix 2 of 5 |
√ |
|
MSI Code |
√ |
|
Planet |
√ |
|
Plessey Code |
√ |
|
Postnet |
√ |
|
RSS |
√ |
|
Standard 2 of 5 |
√ |
|
Telepen |
√ |
|
TLC 39 |
√ |
|
UPC/EAN |
√ |
3.Product pictures
4.More product for you to choose
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent
marketing team who specialized in the field for many years,our Technology department,engineering department,
sales department has a strong ability in design,development and production that can meet your any require-
ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded,we regard the customer demand as the core idea,and to lead the industry trend as
own duty,focusing on the innovation of the code bar scanner .with high performance products and attentive
service provided, we has won the trust and praise of our customers, which has put up a good brand image in
such field.
Company not only provides the high quality product but also established a perfect after-sales Service system.
Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and
pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,
it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material , mould ,equipment
adjustment, parameter setting and cost accounting which customer selected. Our advantage products are :
Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The
new products technical updating and transformation is due to the continuous improving the level of technology
and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled
with technology and production management.Company has set up R&D Technology group, Production
department, Quality department and aging laboratory etc that covering the whole system of barcode scanner
technology research and development, it laid a solid foundation for the continuous developent of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and
production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode scanner products. However, our company expand the scale and products categories
through continuous technical innovation and products structure adjustment. The current production types are
barcode scanner, barcode printer, POS printer, Magneitc card reader etc, which become one of consider-
able scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
5.Contacts
