made in china 1d fixed mount CCD Barcode Scanner,supermarket Barcode Scanner
1.Product specifications
YHD-9300 Image Platform Omnidirectional Barcode Scanner Terminal POS system machine.
1. Image platform has long lifetime because without electric motor structure.
2. Image platform can read barcode from screen. Paying via smart phone is workable.
3. Better vibration immunity design.
4. The range of decoding is wider, read rapidly. Better than laser scanner.
5. Online update is available
6. Meet the requirements of Express, Drug Administration, Food Supervision, Book Collection, Warehouse Management, Jewelry, Supermarket and Bank.
2.Technical parameters
Input Voltage |
5 VDC ± 0.25V |
Power |
5.00W (working); 0.40W (standby) |
Current |
1000mA (working); 80mA (standby) |
Image Size |
1280x960 pixels |
Scanning Angle |
±60°, ±40°, 360° (Skew, Pitch, Roll) |
Decode Capability |
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8,ISBN (Bookland EAN),ISSN, Code 39,Code 39 full ASCII,Code 32,Trioptic Code 39,Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5),Matrix 2 of 5,Codabar (NW7),Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants |
Indicator |
Beeper, LED |
Interface Supported |
Keyboard wedge, RS-232, USB Keyboard, USB virtual COM |

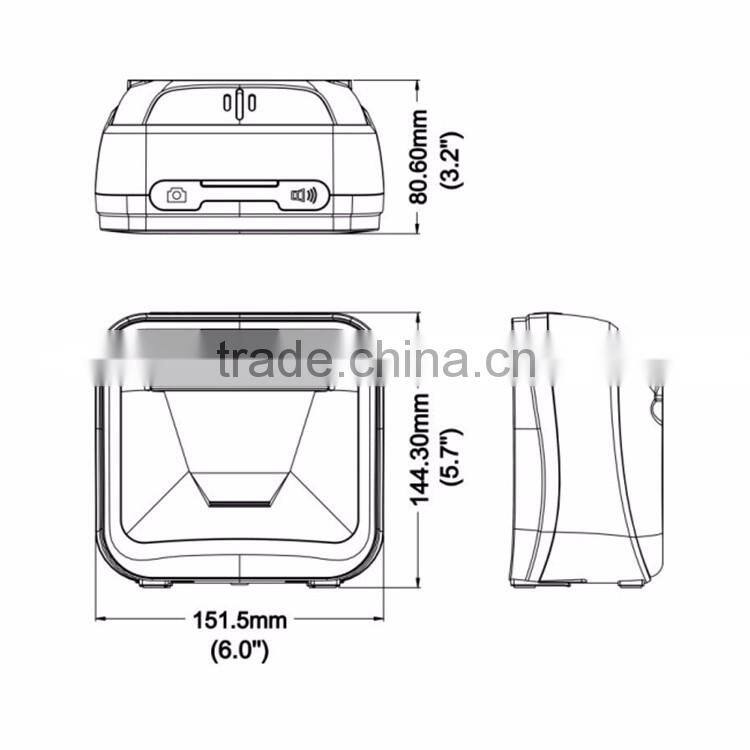

Dimensions |
Height x Width x Depth: 152mm×81mm×144mm (without stand); 152mm×112mm×184mm (with stand); |
Weight |
543g (without stand, without cable); |
Cable |
Straight 2.0m |
Connector Type |
RJ-45 phone jack connector |
Case Material |
PC+TPU |
Temperature |
0° to 50°C (32° to 122°F), Operating; -40° to 70°C (-40° to 158°F), Storage |
Humidity |
5% to 95% (non-condensing) |
Programming Method |
Manual (reading special barcode) |
Program Upgrade |
Online |
Min. Element Width |
4mil, 1mil = 0.0254mm |
Decoding Depth |
4mil Code39 (9 chars): 5mm-60mm |
5mil Code39 (3 chars): 0mm-100mm | |
10mil Code39 (3 chars): 0mm-148mm | |
13mil UPC (6 chars): 0mm-170mm | |
15mil Code39 (1 chars): 0mm-193mm | |
20mil Code39 (1 chars): 0mm-220mm | |
Safety |
EMC: EN55022, EN55024 |

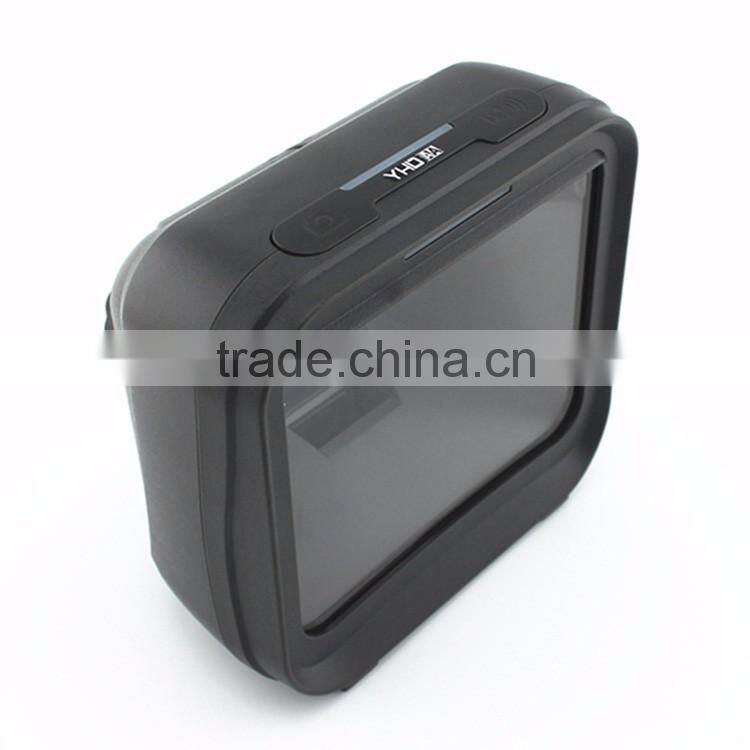

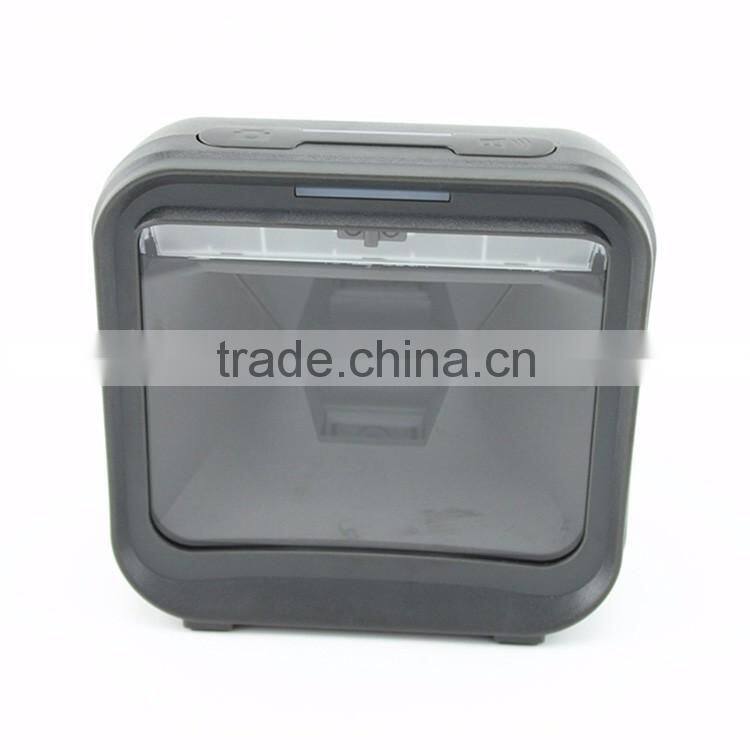

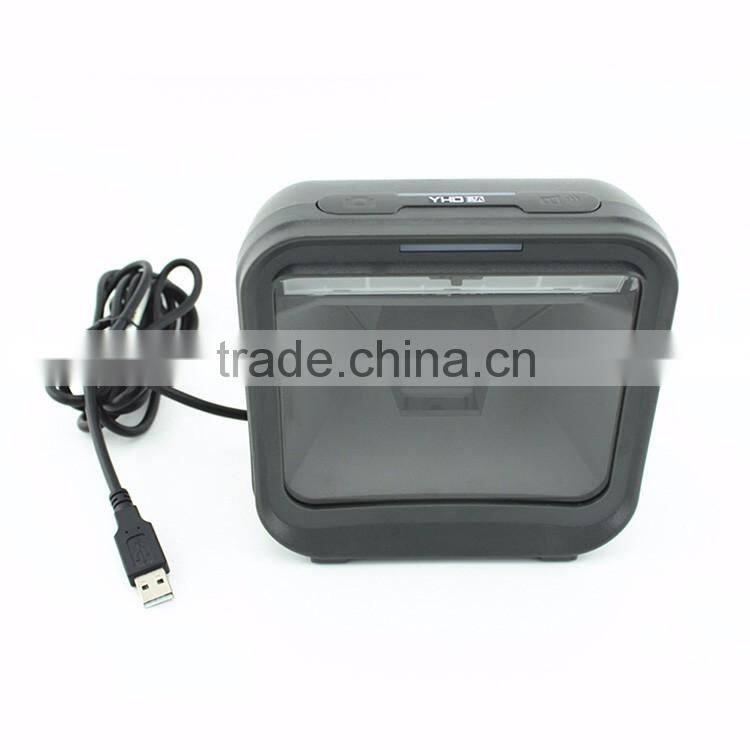

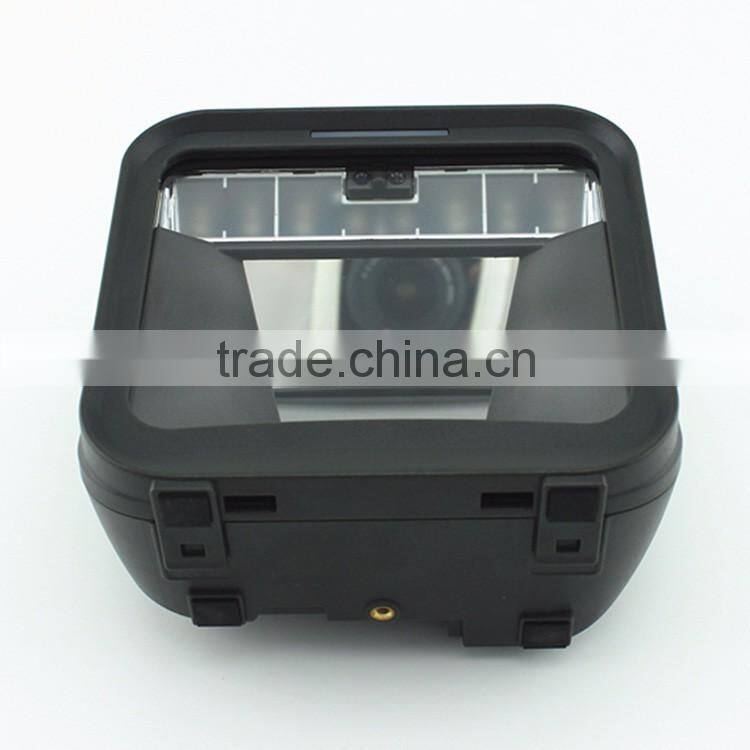

2.Product pictures
What we can do for you?
1. Reply your enquiry in 24 working hours;
2. Stable quality and reasonable price for you to gain long term cooperation;
3. OEM & ODM service for quantity orders;
4. Sample orders welcomed for quality test;
5. Professional and patient pre-sale and after-sale service on our products;
6.Exclusive, considerate and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.;
7.Do the best barcode scanner in china.
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent marketing team who specialized in the field for many years,our Technology department,engineering department,sales department has a strong ability in design, development and production that can meet your any require-ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded, we regard the customer demand as the core idea, and to lead the industry trend as own duty, focusing on the innovation of the code bar scanner .with high performance products and attentiveservice provided, we has won the trust and praise of our customers, which has put up a good brand image insuch field.
Company not only provides the high quality product but also established a perfect after-sales Service system. Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material,mould,equipment adjust-ment,parameter setting and cost accounting which customer selected.Our advantage products are:Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The new products technical updating and transformation is due to the continuous improving the level of technology and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled with technology and production management.Company has set up R&D Technology group, Production department,Quality department and aging laboratory etc that covering the whole system of barcode scanner technology research and development, it laid a solid foundation for the continuous development of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode
scanner products. However, our company expand the scale and products categories through continuous technical innovation and products structure adjustment.The current production types are barcode scanner,
barcode printer,POS printer, Magneitc card reader etc, which become one of considerable scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
