long scanning distance 2D image qr barcode scanner module,fixed mount barcode scanner
Features
1. Intelligent Multi-Interface Design: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection.
2. Total Freedom 2.0: Second-generation plug-in development platform enables the loading and linking of multiple applications directly onto the scanner,eliminating the need for host system modifications while offering expanded decoding and data formatting functionality
3. The 2D image scanner quality Mobile Phone Reading: Easily scans bar codes directly from mobile device or computer screens, almost as if they were printed on paper Compatible Remote Master Mind remote device
4. Remote Master Mind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
1.Product Specification
| Electrical parameter | 5/3.3 V ± 10%x100mA (idle:10mA) | |
| Scanning type | bi-directional | |
| CPU | ARM 32-bit Cortex | |
| Light source | 650 nm visual laser diode | |
| Trigger Mode | handheld,Continuous,Auto-Induction | |
| Auto -Induction interval time | 0.3S | |
| Handheld/ Auto-Induction switching time | 6S | |
| Indication | Buzzer & LED | |
| Printing Contract | >25% | |
| Resolution | 3.3mil | |
| Decoding speed | 260scans/sec | |
| Bit error rate | 1/5millon,1/20million | |
| Scanning width | 30cm | |
| Depth of Field | 3.3mil | 2mm-100mm |
| 10mil | 2mm-350mm | |
| 15.6mil | 5mm-600mm | |
| 35mil | 10mm-1000mm | |
| Scanning angle | rotor angel±30°,inclination± 45°,declination ± 60° | |
| Anti inference | industrial lighting or sun will not make any difference | |
| Decoding Capability |
UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5,Code93,MSI,Code11, ISBN, ISSN,China post,etc |
|
| Button life | 8000,000 times ; laser life:12000 hours | |
| Drop test | 2.0m fall to concrete | |
| Interface | TTL,RS232,KBW,USB | |
| Certificate | CE,FCC,RoHS,IP54 |
|

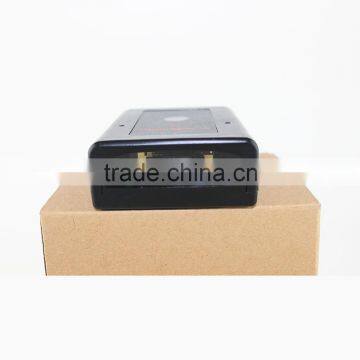

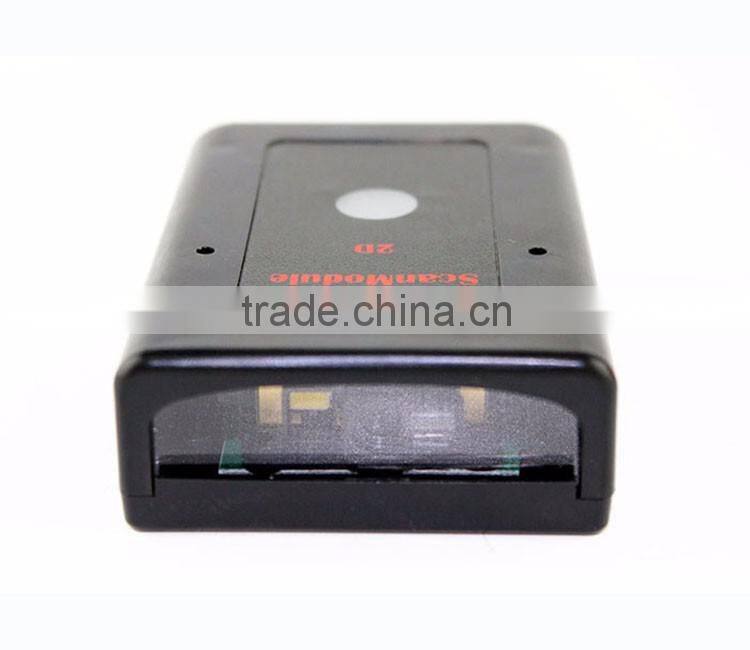

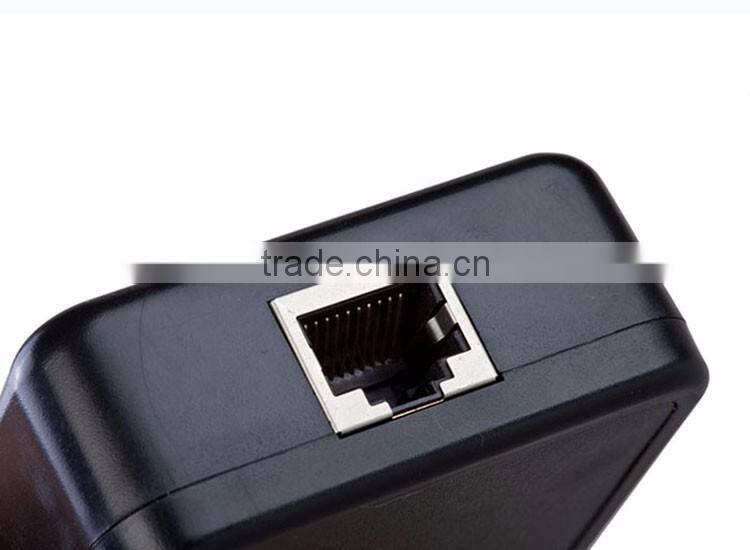

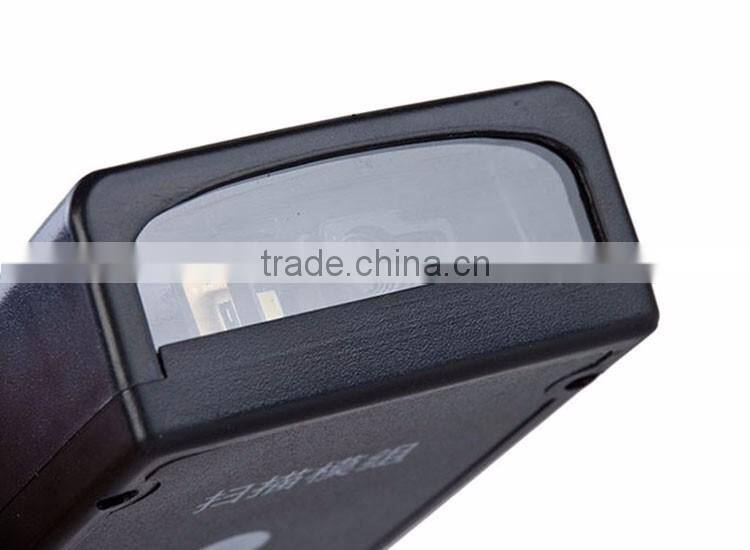

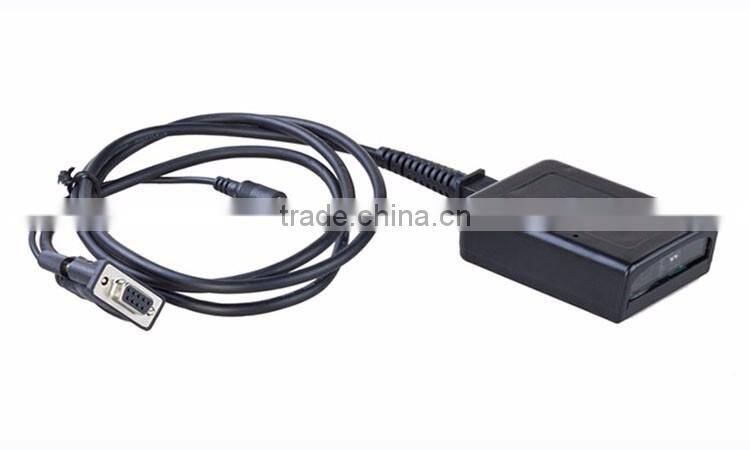

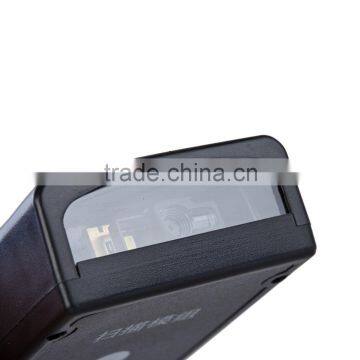

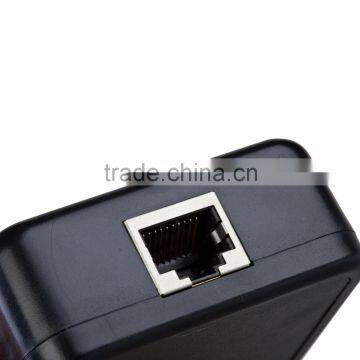

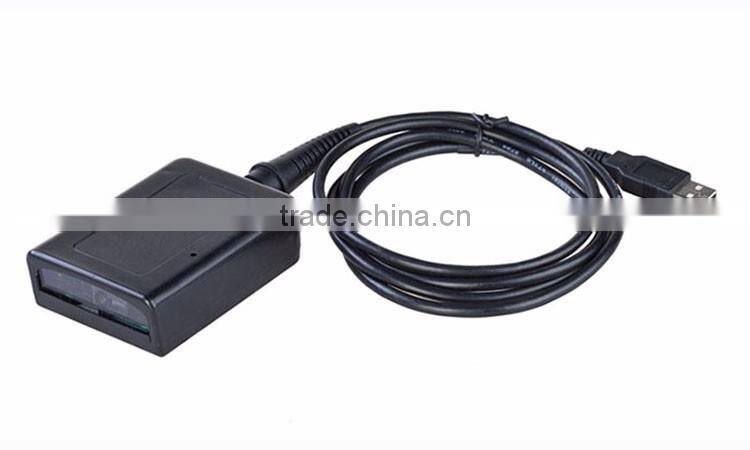

2.Product Pictures
What we can do for you?
1. Reply your enquiry in 24 working hours;
2. Stable quality and reasonable price for you to gain long term cooperation;
3. OEM & ODM service for quantity orders;
4. Sample orders welcomed for quality test;
5. Professional and patient pre-sale and after-sale service on our products;
6.Exclusive, considerate and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.;
7.Do the best barcode scanner in china.
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent
marketing team who specialized in the field for many years,our Technology department,engineering department,sales department has a strong ability in design, development and production that can meet your any require-ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded, we regard the customer demand as the core idea, and to lead the industry trend
as own duty, focusing on the innovation of the code bar scanner .with high performance products and attentiveservice provided, we has won the trust and praise of our customers, which has put up a good brand image insuch field.
Company not only provides the high quality product but also established a perfect after-sales Service system.
Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,it has
the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material,mould,equipment adjust-
ment,parameter setting and cost accounting which customer selected.Our advantage products are:Laser
barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The new
products technical updating and transformation is due to the continuous improving the level of technology and
manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled with
technology and production management.Company has set up R&D Technology group, Production department,
Quality department and aging laboratory etc that covering the whole system of barcode scanner technology
research and development, it laid a solid foundation for the continuous development of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and production
configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode
scanner products. However, our company expand the scale and products categories through continuous
technical innovation and products structure adjustment.The current production types are barcode scanner,
barcode printer,POS printer, Magneitc card reader etc, which become one of considerable scale barcode
equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
