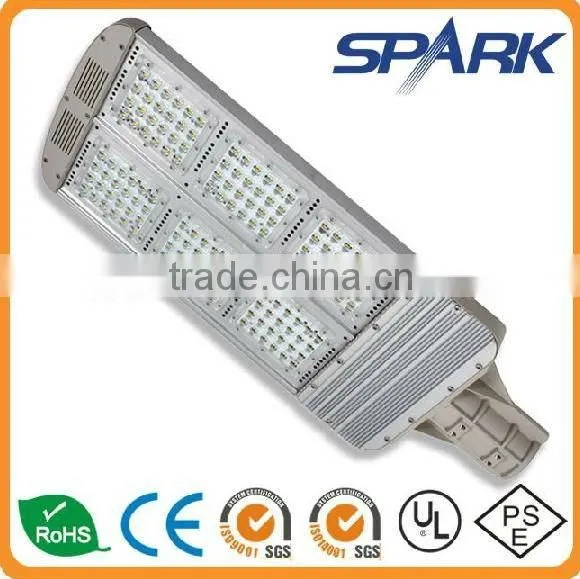

Spark High Power Modular LED Street Light 165W
lProduct we produce
Model No.: SPL-144
Equivalent: 400WHPS Lamp
LED Light Source :144*1W Cree / Lumileds Rebel LED
LED Luminous Flux :107-122lm/w
Lamp Rated Total Power: 165W
Power Efficiency: > 86%
Lamp Rated Luminous Flux: 16000lm
Lamp Rated Luminous Efficiency: > 85lm/w
Average Illumination and Effective Illuminated Area
6M Height :26m×10m ≥ 46LUX
8M Height: 33m×13m ≥ 30LUX
10M Height: 40m×16m ≥ 21LUX
Color Index(CRI): Ra >75
CCT :CW: 5000-6500K W: 4000-5000K WW: 2700-3500K
Beam Angle : Horizontal Axis:120° / 140° ; Vertical Axis:60° / 68°
Light Distribution Curve (Beam Pattern) : Asymmetric (Bat Wing) / Rectangular Beam
Input Voltage: AC 85-300V/277V ; DC10.8-28V
Power Factor(PF): > 0.95
Total Harmonic Distortion(THD):< 20%
Storage Temperature: -40°C-+80°C
Working Environment: -40°C-+50°C; 10%-95%RH
lAdvantages we have:
1) Original American CREE or Philips Lumileds LED used
2) Light control and time-phase dimming, saving more energy
3) Unique optical design and rectangular beam, suitable for roadway illumination
4) Special modular design for the lens (independent modules) and isolated power supply, easy for maintenance.
5) High quality power supply (all is imported); automatically reduce current against overheating working temperature.
6)Intelligent functions and special options available: Temperature controlling, Time controlling by programming power supply IC, Light controlling by adding light sensors, automatically switch ON/OFF; connection to remote control system available;
7) UL certification for some models; CE & RoHs for all.
8) 3 years warranty for standard prices; longer warranty available with price adjustment.
lService we offer:
1) Your inquriy to our products will be replied in 12 hours.
2) OEM & ODM service, we can customize any products according to your requirements, including R&D, production, and so on
3) Sole agent cooperation is allowed for unique models we develop for you or some current models of us
4) Protection to your business, including sales area, unique product idea and all your private infos.
