Spark High Power COB LED Street Light 160W

Name: Spark High Power COB LED Street Light 160W
Brand: Spark LED Module Street Light
SKU: 124758385
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

LED Light Source:

COB LED

Input Voltage(V):

90-305VAC

Lamp Power(W):

160

Shenzhen Spark Optoelectronics S&T Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source COB LED

Input Voltage(V) 90-305VAC

Lamp Power(W) 160

Lamp Luminous Flux(lm) 15200

Lamp Luminous Efficiency(lm/w) 95

Working Temperature(℃) -40, 80

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP66

Certification CE, CQC, FCC, PSE, UL, VDE

Place of Origin Guangdong, China

Brand Name Spark LED Module Street Light

Model Number SPL-COB-160

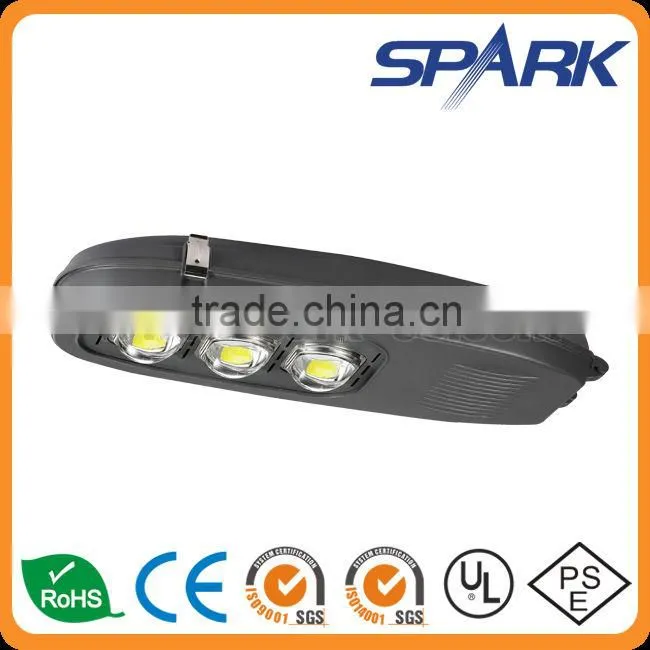

Spark High Power COB LED Street Light 160W

Features:

Environmental friendly with no mercury content
LED as light source offer very long life as compared to conventional source
Wide operating voltage of 90-305V
Color rendering index (CRI) >75
Pre-wired, easy installation
Warm white, pure white and cool white available
Compact design, less weight and high cost performance
Adopted original integrated LED light source and professional heat dissipation system

Main Technology Index:

Model No.		SPL-COB-160
Rated Power		160W
LED Qty.		3 PCS
Rated Luminous Flux		15,200 LM
Luminous Efficiency		95lm/W
LED Light Source		COB LED
Beam Angle		135°X 90°
Correlated Color Temperature(CCT)		Cool White: 5000-6300K
Color Rendering Index(CRI)		Ra>70
Input Voltage		90-305VAC
Power Factor(PF)		≥ 0.95
Junction Temperature		60°C(Ta+25°C)
Operation Temperature		-40°C--+50°C ; 10%-90%RH
Lens Material		Optical Glass
IP Rating		IP66
Lifetime		> 50,000h
Product Size(mm)		750 x 335 x 165
Central Illumination and Effective Area	6M Height	24m×6.5m ≥110Lux
	8M Height	34m×8.5m ≥62Lux
	10M Height	40m×10.5m ≥40Lux
	12M Height	50m×12m ≥26Lux
