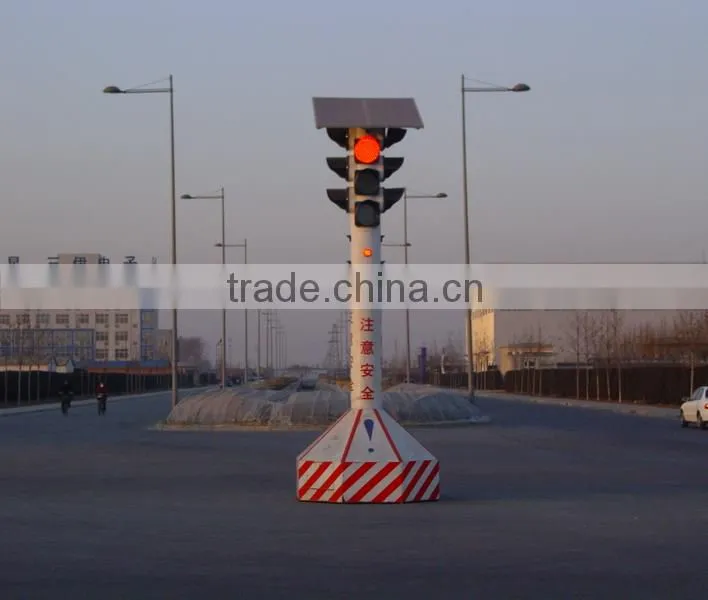

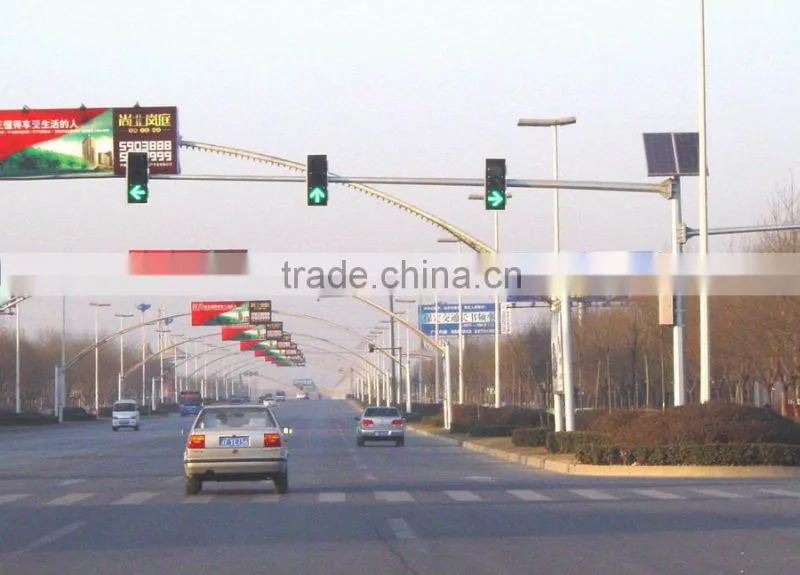

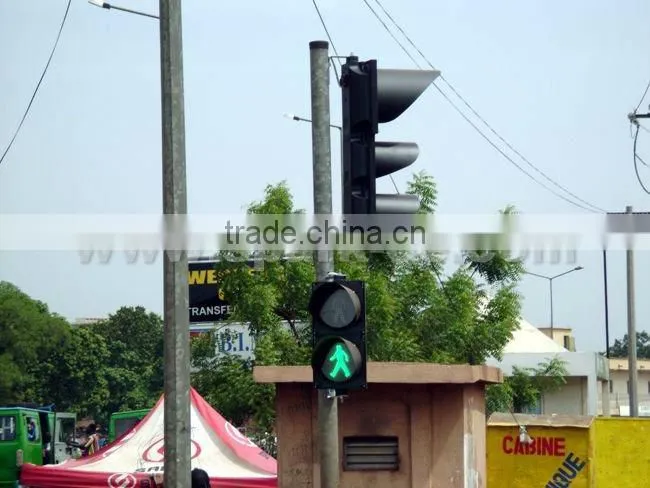

LED technology is increasingly being used in traffic lighting applications due to its longer life and energy-saving. Compared to traditional traffic light, life of LED Traffic light can reach 100,000 hours. Adopting fireproof, UV-resistant and high light-transmission transparent Polycarbonate lens, Spark LED Signal Light will also be better equipped to withstand extreme hot and cold temperatures than an incandescent light, suit for outdoor use. With the monochrome light, good chromaticity uniformity, it can meet the international standard on traffic lights. Product customization is available. Moreover, it is easy installation and easy maintains. High reliability and operability of SPARK LED traffic light series have impressed customers a lot. Our main products are LED Street light, LED tunnel light, LED tube light, LED high bay light, LED down light and so on. Choosing LED lights from “Spark” today, enjoying green future.
Esthetic appearance & visibility
High efficiency and high brightness LED Light source, big view angle
More than 70,000 hours lifespan
90% energy saving compared with incandescent
Unique optical lens, good color uniformity
Multi-ply sealed, water & dust resistant
Comply with national standard GB-14887-2003
CE (EN12368) approved & RoHS compliant
Chip brand: HP for Red, Cree for Green
Parameter:
|
Model |
Light color |
Quantity of LED (pcs) |
Luminous intensity (cd) |
Wavelength (nm) |
Visual angle(°) | |
| Left/right | Alow | |||||
| SPRX 300-3-D2A | 88 |
84 | ≥4000 | 625±5 | 30 | 10 |
| 88 | 84 | ≥4000 | 505±2 | 30 | 10 | |
| Pedestrian | 75 | ≥4000 | 625±5 | 30 | 10 | |
| Pedestrian | 314 | ≥4000 | 505±2 | 30 | 10 | |
|
Model |
Light color |
Rated power consumption (W) |
Operating temperature (°C) |
Input voltage |
Lamp body material |
Product size (mm) |
| SPRX 300-3-D2A | 88 |
≤1 | -40~+80 | AC:85V~264V 50HZ/60HZ |
PC | 700×350×110 |
| 88 | ≤2 | |||||
| Pedestrian | ≤5 | |||||
| Pedestrian | ≤10 |
Package:
| Model | Dimension (mm) | Gross weight (kg) | Net weight (kg) | Material | Volume (m3) |
| SPRX 300-3-D2A | 900×410×230 |
9.2 | 7.5 | Carton | 0.085 |
