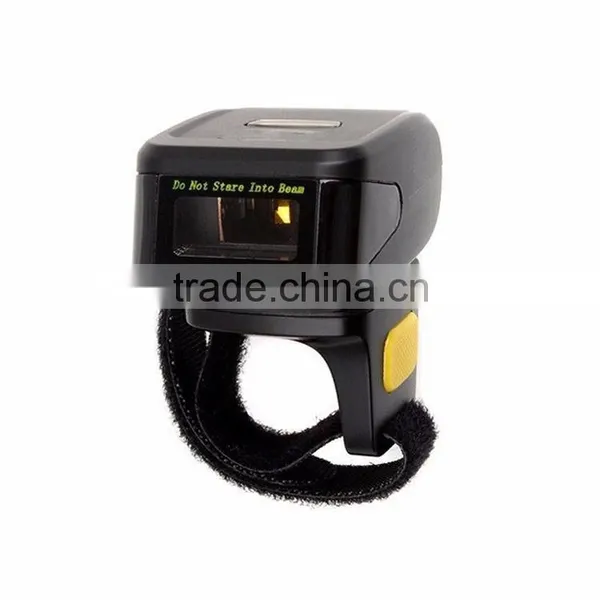

New designed wearable 1d-2d laser mini blutooth barcode scanner
Features
1. Wearable & Portable
2. Three scanning modes: continuous mode, manual mode, auto close mode
3. Feedback by LED indicator and buzzer
4. Built-in 512K memory can store more than ten thousand barcodes
5. Support Bluetooth SPP, HID
6. Long working time for single charging
1. Quick Introduction
YHD-3300 is a powerful new generation mini barcode scanner with small size and charming appearance. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store.
YHD-3300 is very comfortable to wear it in whole working day, with high performance laser scan engine, even poor printed barcode can be read. The rugged rubber shell makes daily use reliable even in the roughest environments.
YHD-3300 can connect with iOS and android smart phone easily. Special design Bluetooth protocol, you can scan barcode into tablet PC and smart phone directly without install any software.
2.Product specifications
Decoding type |
1D bar codes ; optional 2D |
Reading Mode |
Laser |
Interface |
Bluetooth |
Wireless |
Bluetooth |
Charging port |
Micro usb |
Type |
1D Ring type bluetooth scanner |
Light Source |
650nm |
Scan Rate |
100 ± 10 scans/second |
Reading preciseness |
0.10mm(4mil) |
Interface |
Bluetooth 3.0 |
Battery |
DC 3.7V,360mA Li-ion battery |
Memory |
512KB |
Support OS |
Microsoft Windows XP/7.0/8.0,Android, iOS. |
Reading Distance |
2.5-600mm(100%UPC/EAN) |
Barcode types |
Codabar, Code 11, Code 93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix,GS1 databar (formerly RSS) variants. |
scan scope |
10mm-250mm |
Scanning angle |
ROll ±35 degree / Pitch ±65 degree / Yaw ±50 degree |
Bit error rate |
1/5million |
Power voltage |
5V |
Safety performance |
CE & Rohs |
Dimension |
52.8mm*36mm*28.6mm |
Weight |
39g |
3.Product pictures
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent marketing team who specialized in the field for many years,our Technology department,engineering department,sales department has a strong ability in design, development and production that can meet your any require-ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded, we regard the customer demand as the core idea, and to lead the industry trend as own duty, focusing on the innovation of the code bar scanner .with high performance products and attentiveservice provided, we has won the trust and praise of our customers, which has put up a good brand image insuch field.
Company not only provides the high quality product but also established a perfect after-sales Service system. Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material,mould,equipment adjust-ment,parameter setting and cost accounting which customer selected.Our advantage products are:Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The new products technical updating and transformation is due to the continuous improving the level of technology and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled with technology and production management.Company has set up R&D Technology group, Production department,Quality department and aging laboratory etc that covering the whole system of barcode scanner technology research and development, it laid a solid foundation for the continuous development of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode
scanner products. However, our company expand the scale and products categories through continuous technical innovation and products structure adjustment.The current production types are barcode scanner,
barcode printer,POS printer, Magneitc card reader etc, which become one of considerable scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
