Best price 3mil barode scanner, key feel good wireless barcode reader USB bluetooth bar code scanner
|
1.Product specifications
Frequency:Bluetooth |
Charging supply:5V-500mA |
|
Distance:10m |
Standby:zero standby |
|
storage:64K=2000 bar code |
Battery: 3.7V-1500mAh |
|
Scanner parameters: | ||
Scanning type :bi-directional |
Light source:650nm LD |
|
CPU:ARM 32-bit Cortex |
Trigger Mode:Button,Auto-Induction |
|
Printing Contract :>25% |
Indication:Buzzer & LED |
|
Resolution :3.3mil |
Scanning width :30cm |
|
Decoding speed:260scans/sec |
Bit error rate :1/5millon ,1/20million |
|
|
Depth Of Field |
3.3mil |
2mm-100mm |
10mil |
2mm-350mm |
|
15.6mil |
5mm-600mm |
|
35mil |
10mm-1000mm |
|
Scanning angle:rotor angel±30°,inclination± 45°,declination ± 60° | ||
Anti inference:industrial lighting or sun will not make any difference | ||
Decoding Capability:UPC/EAN,with complementary UPC/EAN,Code128, | ||
Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 | ||
Code93,MSI,Code11,ISBN,ISSN,China post,etc | ||
Button life :8000,000 times |
laser life:12000 hours |
|
Drop test :2.0m | ||
Certificate :CE,FCC,RoHS,IP54 | ||

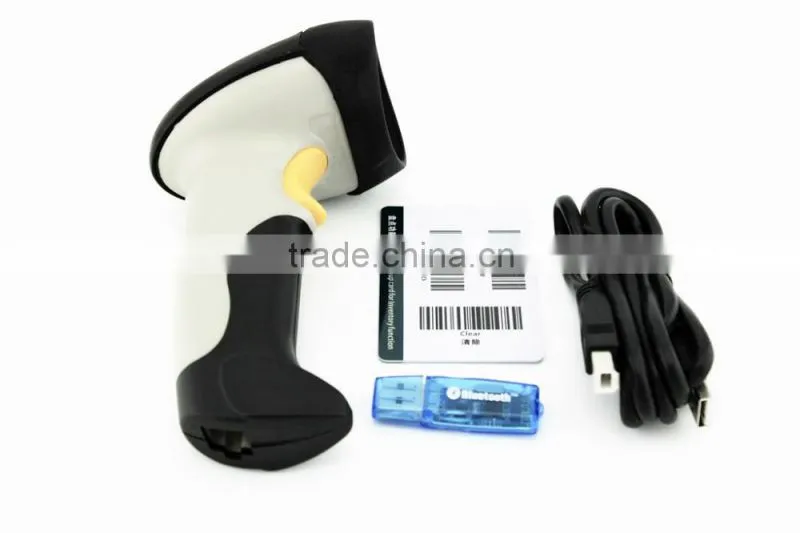

2.Product pictures
3.Match instructions
PS: Be sure the scanner is set to UART mode1
Bluetooth scanner Match
a.Press button the scanner starts, BT module self-checking when red light flashing, Self-check complete then red
light off;
b.Long press button or scanned “Math “Settings, blue light and red flashing at the same time which means in matching
mode;
c.Choose the scanner is going to pair with the device ,after connection Successful ,scanner start to beep twice with
blue light on ,red light off.
Match
Charging
Connect the scanner to USB cable to charge, When charging the green light, Charging complete green light off.
1.Packaging:
standard packaging as you request
2.shipping
Air express for samples : DHL , FEDEX , UPS, TNT, EMS, etc .
Sea shipping for quantiry order.
Trade terms: EXW , FCA , FOB ,CFR,CIF
1.Professional technical consultant and patient pre-sale and after-sale service on our products;
2. Each production procedure will be strictly supervised and thoroughly tested.
3. Stable quality and reasonable price for you to gain long term cooperation;
4. OEM & ODM service for quantity orders;
5. Sample orders welcomed for quality test;
6. Minimum warranty of two years for free.
1.About us
Yu Heng da technology company is the professional manufacturer of code bar scanner,which has an excellent
marketing team who specialized in the field for many years,our Technology department,engineering department,
sales department has a strong ability in design,development and production that can meet your any require-
ments in code bar scanner, we also accept OEM and ODM services.
Since the company founded,we regard the customer demand as the core idea,and to lead the industry trend as
own duty,focusing on the innovation of the code bar scanner .with high performance products and attentive
service provided, we has won the trust and praise of our customers, which has put up a good brand image in
such field.
Company not only provides the high quality product but also established a perfect after-sales Service system.
Company believe that our customer must be mutually beneficial and win-win through our continuous efforts and
pursuit.
2.Why choose us
1)Products Advantages
YuHengda Technology Co.,Ltd is based on continuous research,development and rapid market respnese,
it has the ability to custom-made product according to customer’s different requirements for barcode scanner.
Also its able to arrange the comprehensive manufacture according to the raw material , mould ,equipment
adjustment, parameter setting and cost accounting which customer selected. Our advantage products are :
Laser barcode scanner,CCD barcode scanner, Wireless barcode scanner and Bluetooth barcode scanner.
2)Technical Advantages
We insist on the road of combining the manufacture, study and research since company established . The
new products technical updating and transformation is due to the continuous improving the level of technology
and manufacture.Company owns a group of highly qualified engineering and technical workers, who skilled
with technology and production management.Company has set up R&D Technology group, Production
department, Quality department and aging laboratory etc that covering the whole system of barcode scanner
technology research and development, it laid a solid foundation for the continuous developent of company.
3)Scale advantages
Barcode scanner industry production enterprise is numerous, but most of them are small scale and
production configuration is simple, they don’t have the ability to manufacture the standardized high-performance barcode scanner products. However, our company expand the scale and products categories
through continuous technical innovation and products structure adjustment. The current production types are
barcode scanner, barcode printer, POS printer, Magneitc card reader etc, which become one of consider-
able scale barcode equipment manufacturing enterprise in China.
3. Production Flow Chart
4.Certificates
