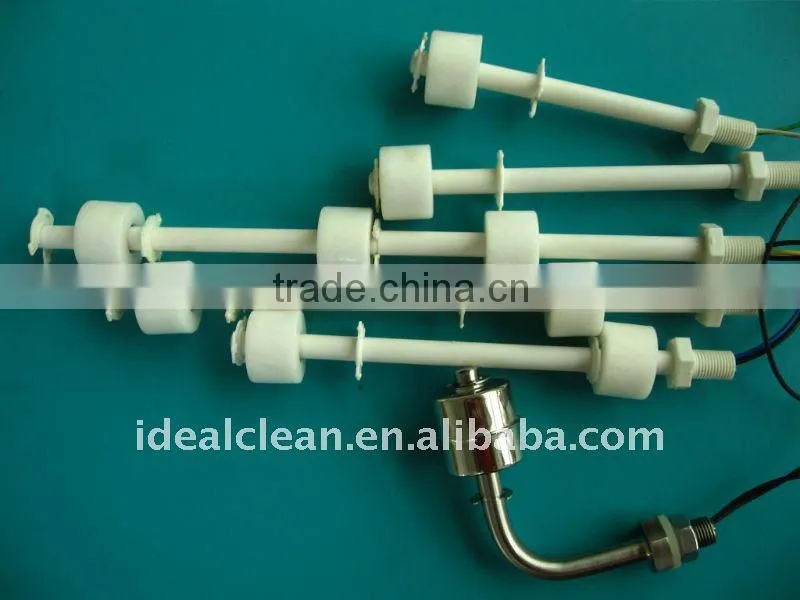

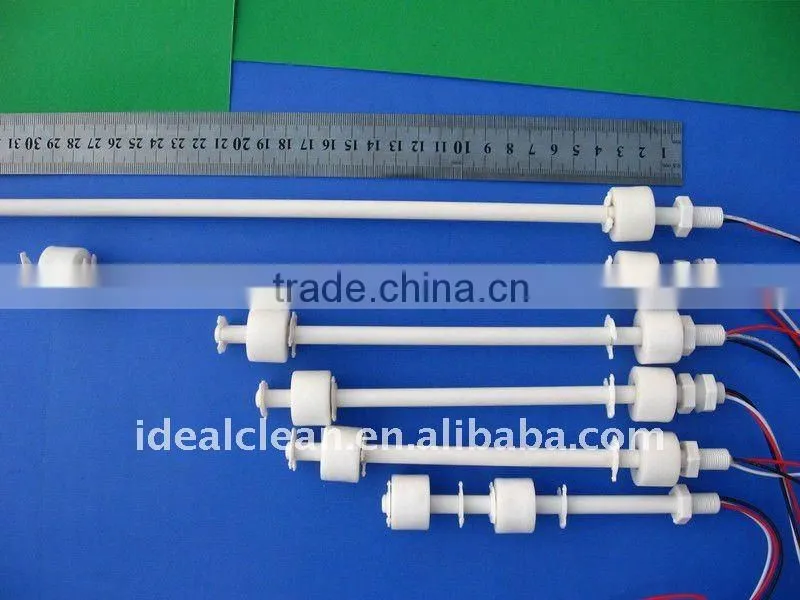

Stainless Steel Water Level Switch

Name: Stainless Steel Water Level Switch
Brand: IDST
SKU: 124739561

Stainless Steel Water Level Switch thumbnail-1

Stainless Steel Water Level Switch photo-1

US$ 1 - 2 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IDST

Model Number:

IDST0810

Contact Supplier Request Quote Chat Now

Shenzhen Ideal Spray Technologies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IDST

Model Number IDST0810

Media Type Liquid

Operating Temperature -20° to 160°

Specifications

water level swich/ float level switch
1.Safety,long life level sensor
2. ISO9001, RoHS certificates
3. Excellent perfomance

Specification	1A	2A
Max contact rating	10W	50W
Max switching voltage	100VDC	220VDC
Max switching current	0.5A	1.5A
Max breakdown voltage	220VDC	300VDC
Max carry current	1.0A	3.0A
Max contact resistance	100Ω	100Ω
Temperature rating	-10-+85°C	-10-+85°C
Float ball material	P.P	P.P
Float body material	P.P	P.P

Movement explaination:

When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

We can design and manufacture a custom or standard float switch or liquid level sensor in many shapes and materials. Whether you desire an inexpensive plastic float switch or a rugged stainless steel multi level liquid sensor, let use guide you to the proper solution. You can submit your project on line by selecting the customize button next to the float switch product that best meets your needs, and an engineer will contact you to finalize any required details. Our on line application notes may also be used to let you design your own cost effective float switch pump control.
