Specifications
1.High Pressure Misting System2.Plastic,SS,Brass Material
3.Ruby,SS,Ceramic Orifice
4.100 to 1000PSI
5.Cooling,Humidity
(High pressure Nozzles)(Brass Fog Nozzles)
High Pressure Fine Misting System, Low Pressure Misting System:
1. Nozzle Material: Brass, SS
2. Orifice:Ruby,Ceramic,SS
3.Connection Type: Quick Slip Lock, Thread type
3.Tube size: 3/8" (9.52mm)
3. Working Pressue: 9bar to 100bar (100PSI to 1000PSI)
4. Droplet size: 5-40 Micron
5. Motor Model: 220V/50HZ, 220V/60HZ, 380/50HZ
6. Fittings Models: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.
Ideal Spray Professional make high quality misting system kits for cooling and misting, DIY mist cooling system simple for any applications.
We also separately supply the Fog misting nozzle, connectors, coupling, tubing and pumps.

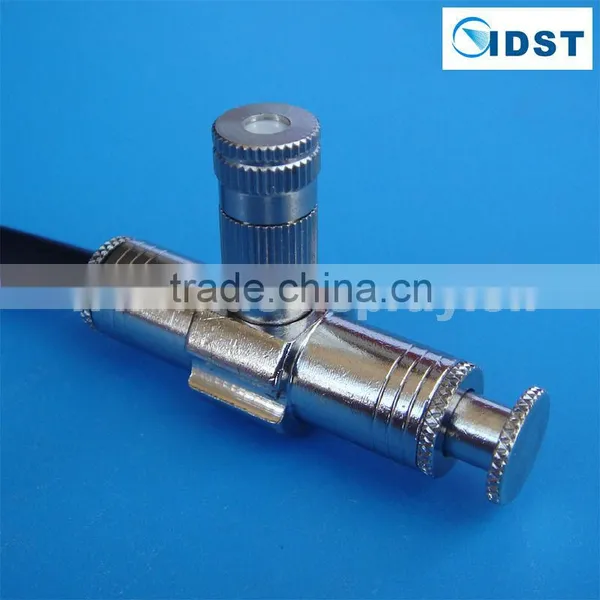

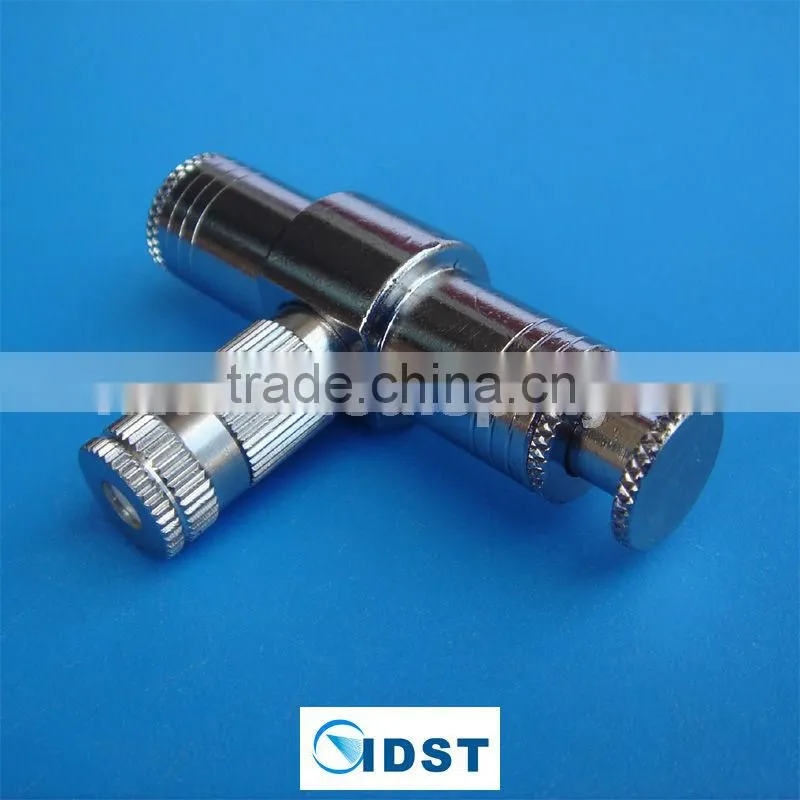

1. Fog Misting Nozzle:
Orifice diameter: 0.1mm up to 0.5mm
Working pressure: 6-70 bar
Body material: 304SS, brass and 316ss
orifice material: SS, ceramic and ruby
Inlet thread: 10/24, 12/24, 3/16 and 1/8

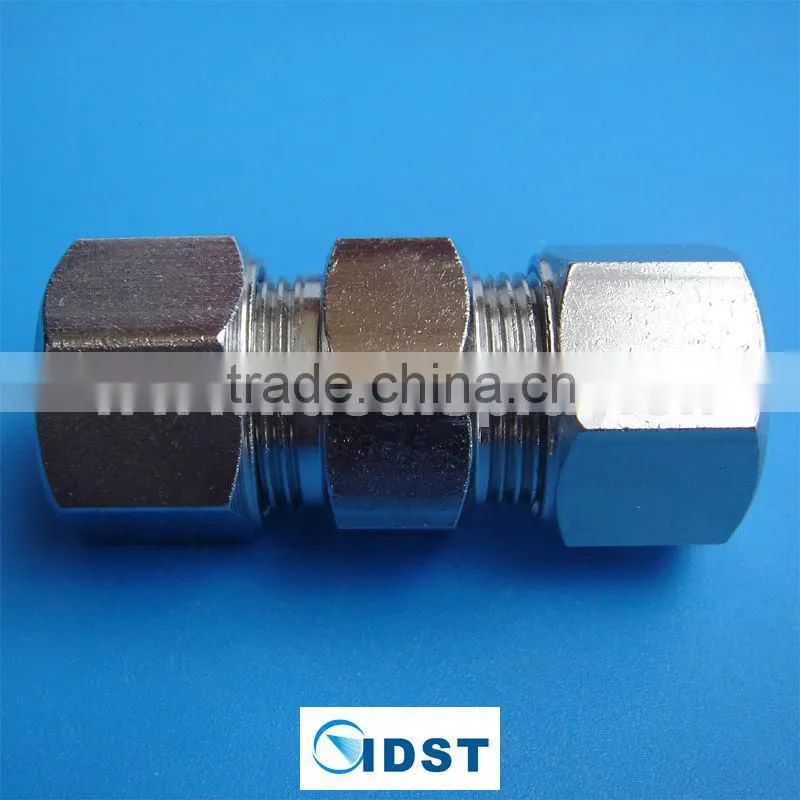

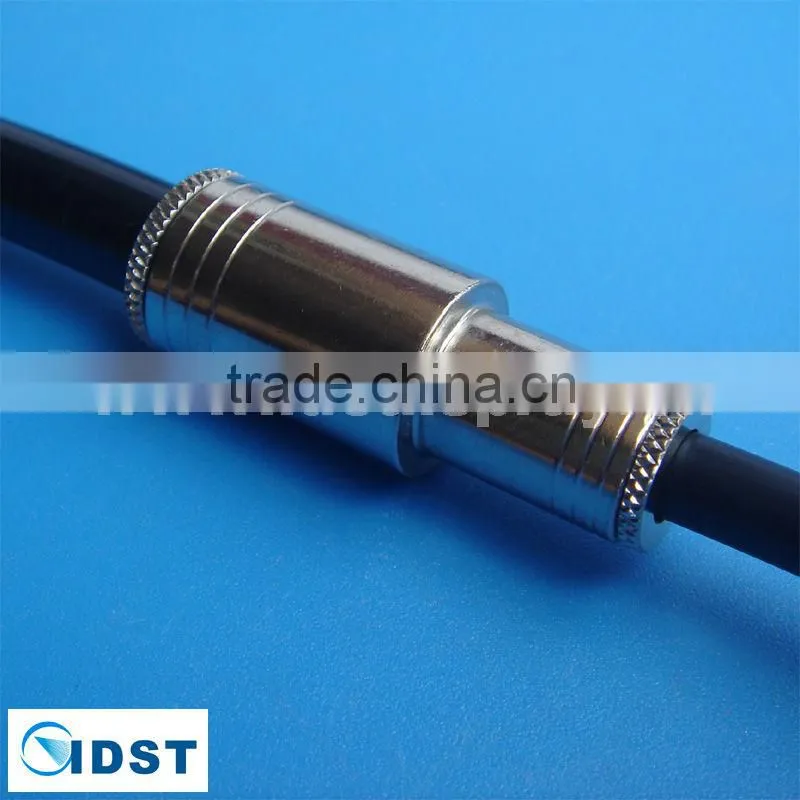

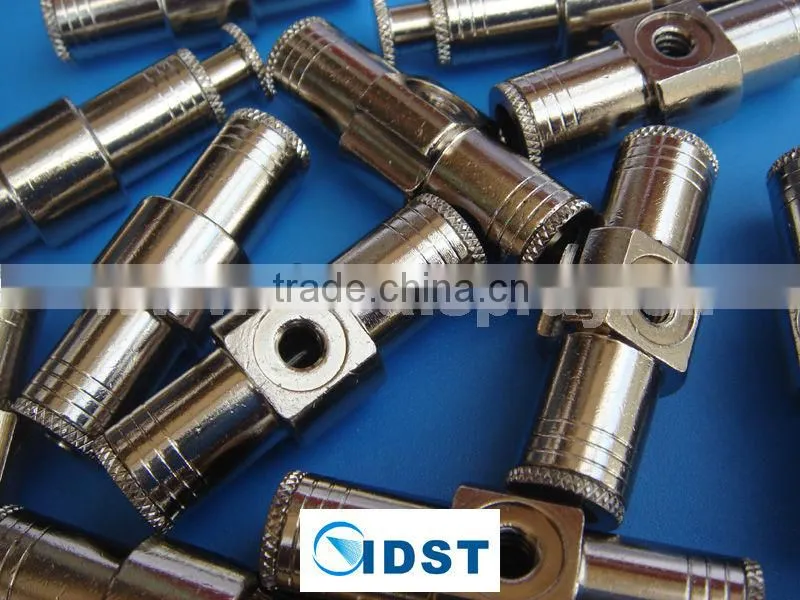

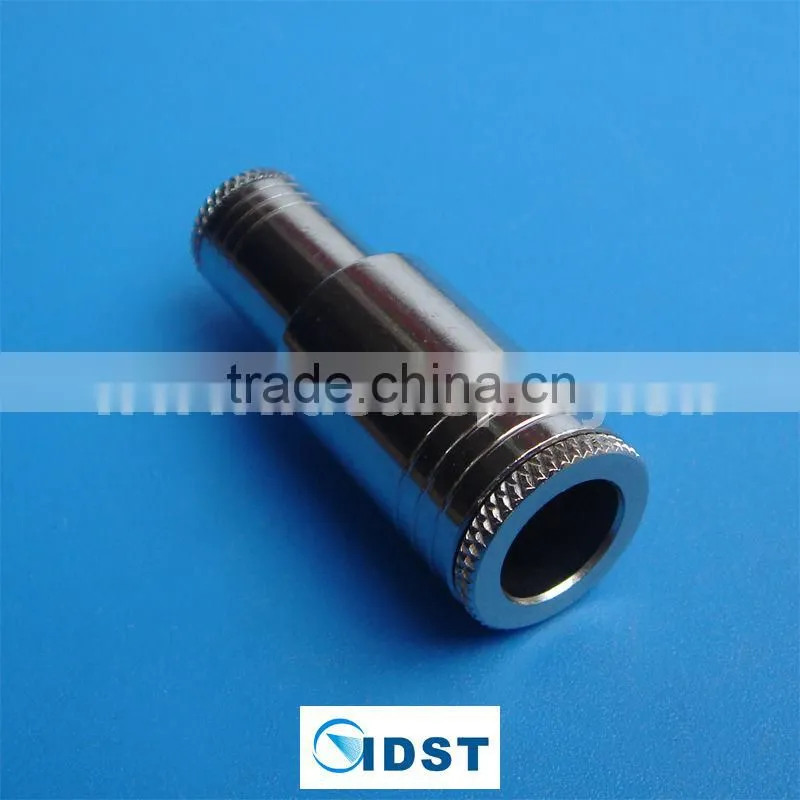

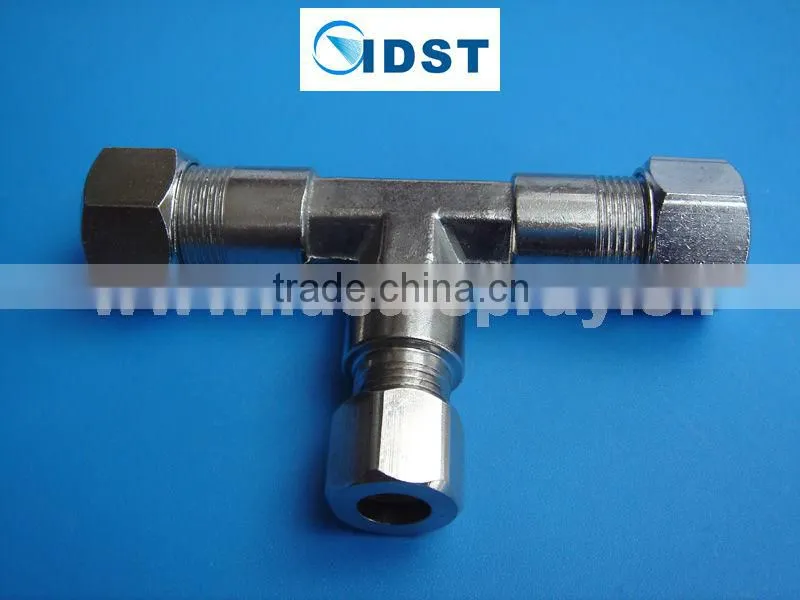

2. 3/8 Connectors,Fittings and Couplings:
Material: brass and SS
Nozzle thread: 10/24,12/24UNC
Tubing Size: 3/8" (9.52mm)
Working Pressure: 70bar/1000PSI
3. Nylon Tubing & PE Tubing:
Outside diameter: 3/8"
Working Presure: 70 bar up to 120 bar
Temperature:40C.degree
4. Misting Pump Capacity:
0.3LPM, 1LPM, 2LPM,3LPM,5LPM,6LPM,7LPM,9LPM,11LPM,12LPM,15LPM,17LPM,18LPM,21LPM,25LPM
5. Pump Specification:
Pump No. : HP
Pump : Plunger
Flow rate: 3.0L/min
Pressure: 60-80bar
Power: 800w
Rpm: 1400rpm
110 / 220 Volt - 50 / 60 HZ
6.Technical data sheet for Fog Nozzles:
Type |
Size dia./¢ |
Thread |
Pressure |
Flow Rate |
FGN10 |
0.10mm/0.004" |
1/8'' |
20-70bar |
0.016-0.040L/Min |
FGN15 |
0.15mm/0.006" |
1/8'' |
20-70bar |
0.029-0.046L/Min |
FGN20 |
0.20mm/0.008" |
1/8'' |
20-70bar |
0.049-0.089L/Min |
FGN30 |
0.30mm/0.012" |
1/8'' |
15-70bar |
0.065-0.145L/Min |
FGN40 |
0.40mm/0.016" |
1/8'' |
7-70bar |
0.056-0.178L/Min |
FGN50 |
0.50mm/0.02" |
1/8'' |
7-70bar |
0.077-0.248L/Min |
(1/8'' SS316 Fog nozzle) (Low Pressure Fog Nozzle)
We make complete fog/mist cooling system, e.g.: Fog Machine/Pump, High Pressure Pipe/Tubing, Thread Connetors and Slip Lock Fittings, Fog/mist Nozzles,water filter and all related Accessories.
Please call us or email to us, we will reply you soon!
Tel: +86 0755 81099407
E-mail address: sales at
7.Photo of High Pressure Misting Systems:
