Specifications
PET flake bottle recycling and washing Cleaning line1.Applicable:PET recycling
2.Output: 300~1000kg/h
3.CE standard
PRODUCT DESCRIPTION

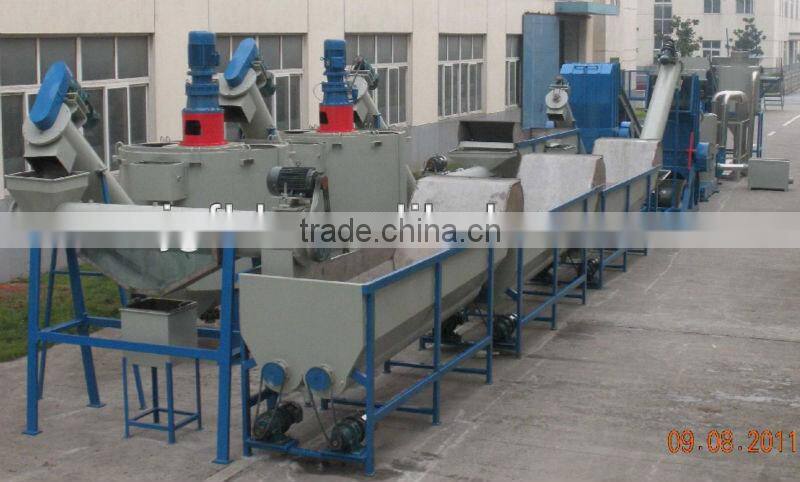

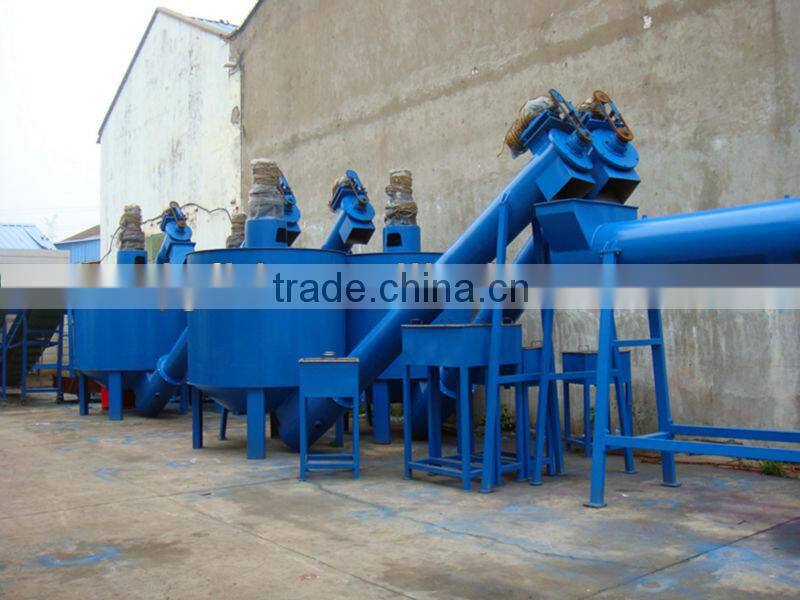

pet bottle recycling plant

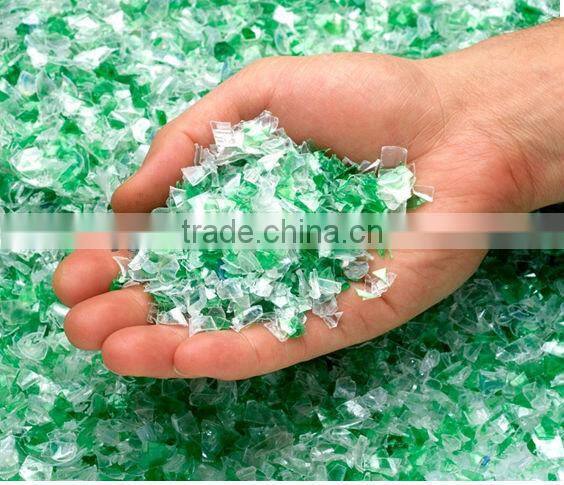

1,This PET bottle crushing, washing and drying production line can wash and recycle waste PET bottle flakes easily,which includes PE/PP labels, PVC labels, paper labels, HDPE cups, glue, mud, beverage leftover, oil, and scrap iron.
2, Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
3, the whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
4, Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles. The material from this equipment can be put into the granulating machine directly.
5, we can supply production line with capacity 300kg/h,500kg/h 1000kg/h 2000kg/h.
The whole equipment includes parts:
NO | ITEM | DESCRIPTION | SELECTIVITY |
1 | Prewasher | Remove the solid impurity which are water insoluble, such as handstone, sand, etc. It can also wash bottles' surface. | Optional |
2 | Bale Breaker | It is used in large capacity recycling line, and bottles are compressed in bale. | Optional |
3 | Belt Conveyer | Including the metal detector. | 1Necessary |
4 | Label Remover | Label removing efficienc more than 98% | Optional |
5 | Manual Select Plateform | Made according to workers' height, supply a suitable plate for selecting the left lables or some other impurity. | Optional |
6 | Belt Conveyer | Conveying the bottles into crusher. | 2Necessary |
7 | Crusher | With water, the material of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too. | 3Necessary |
8 | Screw Feeder | Conveying the flakes into friction washer. | Optional |
9 | Friction Washer | Scrubbing material in high-speed with water. | Optional |
10 | SCrew Floating Washer | Remove few remand paper, sand, label from material based on different density. | Optional |

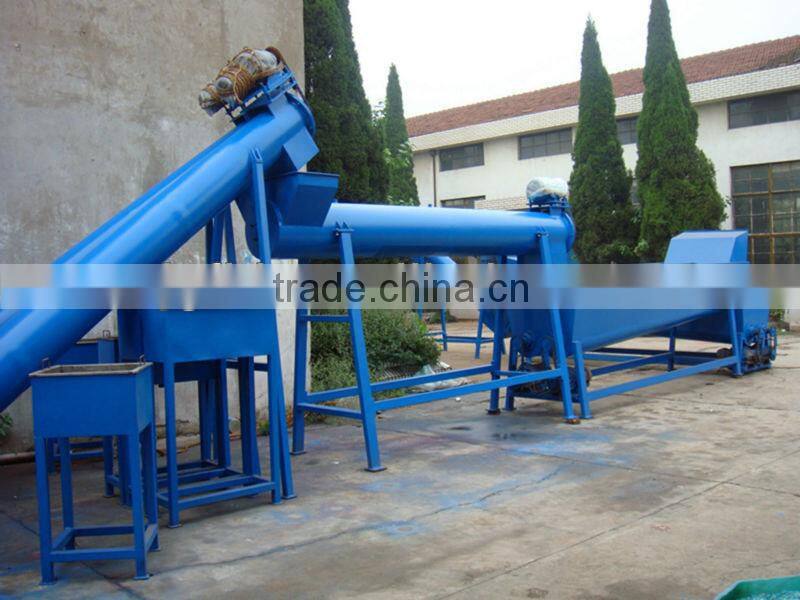

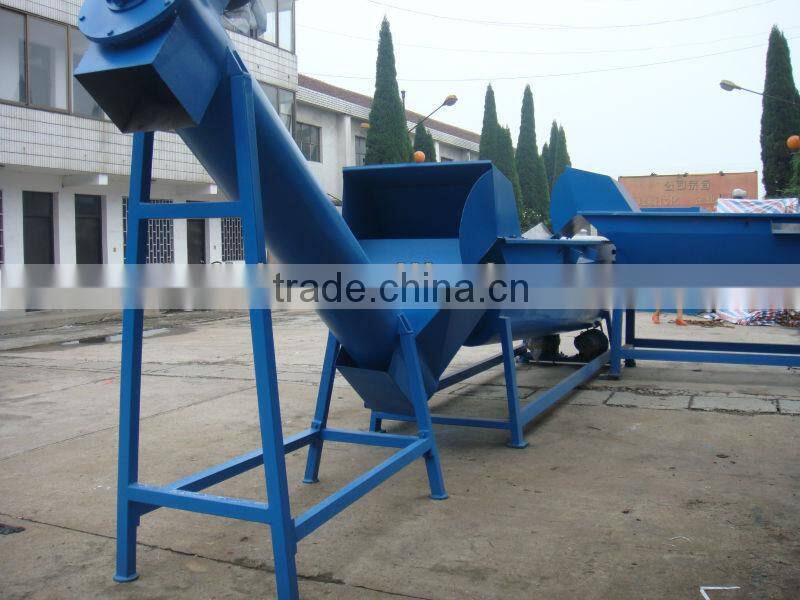

11 | Screw Feeder | Conveying the flakes into hot washer. | 4Necessary |

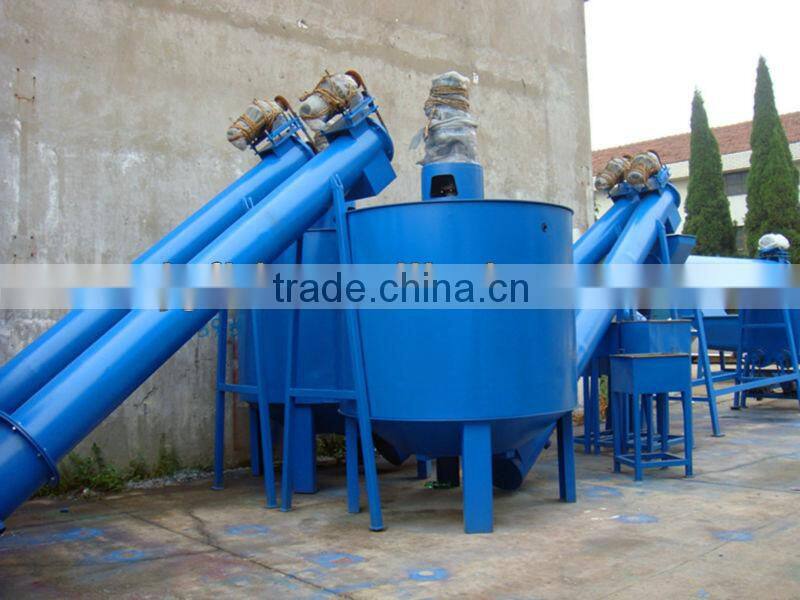

12 | Hot Washer | High temperature stirring washing with caustic soda. Water can be heated by steam or electric. | 5Necessary |
13 | Screw Feeder | Same as Item 8. | 6Necessary |
14 | Friction Washer | Same as Item 9. | 7Necessary |
15 | Screw Floating Washer | Same as Item 10. | 8Necessary |
16 | Dewatering Machine | High speed centrifuge drying. | 9Necessary |
17 | Drying System | Electric heating wind drying. | 10Necessary |
18 | Label Wind Separator | The last left impurity will be separated from flakes by the blower fan. | Optional |
19 | Silo | Store the final material. | 11Necessary |
20 | Electrical Control Panel | Adopts Siemens and DELIXI as main component. | 12Necessary |
Annotation: 1, some equipment can be increased or decreased as the dirty degree of the bottles and the capacity. More equipments you choose, such as hot washer, friction washer, floating washer, material will be cleaner.
2, the material can be made by the customers’ requirement. Normal are carbon steel or stainless steel.
Tell us your request,we can design according to your request.
If you want the final products is granules,we could equip the granulator/pelletizer line accordingly!
