Fog Mist System Slip Lock Connectors

Fog Mist System Slip Lock Connectors thumbnail-1
Fog Mist System Slip Lock Connectors photo-1
US$ 0.1 - 0.2 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IDST
Model Number:
SLF
Contact Supplier Request Quote Chat Now
Shenzhen Ideal Spray Technologies Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IDST
Model Number SLF
Garden Water Gun Type Nozzles
Material Metal
Metal Type Stainless Steel
Feature Variable Flow Controls, Variable Spray Patterns, Soft Grip

Specifications

Slip Lock Fittings(Quick Lock Fittings)
2:Application: Fog,Mist,Cooling System
3:Thread:3/8",10/24,12/24UNC
4.Diameter:9.52mm

 Fog Mist System Slip Lock Connectors--Anti-Drip Nozzle Fog Mist System Slip Lock ConnectorsFGC/FGS Mist Nozzle

Mist nozzle (anti-drip):
1.Material available: Brass, Stainless steel, Brass plated Nickel
2.Inlet thread size: 10/24UNC, 12/24UNC, 3/16', 1/8' etc.
3.Spraying Orifice Size:0.08mm, 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm

4.Capacity range: 0.0125L/min - 0.240L/min
5.Pressure range: 20-100bar

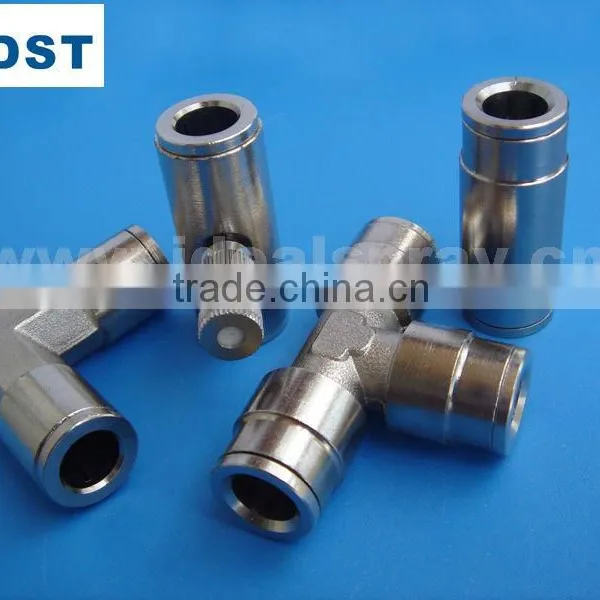

Slip Lock Fittings

1.Slip Lock Single hole:
-- Quick coupling for tube 3/8" Single hole thread 10/24" orifice
-- Quick coupling for tube 1/2" Single hole thread 10/24 orifice
Slip Lock Double Holes
--Slip Lock for tube 3/8"
--180 degree Double holes thread 10/24" orifice
--Slip Lock for tube 1/2"
-- 180 degree Double holes thread 10/24" orifice

2.Slip Lock Tee Way:
-- Slip Lock for tube 3/8" / 3/8"
-- Quick bushing for tube 3/8"
-- Quick coupling for tube 1/2" / 1/2"
-- Quick bushing for tube 1/2"

3.Slip Lock End:
-- Slip Lock for tube 3/8" End plug
-- Slip Lock for tube 1/2" End plug

4. Flexible Tubing:
--Nylon tubing of OD 3/8"(9.52mm), 120bar/1800PSI
--PE tubing of OD 3/8"(9.52mm), 70bar/1000PSI

5. Water filter:
--5",10" and 20" water filters for selection.

6. Clamp:
-- clamp for 3/8" tubing or clamp for nozzle connector

7. Slip Lock Elbow:
-- 90 degree elbow for the 3/8" tubing

8. Cutter:
-- Special hose tubing cutter

9. Slip Lock Ball valve:
-- 3/8" high pressure ball valve

10. Solenoid Valve:
-- high pressure solenoid valve, normally open and close type, 1000PSI

11. Fog Machine/pump:
--1LPM to 25LPM, 110V/220V/380V, 50HZ/60HZ, single/three-phase voltage

Misting system and fogging system application:
agriculture, animal, industrial,outdoor,horticulture, horticulture, poultry,dairy, amusement park, greenhouse, hotel, playground, piazza, verandah, barn, textile-factory etc.

Misting Nozzle Technical data:

Part No.

Size dia./¢

Thread

Pressure

Flow Rate

FGC10

0.10mm/0.004"

10/24,12/24,3/16"

20-70bar

0.016-0.040L/Min

FGC15

0.15mm/0.006"

10/24,12/24,3/16"

20-70bar

0.029-0.046L/Min

FGC20

0.20mm/0.008"

10/24,12/24,3/16"

20-70bar

0.049-0.089L/Min

FGC30

0.30mm/0.012"

10/24,12/24,3/16"

15-70bar

0.065-0.145L/Min

FGC40

0.40mm/0.016"

10/24,12/24,3/16"

7-70bar

0.056-0.178L/Min

FGC50

0.50mm/0.02"

10/24,12/24,3/16"

7-70bar

0.077-0.248L/Min

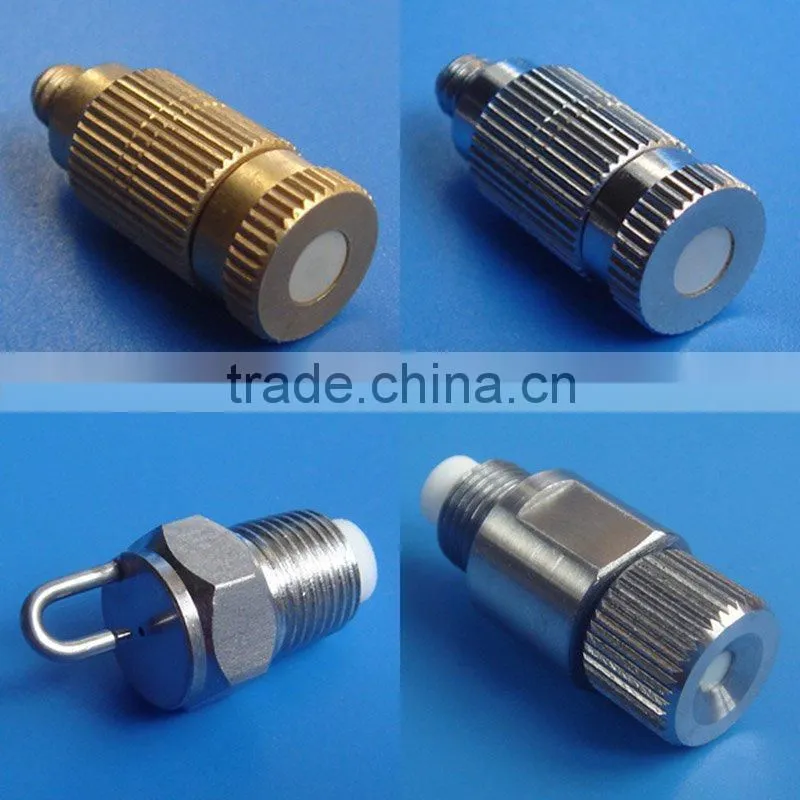

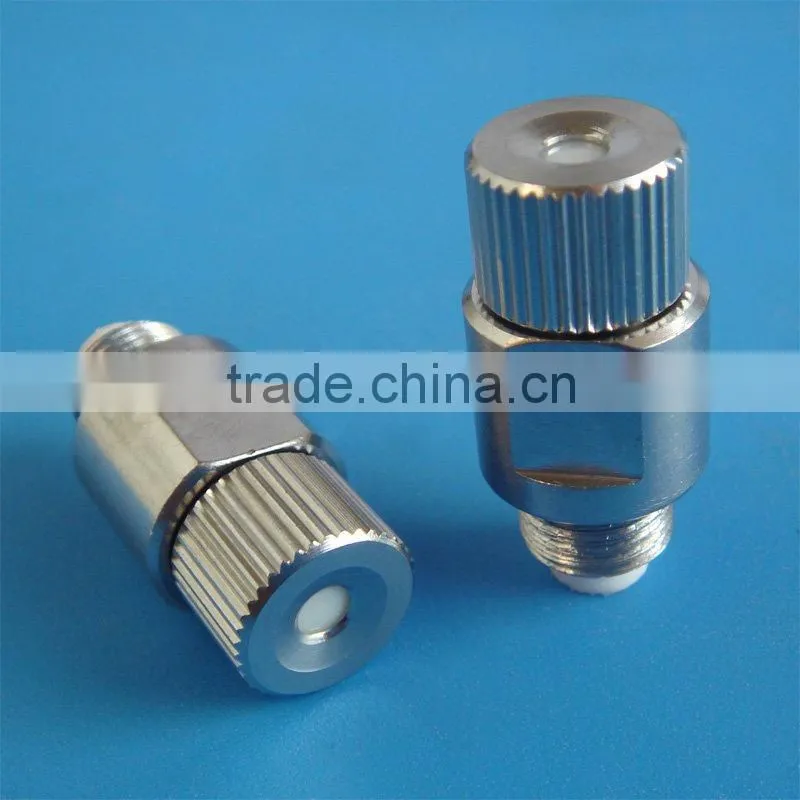

 Misting Nozzle Photo:

 Fog Mist System Slip Lock Connectors   Fog Mist System Slip Lock Connectors   Fog Mist System Slip Lock Connectors
