Specifications
self adhesive led light1.0.8 thermal conductivity
2.grey thixotropic paste
3.apply in LED ceiling lamps, bulbs
4.80g/tube

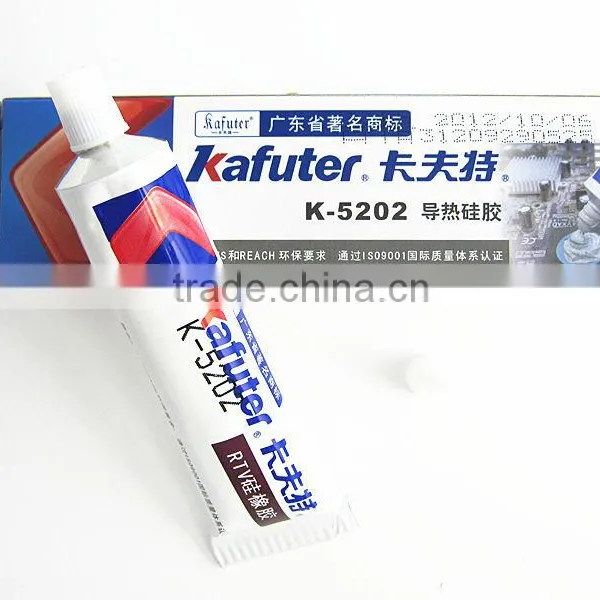

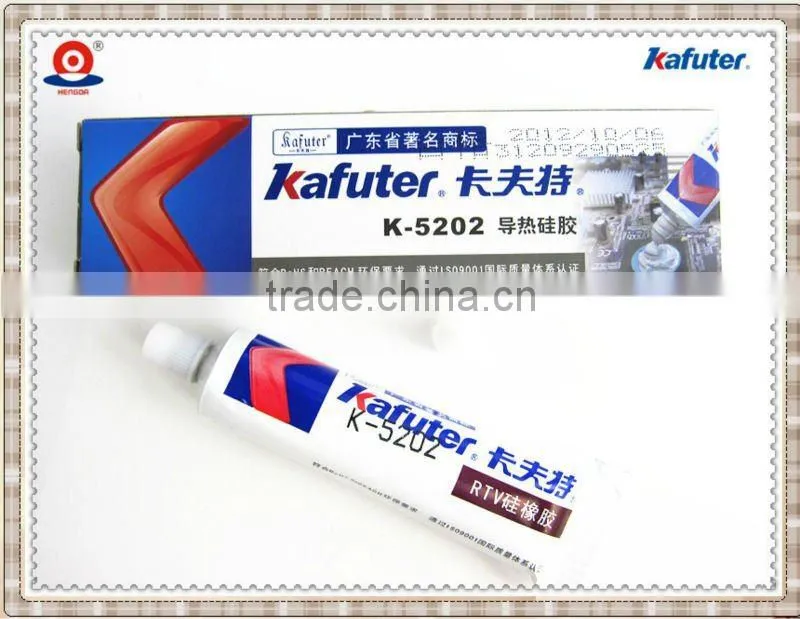

Kafuter-5202 Self Adhesive LED Light
(for LED Ceiling Lamps, Daylight Tubes, LED Bulbs)
Features
1.K-5202 is one-part, room cure, a reinforced thermally conductive silicone elastomer with great adhesion, insulation and dissipation.
2.Excellent in cold and high alternating resistance (-60°c~ 280°c).
3.No peeling and good dissipating after a long time usage.
4.With high bonding strength, the shear strength≥18kg/cm3, and peel strength ≥ 6kg/cm3
5.Packing in soft metal tube.
Application
Filling and bonding the CPU, radiators, thyristor control modules, high-power electronics modules and radiators in LED High-Power street lamps, LED bulbs, mine lamps, and other lights or lamterns which requires high thermal conductivity.
Properties
|
Uncured |
Property Name |
K-5202 |
|
Appearance |
grey |
||
Viscosity (cp) |
paste |
||
Density(g/cm3) |
1.60 |
||
Initial Curing Time(25°c, min) |
≤30 |
||
|
Cured |
Mechanical Properties |
Tensile Strength (Mpa) |
≥2.5 |
Elongation At Break (%) |
≥100 |
||
Shear Strength (Mpa) |
≥1.5 |
||
Hardness(shore A) |
45~55 |
||
Working Temp (°c) |
-60~280 |
||
|
Electrical Properties |
Dielectric Strength(kv/mm) |
≥20 |
|
Permittivity (@60Hz) |
2.8 |
||
Volume Resistivity (Ω.cm) |
1×1015 |
||
Coefficient of Thermal Conductivity(w/m.k) |
0.80 |
||
Usage
Preparation
Clean the un-bonded or uncoated surfaces by removing the rust, ash, and oil, etc.
Application
Pierce the opening with the tip of the cap. Fix the nozzle, and coat the clean surface evenly with the adhesives, then bond the two surfaces.
Curing Condition
The curing progress is from outer surface into inner surface. The elastomer can get cure in the depth of 2~4mm in 24 hours (at room temperature, 55% moisture), if the position of the bonded parts is too deep or the temperature is too low, the full curing time will be extend.
Advise user preparing enough time to let elastomer get full cure in order to stable its properties for the next progress.
Attention
1. After the application, screw its nozzle tightly and store in dry and cool place for next time using.
2. Some cured adhesives around the opening when you use it again, just remove the cured, and use the uncured.
Package 80g/ tube
Storage
Store in cool and dry place, the shelf life is 12 months (≤25°c)
