Help CenterPVC Slip Fittings
Related Products
Specifications
Slip Lock Fittings(Quick Lock Fittings)2:Application: Fog,Mist,Cooling System
3:Thread:3/8",10/24,12/24UNC
4.Diameter:9.52mm
--Anti-Drip Nozzle FGC/FGS Mist Nozzle
Mist nozzle (anti-drip):
1.Material available: Brass, Stainless steel, Brass plated Nickel
2.Inlet thread size: 10/24UNC, 12/24UNC, 3/16', 1/8' etc.
3.Spraying Orifice Size:0.08mm, 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm
4.Capacity range: 0.0125L/min - 0.240L/min
5.Pressure range: 20-100bar
Slip Lock Fittings
1.Slip Lock Single hole:
-- Quick coupling for tube 3/8" Single hole thread 10/24" orifice
-- Quick coupling for tube 1/2" Single hole thread 10/24 orifice
Slip Lock Double Holes
--Slip Lock for tube 3/8"
--180 degree Double holes thread 10/24" orifice
--Slip Lock for tube 1/2"
-- 180 degree Double holes thread 10/24" orifice
2.Slip Lock Tee Way:
-- Slip Lock for tube 3/8" / 3/8"
-- Quick bushing for tube 3/8"
-- Quick coupling for tube 1/2" / 1/2"
-- Quick bushing for tube 1/2"
3.Slip Lock End:
-- Slip Lock for tube 3/8" End plug
-- Slip Lock for tube 1/2" End plug
4. Flexible Tubing:
--Nylon tubing of OD 3/8"(9.52mm), 120bar/1800PSI
--PE tubing of OD 3/8"(9.52mm), 70bar/1000PSI
5. Water filter:
--5",10" and 20" water filters for selection.
6. Clamp:
-- clamp for 3/8" tubing or clamp for nozzle connector
7. Slip Lock Elbow:
-- 90 degree elbow for the 3/8" tubing
8. Cutter:
-- Special hose tubing cutter
9. Slip Lock Ball valve:
-- 3/8" high pressure ball valve
10. Solenoid Valve:
-- high pressure solenoid valve, normally open and close type, 1000PSI
11. Fog Machine/pump:
--1LPM to 25LPM, 110V/220V/380V, 50HZ/60HZ, single/three-phase voltage
Misting system and fogging system application:
agriculture, animal, industrial,outdoor,horticulture, horticulture, poultry,dairy, amusement park, greenhouse, hotel, playground, piazza, verandah, barn, textile-factory etc.
Misting Nozzle Technical data:
Part No. |
Size dia./¢ |
Thread |
Pressure |
Flow Rate |
FGC10 |
0.10mm/0.004" |
10/24,12/24,3/16" |
20-70bar |
0.016-0.040L/Min |
FGC15 |
0.15mm/0.006" |
10/24,12/24,3/16" |
20-70bar |
0.029-0.046L/Min |
FGC20 |
0.20mm/0.008" |
10/24,12/24,3/16" |
20-70bar |
0.049-0.089L/Min |
FGC30 |
0.30mm/0.012" |
10/24,12/24,3/16" |
15-70bar |
0.065-0.145L/Min |
FGC40 |
0.40mm/0.016" |
10/24,12/24,3/16" |
7-70bar |
0.056-0.178L/Min |
FGC50 |
0.50mm/0.02" |
10/24,12/24,3/16" |
7-70bar |
0.077-0.248L/Min |

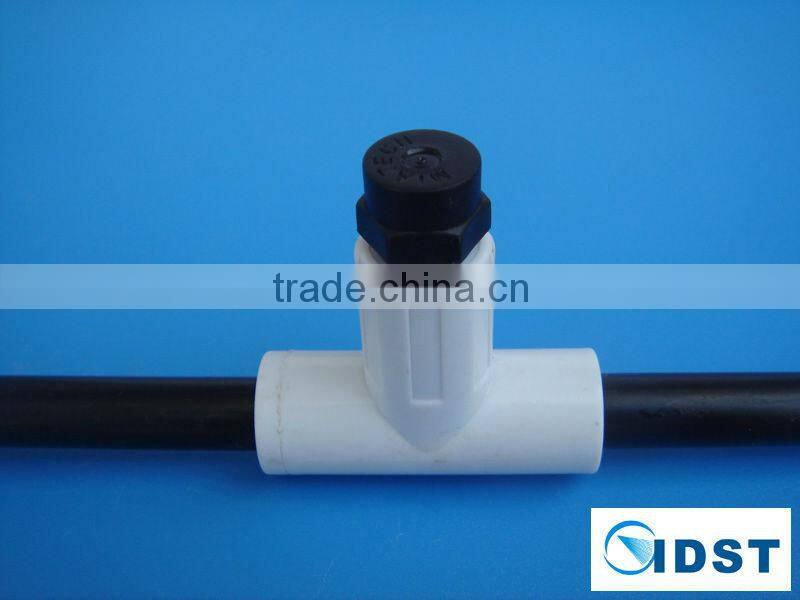

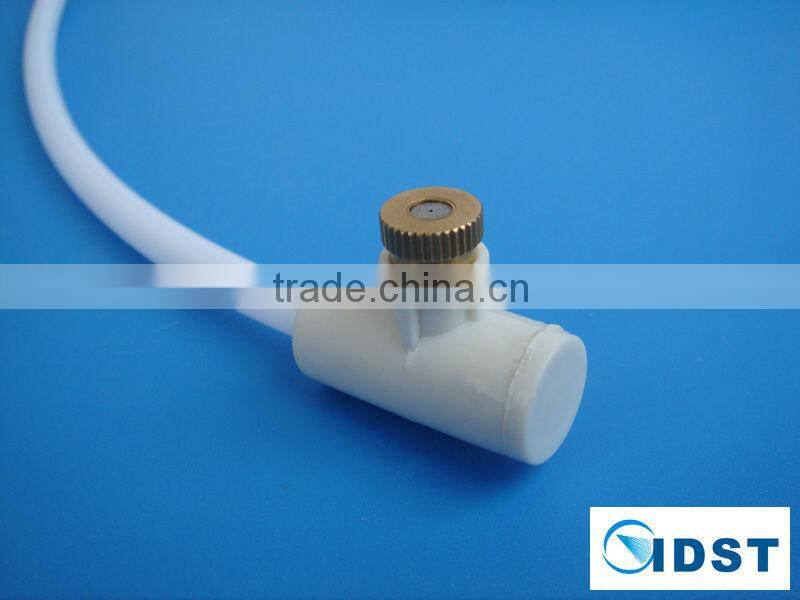

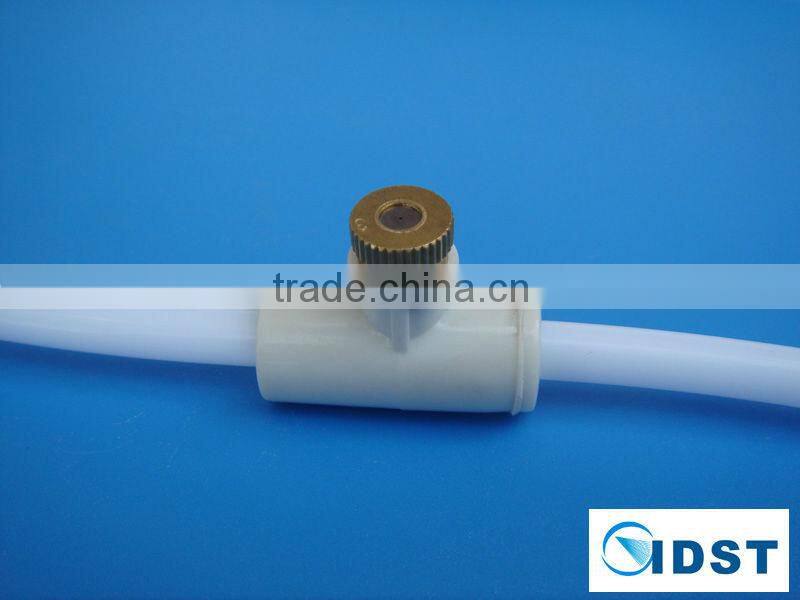

Misting Nozzle Photo:
