Specifications
electrically conductive adhesive1.white elastomer
2.one-part, room cure
3.thermal conductive up to 1.2
4.80g/tube

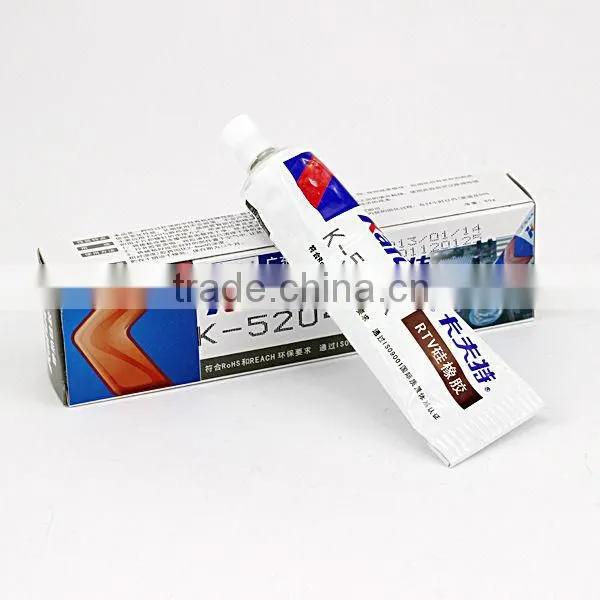

LED Bulb Kafuter K-5204k 1.6w/m.k self adhesive heating pad thermally conductive adhesive electrically conductive adhesive
FEATURES

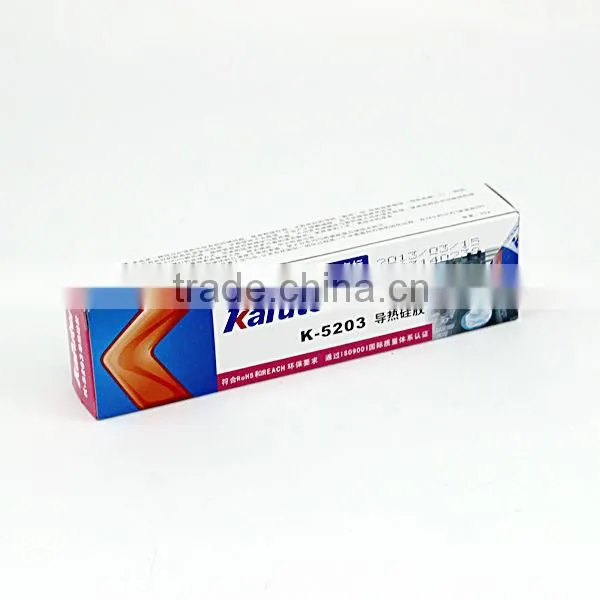

K-5203 is a reinforced thermally conductive silicone elastomer with great adhesion, insulation and dissipation.
(1) one part, room cure, packing in soft metal tube.
(2) Excellent in cold and high alternating resistance (-60°c~ 280°c).
APPLICATION

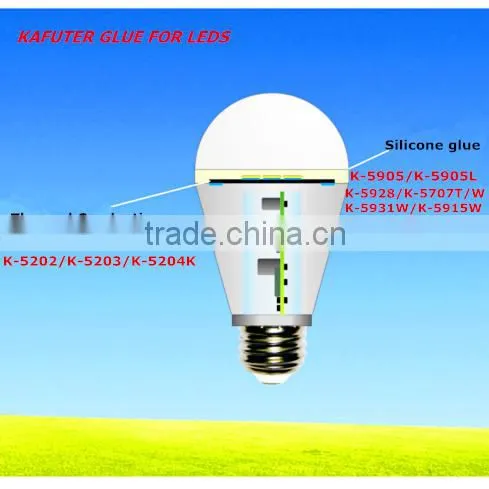

Filling, bonding, and sealing in LED BULBS, LED lights
1. the gap between CPU and raditors, heat sink
2. the gap between thyristor control modules and radiator
3. filling of high-power electronics modules and radiators,etc.
TYPICAL PROPERTIES
|
Cured |
Property Name |
K-5203 |
|
Appearance |
white |
||
Viscosity (cp) |
thixotropic elastomer |
||
Density(g/cm3) |
2.0~2.5 |
||
Initial Curing Time(25°c, min) |
≤30 |
||
|
Uncured |
Mechanical Properties |
Tensile Strength (Mpa) |
≥2.5 |
Elongation At Break (%) |
≥100 |
||
Shear Strength (Mpa) |
≥1.5 |
||
Hardness(shore A) |
50~65 |
||
Working Temp (°c) |
-60~280 |
||
|
Electrical Properties |
Dielectric Strength(kv/mm) |
≥18 |
|
Permittivity (@60Hz) |
2.8 |
||
Volume Resistivity (Ω.cm) |
1×1015 |
||
Coefficient of Thermal Conductivity(w/m.k) |
1.2 |
||
HOW TO USE
Preparation
Clean the un-bonded or uncoated surfaces by removing the rust, ash, and oil, etc.
Application
Pierce the opening with the tip of the cap. Fix the nozzle, and coat the clean surface evenly with the adhesives, then bond the two surfaces.
Curing Condition
a.The curing progress is from outer surface into inner surface.
b. The elastomer get cure with the depth of 2~4mm in 24 hours (at room temperature, 55% moisture). if the bonded parts is too deep (especially the parts not easy to contact with air) or the temperature is too low, the full curing time will be extend.
Advise user preparing enough time to let elastomer get full cure in order to keep the properties stably.
ATTENTION
1. After the application, screw its nozzle tightly and store in dry and cool place for next time using.
2. There may be some cured gel around the opening when you use it again, just remove the cured, and use the uncured.
PACKAGING 80g/ tube
STORAGE
Store in cool and dry place, the shelf life is 12 months (≤25°c)
