Wood plastic powders mixer unit

Specifications

Plastic mixer unit
1.mixing fast and even
2.easily cleaning,compact structure
3.steady performance
4.easy operate

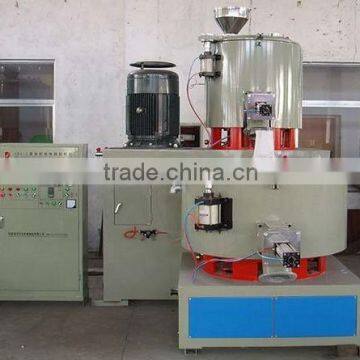

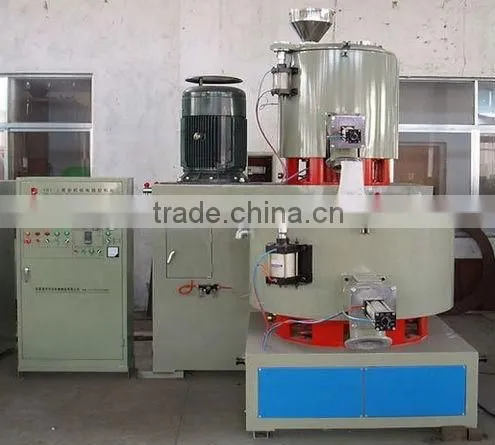

Heating and Cooling Mixing Machine

Application & Apply Range



It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.

It is heating mixing has self-friction electric heating

Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming

It has features of contact construction, good performance

They have passed the test of dynamic balance and static equilibrium

Main technical standards:

Model	Total volume(L)	Effective volume(L)	Motor power(kw)	Main shaft speed(rpm)	Heating method	Discharge method
SRL-Z50/100	50/100	35/75	7/11/5.5	750/1500/180	Self-friction or electric heating	Pneumatics
SRL-Z100/200	100/200	70/140	11/22/7.5	650/1300/150
SRL-Z200/500	200/500	140/250	30/42/11	550/1100/90
SRL-Z300/600	300/600	210/420	40/55/11	475/950/90
SRL-Z500/1000	500/1000	350/700	47/67/15	430/860/60
SRL-Z1000/2000	1000/2000	560/1100	60/90/22	370/740/50
