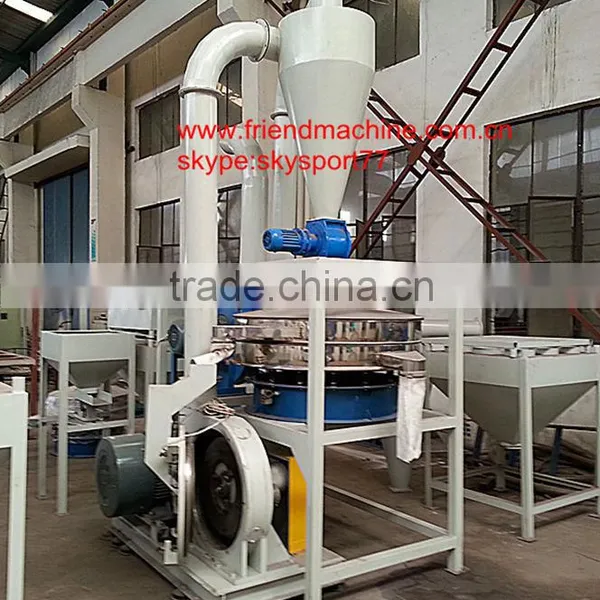

PVC HDPE PP Powder Grinder Machine

Name: PVC HDPE PP Powder Grinder Machine
Brand: Friendmachinery
SKU: 124726733
Availability: InStock

US$ 8,100 - 120,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Friendmachinery

Model Number:

MF-600

Zhangjiagang Friend Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Friendmachinery

Model Number MF-600

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.low price/good quality
2.double side grinding disc
3.capacity:200-400kg
4.full automatic
Plastic Scrap grinder Machine

PVC HDPE PP powder grinder machine

Plastic Scrap grinder Machine

Performance Characteristics

The machine is our latest self-developed grinding mill; its features are as follows:

Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.
The dust collector is added to effectively reduce dust pollution.
The discharging of the main fan reduces labor intensity of operating workers.
The door cover of the host can be opened for convenience of cutters.
Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example, the part of PE and ABS can be grinded by this machine.

The powder mesh is adjustable (20-150mesh).

The main technical parameters

Type	MF-600
Capacity	300-400kg/h
Disk blade material	SKD11
Screen diameter	20mesh and 150mesh
Drive motor	45kw
Main motor rev	2970r/min
Diameter of siever	800mm
Motor manufacturer	HUAXIN brand
Blower motor	5.5kw
Pipe material	All stainless steel
Cooling method	Water cooling, one is enter, another is out
Air lock motor	0.75kw
Separation screen motor	0.55kw
