High-speed Plastic Grinder/ Plastic Milling Machines

Name: High-speed Plastic Grinder/ Plastic Milling Machines
Brand: Friend
SKU: 124726481
Availability: InStock

US$ 12,000 - 13,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Friend

Zhangjiagang Friend Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Friend

Model Number MF-500

Use Waste Plastic Crusher

Plastic Type Other, PVC/PP/PE/PET/LDPE/HDPE

Shaft Design Single

Power 22-55KW

Capacity 100-400kg/h

Voltage 380V 50HZ

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

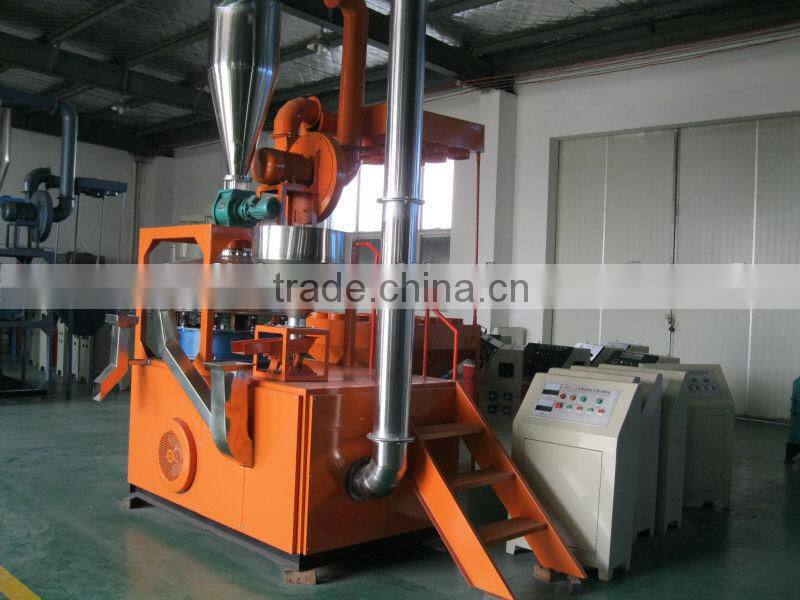

high-speed plastic grinder/ plastic milling machine
1.Low energy consumption and high output
2.Adjustment of the grinding Disc

plastic milling machine/ plastic grinding machine

This palstic grinding machine can grind low-hardness & medium-hardness PVC palstic, high-density PE, and other palstic materials

Feature

1.Compact and space-saving design

2.Low energy consumption and high output

3.Adjustment of the grinding Disc gap from outsaide

4.Machines by handle and keep the Disc balance

5.Easy changing of the grinding knife

6.Main bearing has water cooling system

The machine parameters

Type	MF-500
Capacity	300-400kg/h
Screen diameter	20mesh - 120mesh
Disk material	SKD-11
Drive motor	35kw
Main motor rev	2970r/min
Diameter of siever	700mm
Motor manufacturer	HUAXIN brand
Blower motor	5.5kw
Pipe material	All stainless steel
Cooling method	Water cooling, one is enter, another is out
Air lock motor	0.75kw
Separation screen motor	0.55kw
