Plastic Grinder/plastic Pulverizer/Milling Machine

Name: Plastic Grinder/plastic Pulverizer/Milling Machine
Brand: Friendmachinery
SKU: 124725983
Availability: InStock

US$ 3,000 - 7,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Grinder

Product Type:

Fertilizer

Zhangjiagang Friend Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Grinder

Product Type Fertilizer

Place of Origin Jiangsu, China

Brand Name Friendmachinery

Model Number Milling machine

After-sales Service Provided Overseas service center available

Warranty one year

Specifications

1.High output,low consumption.
2.Competitive price.
3.Warranty one year.
4.Easy coperate.

Performance Characteristics

The machine is our latest self-developed grinding mill; its features are as follows:

Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.
The dust collector is added to effectively reduce dust pollution.
The discharging of the main fan reduces labor intensity of operating workers.
The door cover of the host can be opened for convenience of cutters.
Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example, the part of PE and ABS can be grinded by this machine.
The powder mesh is adjustable (20-150mesh).

Main Technical Parameter

Blades Disk	1,outer diameter: 483mm±1mm
Tooth Plate	1 set of 12 (High-quality alloy steel, the hardness of 55-58)
Rotary Blade	1 set of 24 (High-quality alloy steel, the hardness of 52-55)
Main Motor Rev	2950r/min
Main Motor Power	37 kw
Draft Fan	3kw
Rotary Valve	0.75kw
Output	PVC 20-100 mesh 220-280 kg/h HDPE 20-80 mesh 60-150 kg/h
Dimensions	590014502900mm
Weight	1280 kg

Mechanical Structure and Operational Principle

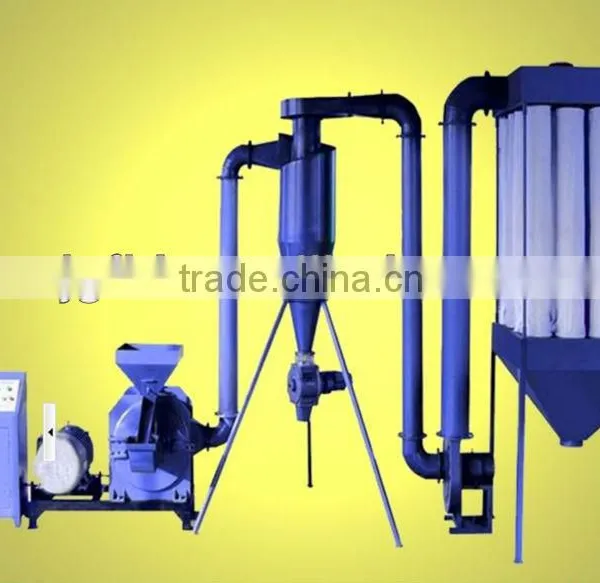

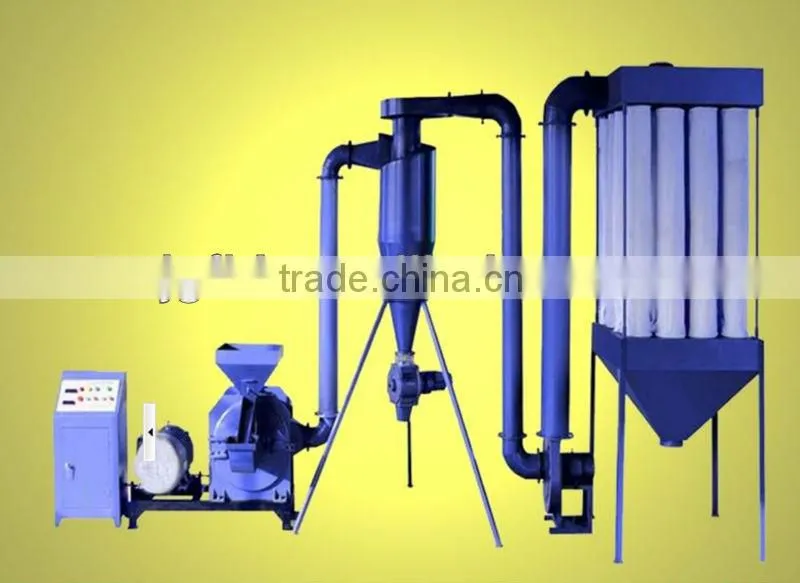

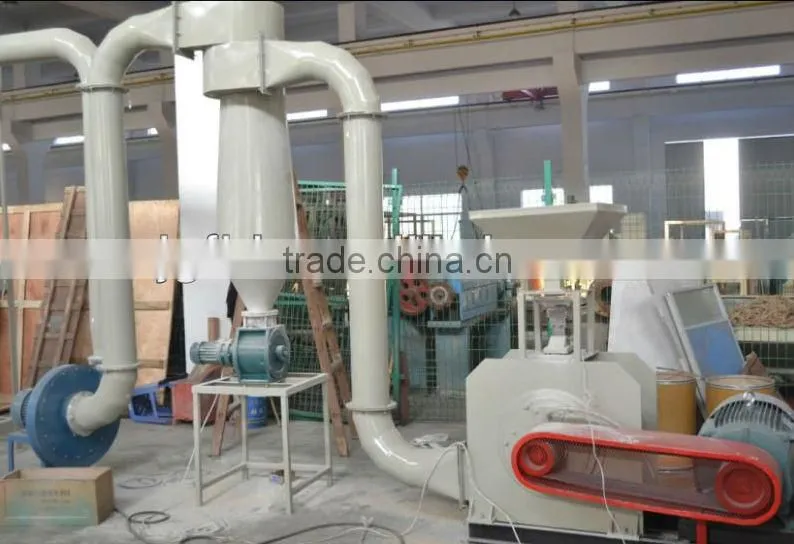

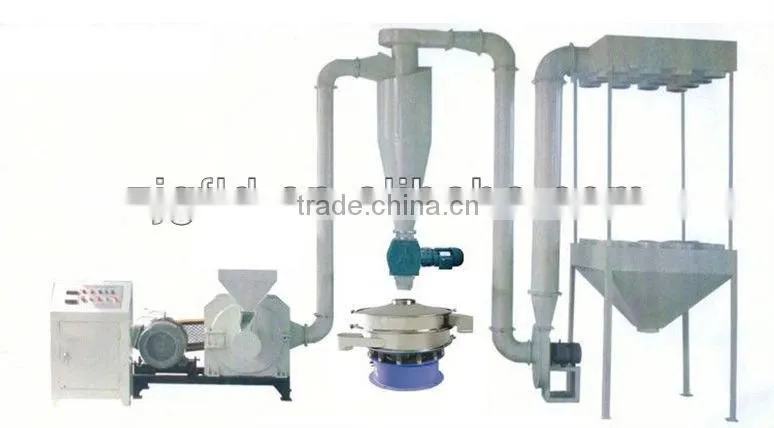

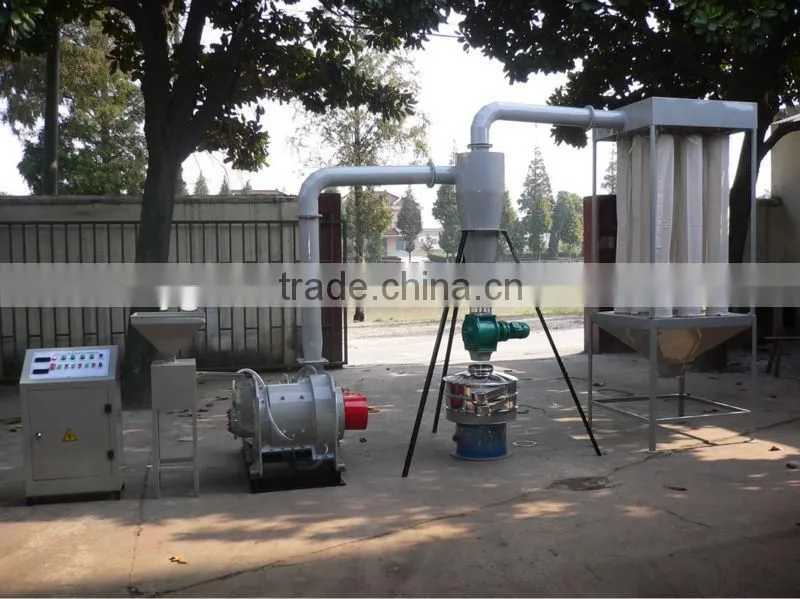

The machine is composed of hopper, cabinet, main shaft, capstan, reclaiming fan blower, dust collecting machine, machine frame, motor, electric apparatus box and so on.
Operating principle: the crashing materials get into the main frame through feeding skip. With the tail-wagging airstreams produced by the tail-wagging of the capstan, the grain-shaped materials tail-wagging in the crocus room, colliding with the board and cutting blades poignantly. After they are crashed, they were sent into dust-collecting bagging through reclaiming fan blower.
