Plastic Miller/plastic Pulverizer/plastic Grinder Machine

FOB Price

US$ 5,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Friend Machinery	Model Number	Plasitc Pulverizer
Use	Waste Plastic Crusher	Plastic Type	PVC
Shaft Design	Single	Power	high
Capacity	well	Voltage	According to request
Certification	CE ISO	After-sales Service Provided	Overseas service center available

SMF-500waste plastic pulverizer
CE ISO
200-400kg/h
shake feeder,cyclone separator
connect pipes,filter,good working

High-speed Mini Plastic Grinder

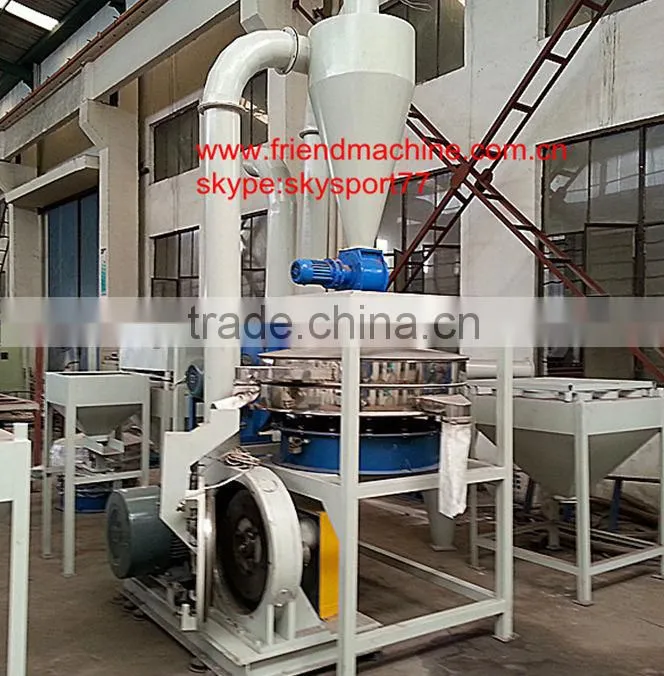

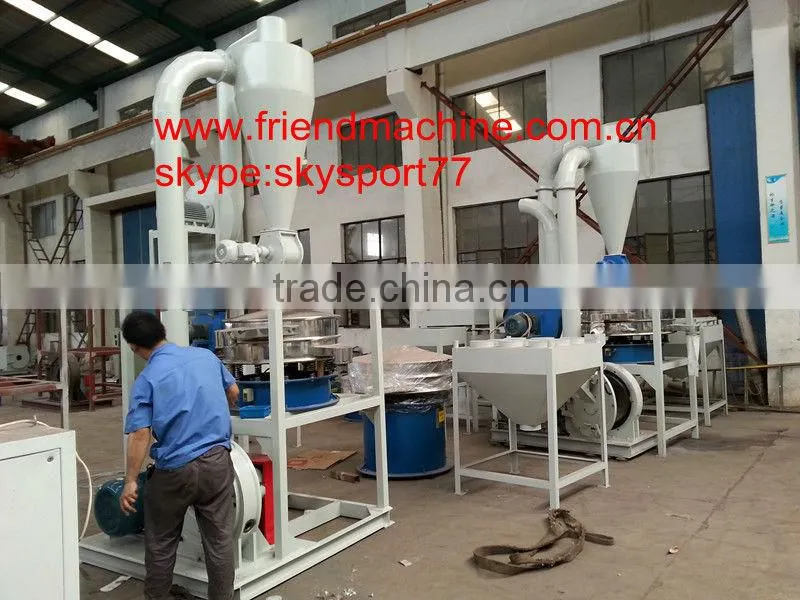

plastic miller/plastic pulverizer/plastic grinder machine

SMF-500waste plastic pulverizer

Performance Characteristics

The machine is our latest self-developed grinding mill; its features are as follows:

Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.
The dust collector is added to effectively reduce dust pollution.
The discharging of the main fan reduces labor intensity of operating workers.
The door cover of the host can be opened for convenience of cutters.
Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics. For example, the part of PE and ABS can be grinded by this machine.
The powder mesh is adjustable (20-150mesh).

Main Technical Parameter SMF-500Mliing machine

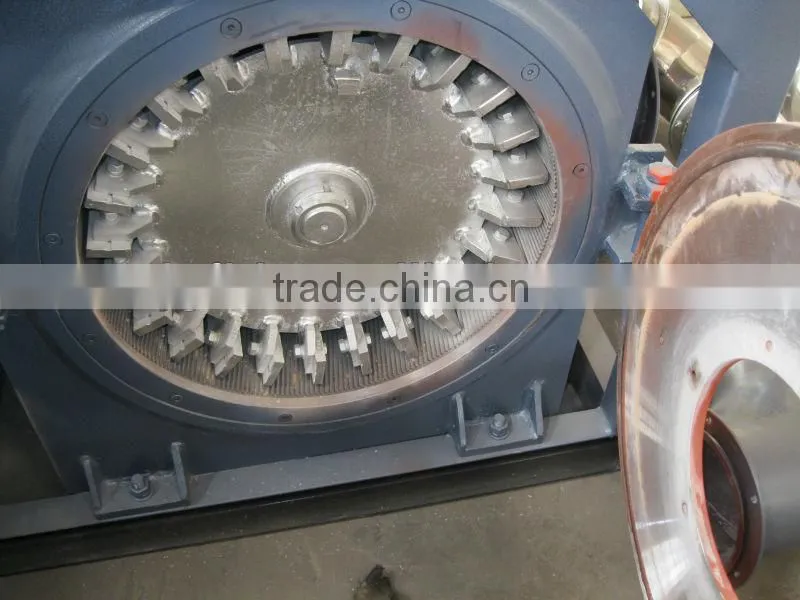

Blades Disk	1,outer diameter: 483mm±1mm
Tooth Plate	1 set of 12 (High-quality alloy steel, the hardness of 55-58)
Rotary Blade	1 set of 24 (High-quality alloy steel, the hardness of 52-55)
Main Motor Rev	2950r/min
Main Motor Power	37 kw
Draft Fan	3kw
Rotary Valve	0.75kw
Output	PVC 20-100 mesh 220-280 kg/h HDPE 20-80 mesh 60-150 kg/h
Dimensions	250030004000mm
Weight	1280 kg

Zhangjiagang Friend Machinery Co., Ltd.: Contact nameWei Yuan
Chat Now; Phone86-512-58551998, 18901568633; AddressNo.3 Jinle Road, Jinfeng Town, Zhangjiagang City,Jiangsu Province, China, Suzhou, Jiangsu
