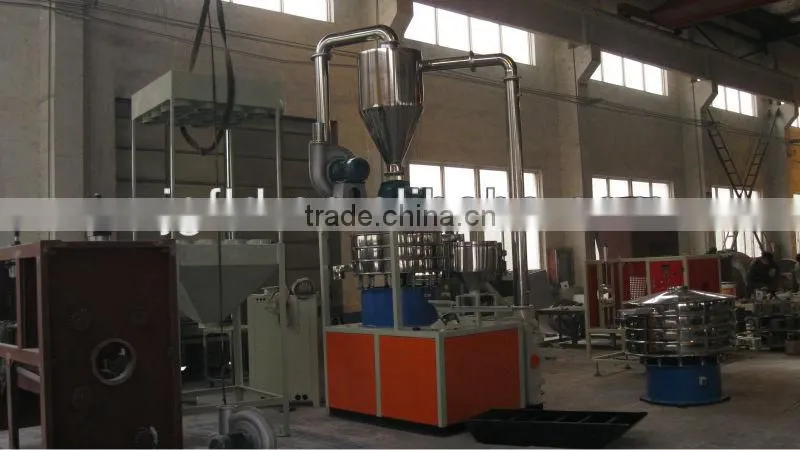

Plastic Powder Grinder Machine /Plastic Pulverizer
US$ 6,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Friend
Model Number:
SMF, SMF-500
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC PE Grinder Machine/Plastic Powder Milling MachineUS$ 2,000 - 10,000MOQ: 1 Set -
PVC PE PP Plastic Powder Pulverizer MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
MF-500 Plastic Milling Machine/Plastic PulverizerUS$ 10,000 - 50,000MOQ: 1 Set
-
SMF400 Plastic Milling Machine/Plastic Pulverizer/GrinderUS$ 1,000 - 3,000MOQ: 1 Set
-
SMF-400 Plastic PVC Milling Machine/grinder MachineUS$ 2,000 - 4,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Friend
Model Number
SMF, SMF-500
After-sales Service Provided
Overseas service center available
Specifications
SMF-500 Plastic Milling Machine/Plastic Pulverizer1.stable structure machine
2.high working efficiency machine
Applications
SMF series Plastic Mill is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.
The SMF series automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Characteristics
- With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
- With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
- Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.
- With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
- With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.
Characteristics
- The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
- The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
- Installation and maintenance easy, open the door to cover clean-up.
- Milling process of the whole seal, without dust leakage.
- Full automatic feeding, the materials and sorting.
- Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).

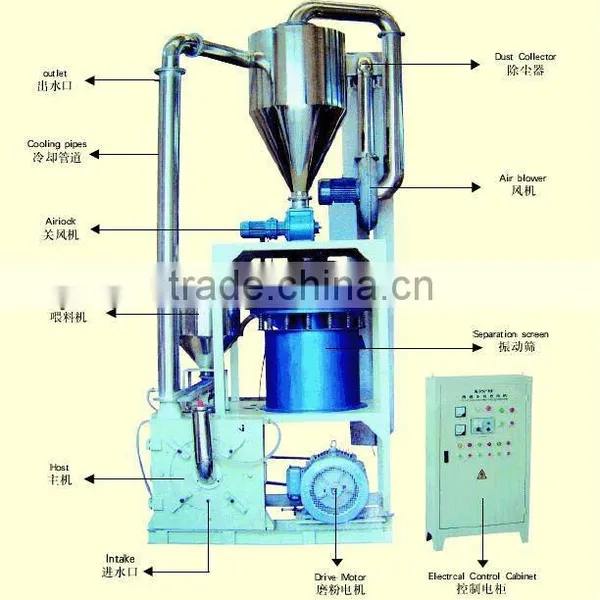

- The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
Type |
SMF-500 |
Capacity |
200-400kg/h |
Grinding room |
New design to grind , instead of SMF500 high speed milling machine |
Grinding room balde material |
Specia steel and 38CrMoAIA |
Drive motor |
37kw |
Motor manufacturer |
HUAXIN brand |
Blower motor |
11kw |
Pipe material |
All stainless steel |
Cooling method |
Water cooling, one is enter, another is out |
Air lock motor |
0.75kw |
Outer size |
2200*1900*4200mm (L * W *H) |
If you are interested in our products ,pelase contact us take more inforamtion in any time.In addition,Tell us about your material and the capacity thus we can newly designed the most suitable machine for you.
