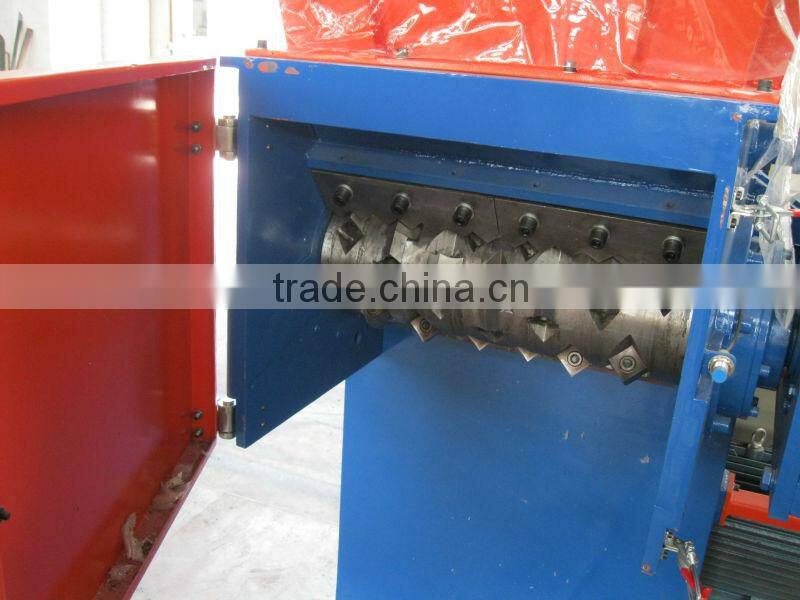

Strong single shaft waste plastic shredder machine with long working life
plastic crushing machine

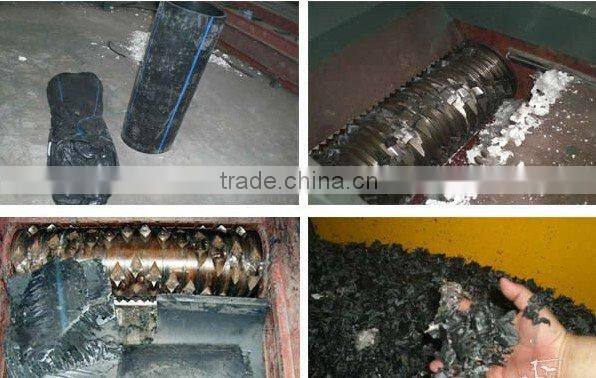

The series single shaft waste plastic shredder machine for are widely used to crush various big solid material below:
1.waste pvc or pe pipe,
2.used plastic film,
3.waste big solid plastic,
4.waste wooden pallets,
5.waste nylon,
6.waste paper box.
Characteristic of waste plastic shredder machine
1.High output:400-1500kg/h
2.Low Power consumption
3.Low noise:adopted shockproof device
4. Durable in use:blades adopted imported High quality tool steel.
5.PLC constrol
Main technical parameter
| Model number | WT600 | WT800 | WT1000 | WT1200 |
| Quantity of rotated blade | 32pcs | 38pcs | 50pcs | 95pcs |
| Quantity of seated blade | 2 sets | 2 sets | 2 sets | 2 sets |
| Material of blades | SKD-11 | SKD-11 | SKD-11 | SKD-11 |
| Rotated diameter | 320mm | 400mm | 520mm | 630mm |
| Input size | 520*520mm | 900*720mm | 1000*920mm | 1500*1300mm |
| Main motor power | 22KW | 32KW | 45KW | 90KW |
| Screen diameter | >80mm | >80mm | >80mm | >80mm |
| Capacity | 400-600kg/h | 500-800kg/h | 700-1000kg/h | 1000-1500kg/h |
| Controller | PLC | PLC | PLC | PLC |
| Rotating speed | 80-100rpm | 80-100rpm | 80-100rpm | 80-100rpm |
Tell us your requents,We can according to your request to design and manufacture.
