SWP Pipe Crusing Machine/Pipe Crusher1. applied for crushing plastic material,pipe,profile,noard etc
2. easy to operate

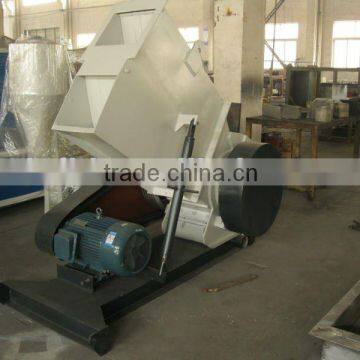

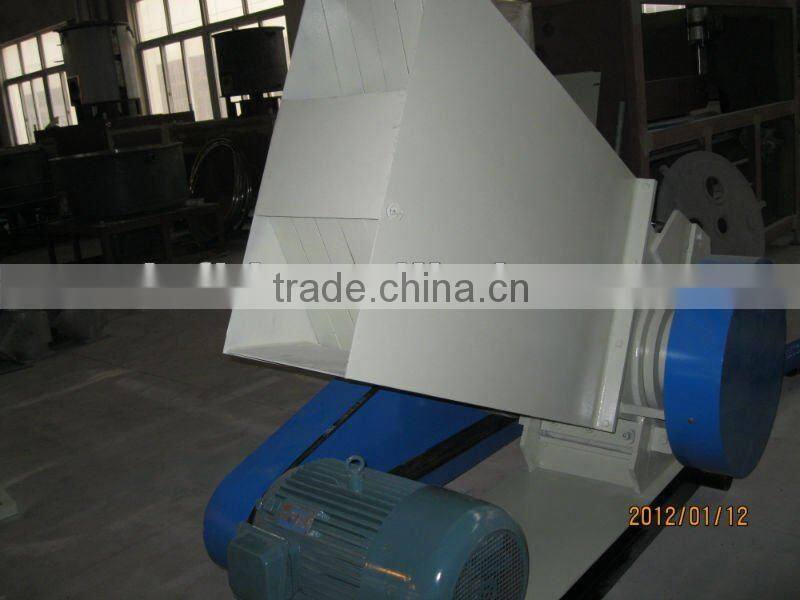

SWP Pipe Crusing Machine/Pipe Crusher
SWP Series Horizontal Plastic Breaking Machine is mainly used for breaking relatively long PVC special shaped material, such as plastic door & window, plastic pipe, sheet, etc. there is no need to cut. Once continuous feeding can be conducted. Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct.
It is a new kind of breaking machine used for breaking plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SWP series two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for breaking all sorts of pipe material and profiled material.
| Model | SWP300 | SWP400 | SWP500 | SWP600 | SWP500A | SWP500B | SWP600A | SWP600B | ||
| Rotary Knife Diameter(mm) | 400 | 400 | 400 | 400 | 400 | 600 | 400 | 600 | ||
| Rotary Knife Quantity (unit) | 3 | 5 | 5 | 10units/2groups | 6units/2groups | 6units/2groups | 6units/2groups | 6units/2groups | ||
| Rotary Knife rpm(r/min) | 600 | 500 | 500 | 480 | 500 | 480 | 480 | 480 | ||
| Static Knife Quantity(unit) | 2 | 2 | 2 | 2x2 | 2 | 2units | 4units/2groups | 4units/2groups | ||
| Sieve Aperture(mm) | φ10 | φ12 | φ12 | φ12orφ14 | φ10 | φ12 | φ14 | φ14 | ||
| Crushing Capacity(kg/h) | 150-200 | 300-400 | 400-500 | 500-700 | 250-350 | 300-450 | 350-500 | 400-650 | ||
| Power(kw) | 13.2 | 18 | 18-22 | 33 | 25 | 25-30 | 33-40 | 33-40 | ||
| Power Source | 3 380V 50Hz | |||||||||
| Feed Door Caliber(mm | 300x200 | 350x300 | 500x300 | 650x300 | 500x280 | 500x350 | 650x280 | 650x350 | ||
| Weight(kg) | 950 | 1300 | 1500 | 1800 | 1600 | 1800 | 2250 | 2800 | ||
| Dimensions(mm) | 1600x800x1600 | 1800x900x1800 | 1800x900x1800 | 1800x1100x1850 | 1800x1000x1850 | 1800x1160x1880 | 1800x1200x1900 | 1800x1200x2000 | ||
