Help Center1.7HP 4AM Small Pneumatic Gear Reducer Motor Quality Choice
Related Products
-
4HP High Torque 1:100 Gear Reducer Pneumatic MotorUS$ 250 - 1,000MOQ: 1 Set -
HX6AM IEC #72 Flange Mounting Air Motor,4 Vanes,Reversible Rotaty Vane Air MotorUS$ 200 - 300MOQ: 1 Set
-
NEMA 56C Mounting,4 Vanes,Reversible 4AM 1.7hp Air Motor,Pneumatic MotorUS$ 200 - 400MOQ: 1 Set
-
HX4AM-F110 IEC D71 Flange Mounting,4 Vanes,Reversible 4AM Pneumatic MotorUS$ 150 - 250MOQ: 1 Set
-
NEMA 56C Mounting,4 Vanes,Reversible 2AM Air MotorUS$ 100 - 150MOQ: 1 Set
Specifications
Vane TypeGeared and Non-geared Varieties
Low Speed, High Torque
Rugged Service Life
Ease of Maintenance
1.7HP 4AM Small Pneumatic Gear Reducer Motor
Type |
Max speed |
Max Torque |
||||||||
Speed |
Power |
Torque |
Air consumption |
Speed |
Torque |
|||||
R.P.M |
KW |
HP |
Lb-in |
Nm |
cfm |
L/min |
R.P.M |
Nm |
Lb-in |
|
1AM |
10000 |
0.33 |
0.45 |
2.75 |
0.31 |
20.5 |
585 |
650 |
0.65 |
5.6 |
2AM |
3000 |
0.69 |
0..93 |
19.5 |
2.2 |
30 |
850 |
350 |
3.05 |
27 |
4AM |
3000 |
1.3 |
1.7 |
36.29 |
4.1 |
78 |
2200 |
300 |
6.3 |
56 |
6AM |
3000 |
3 |
4 |
88.5 |
10 |
128 |
3620 |
300 |
13 |
115 |
8AM |
2500 |
3.9 |
5.25 |
132 |
14.4 |
175 |
4955 |
300 |
21 |
185 |
16AM |
2000 |
7.08 |
9.5 |
300 |
34 |
275 |
7787 |
300 |
43 |
380 |
Air preparation
To ensure reliable service an air filter and lubricator (if the motor is not lubrication free) should be fitted into the inlet airline – within 5 meters from the motor.
It is recommended that a pressure regulator is also incorporated into the air preparation package.
This has the function of maintaining the desired working pressure, and can be used to modify the output exactly to meet the needs of the application.
To remember: When selecting an air preparation package, ensure all components have a flow capacity sufficient to meet the requirements of the motor.

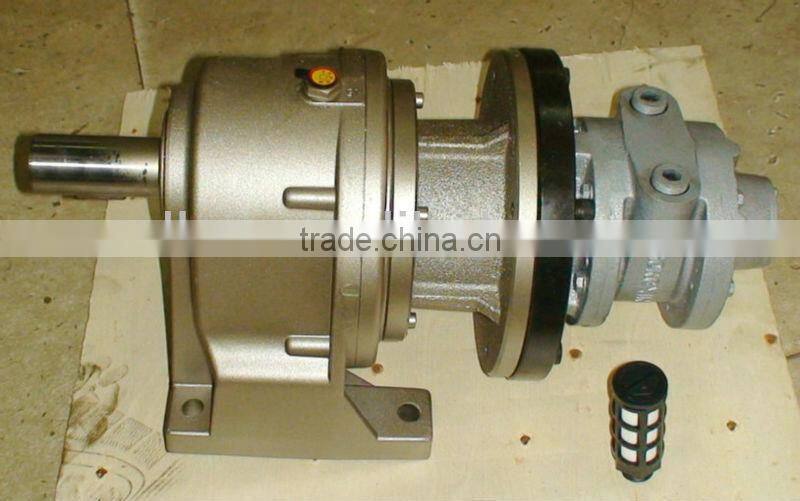

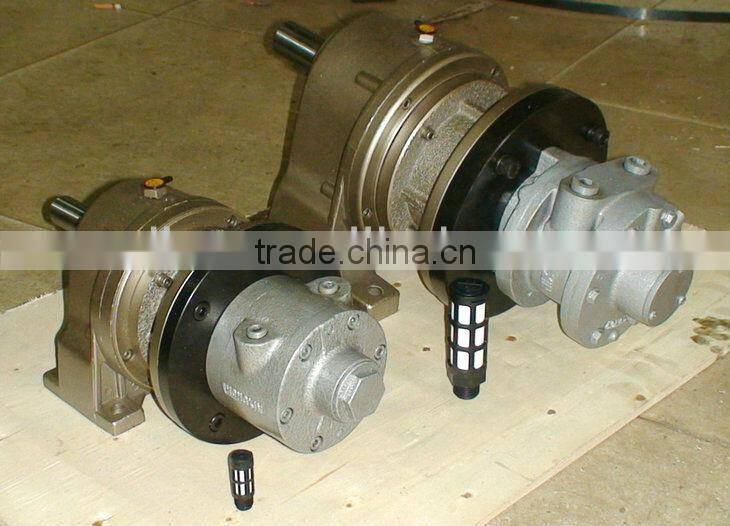

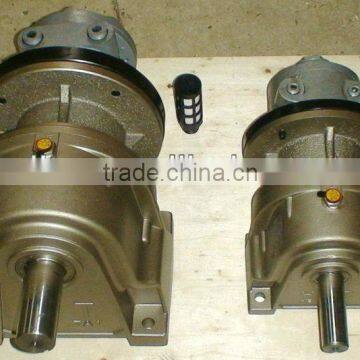

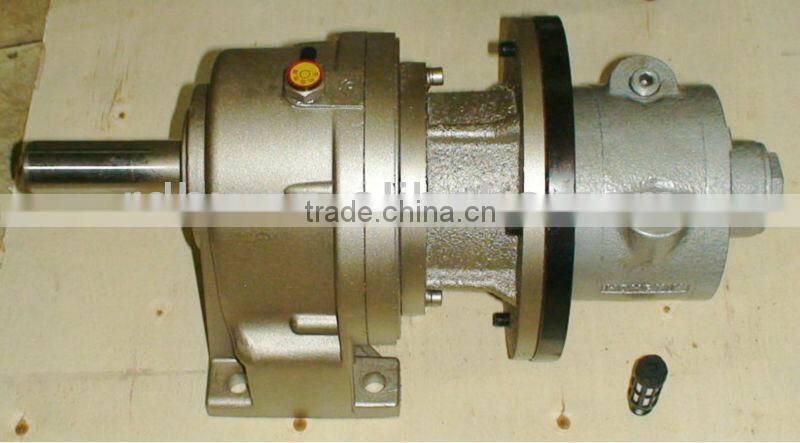

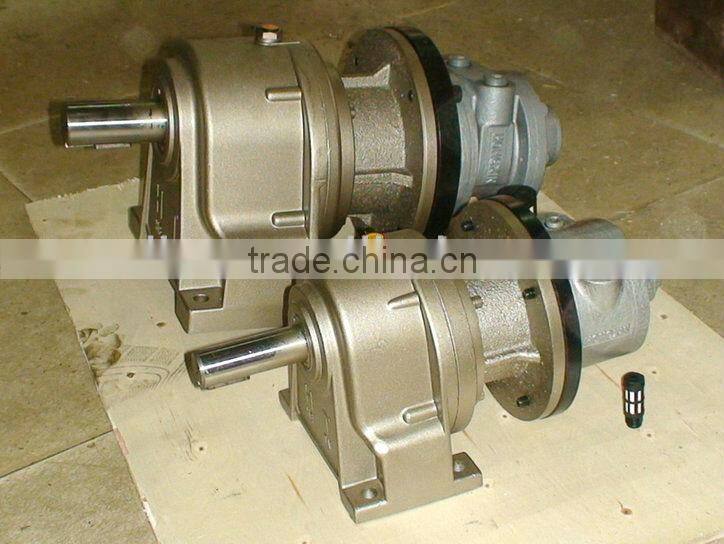

Real Product Show:
