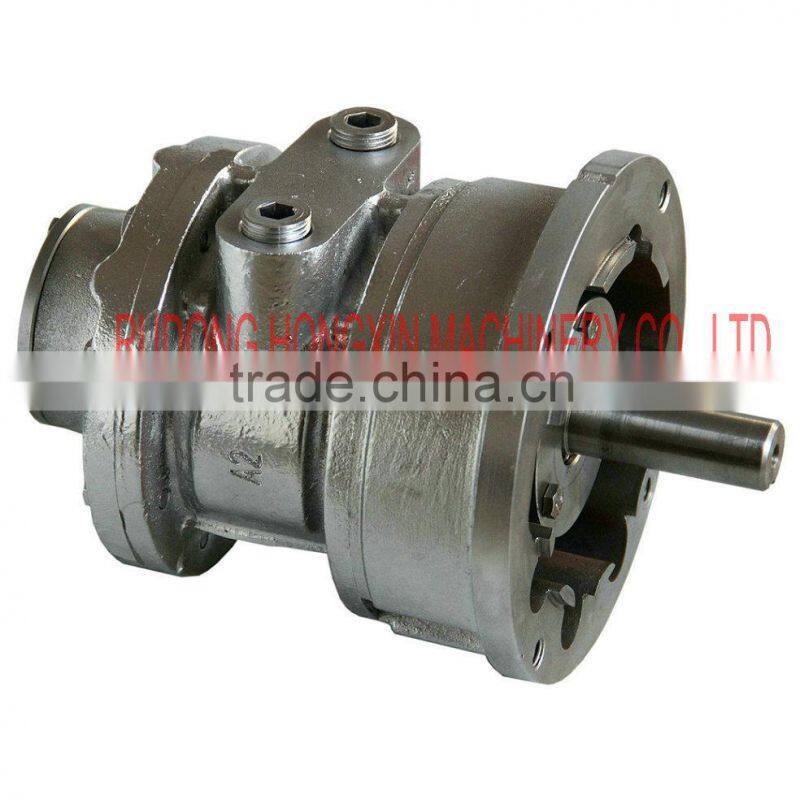

HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor

HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-1
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-2
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-3
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-4
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-5
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor thumbnail-6
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-1
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-2
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-3
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-4
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-5
HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor photo-6
US$ 200 - 400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONGXIN
Type:
Other, Pneumatic motor
Contact Supplier Request Quote Chat Now
Rudong Hongxin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONGXIN
Type Other, Pneumatic motor
Average Air Consumption 175CFM
Maximum Torque 21Nm
No-Load Speed 2500RPM

HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor



Known industry wide for their rugged construction and reliability,Hongxin air motors are used in a variety of applications.

Lubricated air motors come in seven basic models up to 9.5hp(7kw);motor speeds are variable from 300 to 10,000rpm.

Choose from hub,foot,face,flange interfacee mountings and clockwise,counterclockwise or reversible rotations.

Four and eight vane models are also available.



Why you should look into a Hongxin Air Motor?



Variable speed

Nonelectrical sparking

Instantly reversible

Cool running

Compact and portable

Minimum maintenance

Will not burn out

Low price

Operate in all positions

Low shock starts

Self sealing vanes

Mounting flexibility

Four vane or eight vane

Long life accessories



Typical Applications



Mixing equipment

Conveyor drives

Pump drives

Food packaging

Pharmaceutical packaging

Hoists and winches

Hose reels

Fiberglass choppers

Tension devices

Turntables



Performance Overview



VANE AIR MOTOR

Model

Operation Data

Maximum Torque

Power

Torque

Rotate Speed

Air Consumption

Rotate Speed

Torque

hp

kW

Nm

lb.in

rpm

m³/h

cfm

rpm

Nm

lb.in

HX1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.60

HX1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.00

HX2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.10

HX4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56.00

HX6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115.00

HX8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185.00

HX16AM

9.50

 7.00 34 290 2000 475 275 300 43 372

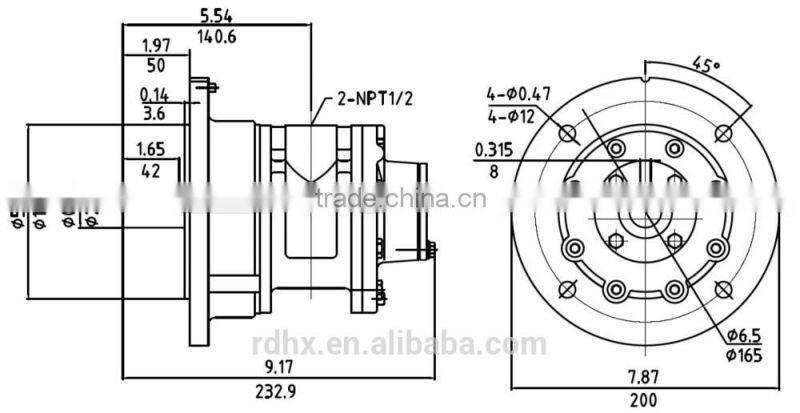

Drawing For HONGXIN BRAND HX8AM-F130 Vane Type Pneumatic Motor:

HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor



Photoes & Drawings

HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor                       HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor                       HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor

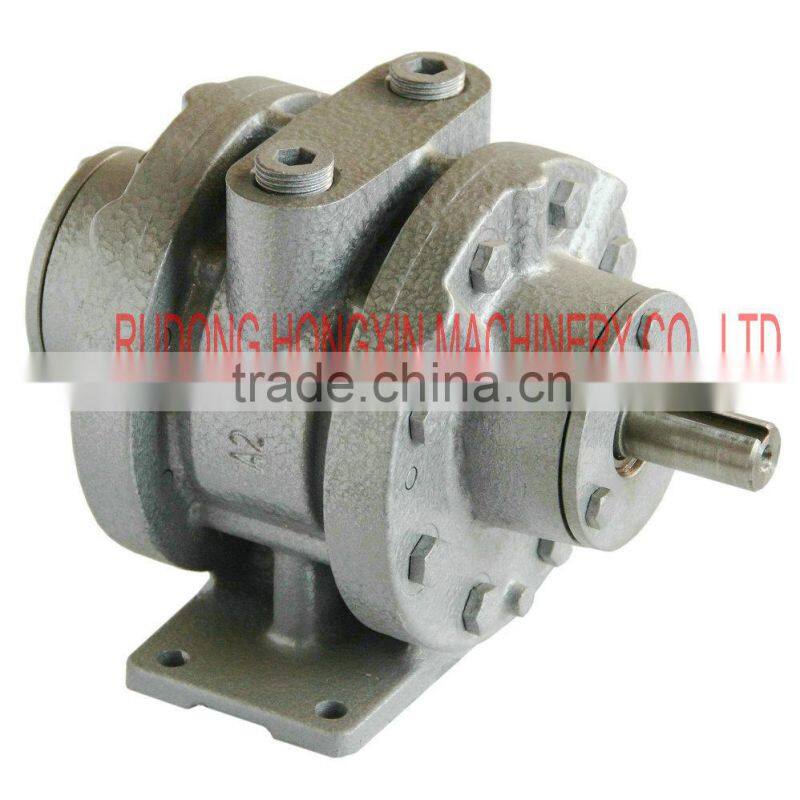

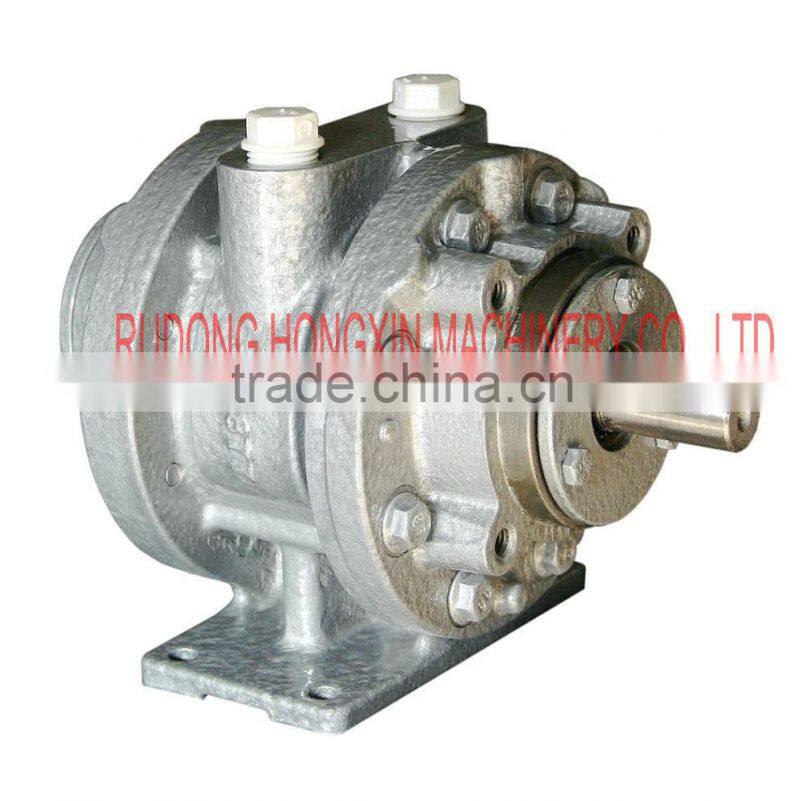

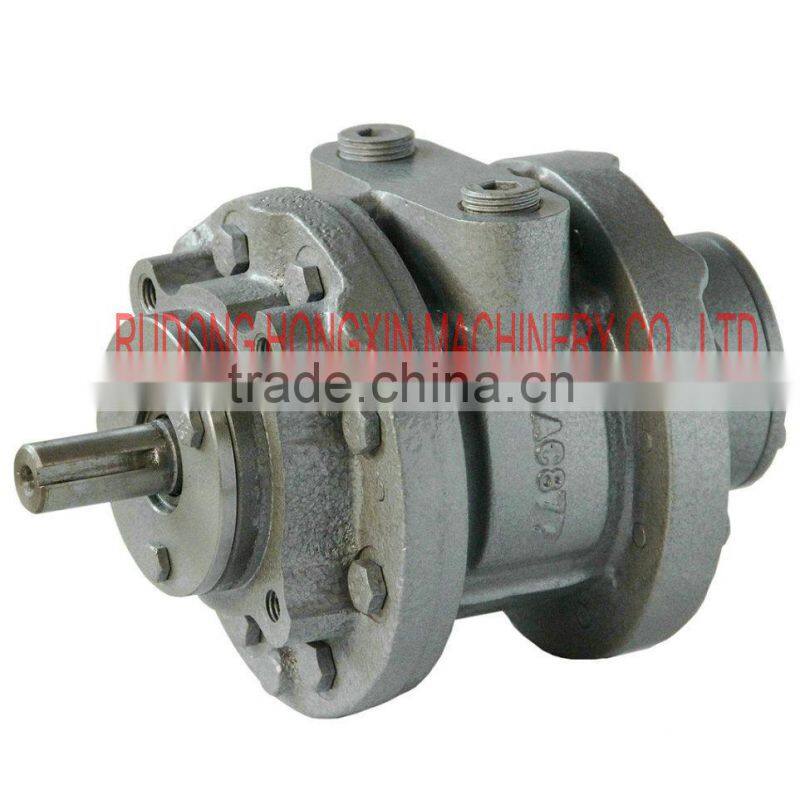

HX8AM-H(GAST MODEL 8AM-FRV-2B)            HX8AM-V(GAST MODEL 8AM-NRV-5B)                 HX8AM-HV

FOOT MOUNTING                                                FACE MOUNTING                                                      FOOT & FACE MOUNTING



HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor                          HX8AM-F130 Flange Mounting Pneumatic Motor,Gast Model 8AM-ARV-70 Pneumatic Motor

HX8AM-F114.3(GAST MODEL 8AM-NRV-28A)         HX8AM-F130(GAST MODEL 8AM-ARV-70)

NEMA 145TC MOUNTING                                            IEC #72 MOUNTING
