Help CenterFB45 With FBWJ-02 and EM9767 Hot Sell Electret Condenser Microphone With Loudspeaker and Connector (FBELE)
Related Products
-
EM9767 With Boot and Wire Omnidirectional D9.7mm Electret Condenser Microphone With Wire(FBELE)US$ 0.01 - 0.08MOQ: 100 Pieces -
FBEM32 MEMS Silicon Seam Sealed Ceramic 3.2*2.5mm Smd Quartz Crystal Bluetooth Microphone for Headset(FBELE)US$ 0.02 - 2MOQ: 100 Pieces
-
FBEM54 Hot Sell High Sensitivity MEMS Silicon Electret Condenser Mic for Mobile Phone(FBELE)US$ 0.02 - 2MOQ: 100 Pieces
-
EM9767 High Sensitivity Electret Condenser Microphone (FBELE)US$ 0.01 - 0.08MOQ: 100 Pieces
-
EM6027 H2.7mm D6.0mm Back Electret Condenser Microphone (FBELE)US$ 0.01 - 0.08MOQ: 100 Pieces

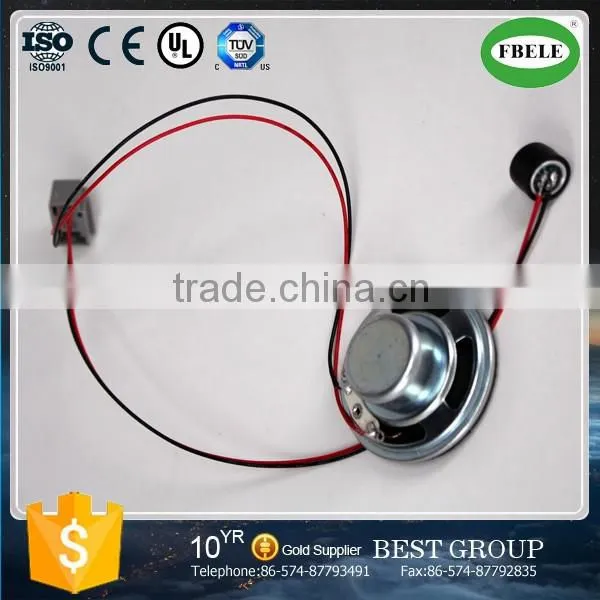

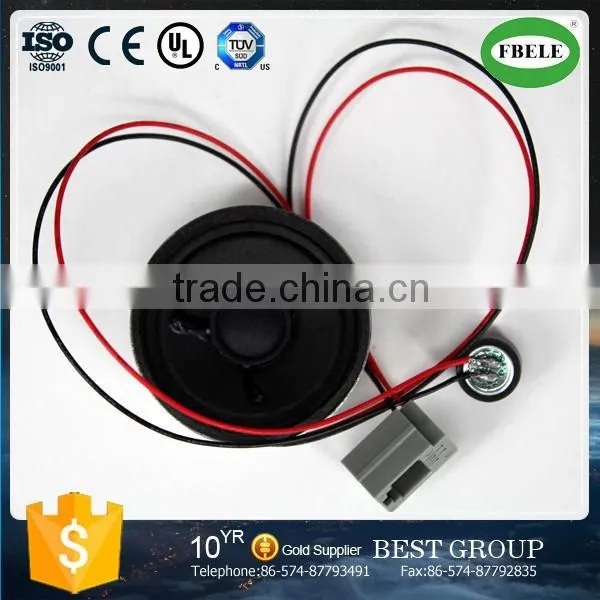

FB45 with FBWJ-02 and EM9767 hot sell Electret Condenser Microphone with loudspeaker and connector (FBELE)
| RATING POWER | 0.3W |
| VOICE COIL IMPEDANCE | 16 Ω±15% at 1000Hz 1.0 V |
| RESONANCE FREQUENCY | 500Hz±20% at 1.0 V |
| SOUND PRESSURE | 88±3dB 0.1m / 0.1W at800,1000,1500,2000Hz in average |
| RESPONSE RANGE | Fo ~ 20 K Hz deviation 10 dB Max. |
| DISTORTION | 5% max at 1K Hz 0.3W |
| MAX INPUT POWER | 0.5 W must be normal at a white noise for one min |
| VOICE COIL | 13.28mm |
| HEAT TEST | 66℃±3℃ 15% R.H. 96 Hours |
| LOAT TEST | White noise 0.3 W 24 Hours |
drawing for microphone

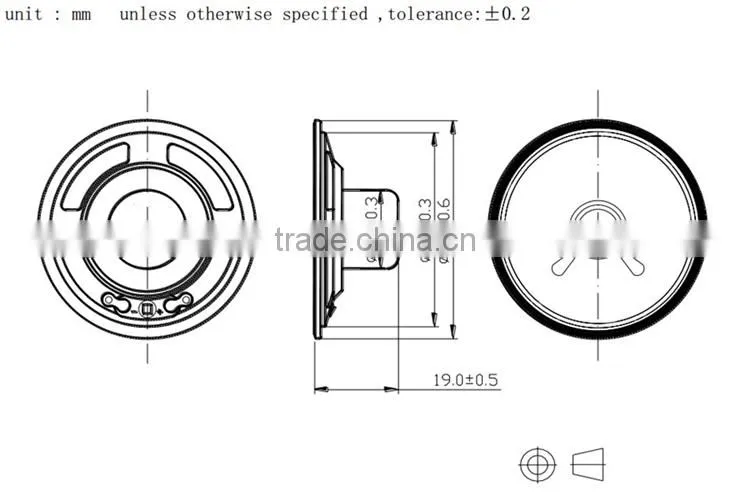

Drawing for speaker
We will check the time for you.1.When can we get the reply?
Any inquiries will be replied within 24 hours.
Our SUNPHOR sales team will try our best to support you.
2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy sample to test first.
3.Do you have EU style adapter?
A: Yes,We have EU,UK and USA style adapter
4.Can customize,modify and develop products according to the design drawing?Yes,wprovide OEM service and can customize products according to the drawing.
5.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000, 3C, CE and FCC.
6.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity,
7.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.
8.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times
9.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc.
