High Reliability Everlight Laser Diode Module,pb Free Everlight Laser Diode Module,808nm Laser Module
Negotiable
MOQ: 100 Pairs (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
ELITE
Model Number:
EL
Payment & Shipping
Payment Methods:
Port of Shipment:
XI AN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Life pb Free Everlight Laser Diode Module,808nm Laser Module,ir Laser ModuleNegotiableMOQ: 100 Pairs -
Pointer 808nm Laser Module,ir Laser Module,blue Laser Diode ModuleNegotiableMOQ: 100 Pairs
-
High Quality 3VDC ir Laser Module,blue Laser Diode Module,445nm Laser Diode ModuleNegotiableMOQ: 100 Pairs
-
1mW-200mW Blue Laser Diode Module,445nm Laser Diode Module,650nm Laser DiodeNegotiableMOQ: 100 Pairs
-
Laser Sight Customized 445nm Laser Diode Module,650nm Laser Diode,laser Diode 10wNegotiableMOQ: 100 Pairs
Place of Origin
Shaanxi, China
Brand Name
ELITE
Model Number
EL
Type
Laser Diode
Package Type
Other, One Unit packed into Static-free plastic bag
High reliability everlight laser diode module,pb free everlight laser diode module,808nm laser module
Product Description
Product descriptions of everlight laser diode module :
Mini Laser Diode Modules
Elite optoelectronics Co,.LTD,established in 2003,is a professional company specialized in developing and manufacturing mini green laser diode module and optoelectronic products. Mini laser diode module, small dimension and with low power consumption, particularly suited for built-in miniature devices and tools, which could enable the laser tools and equipments miniaturized. Mini laser diode module is mainly applied in gun laser sighting, bar code scanning, etc.
Quick Details
- Function: pointer
- Battery: 3VDC
- Lifetime: >8000Hrs
- Certificated: FDA IEC SGS ISO9001-2008
- Material: brass or aluminum
- output power: 1mW ~ 200mW
- laser pattern: dot,line and cross
- Operating Temp.: -10°C ~ 50°C
- laser type: mini green laser diode module
- Temp. Stability: > 95% (@-10°C ~ 50°C)
- Voltage Stability: > 98% (@2.7 ~ 5.5VDC)
Specifications
mini laser diode module
Ten years experience
FDA IEC SGS ISO9001-2008
Wide temperature range -10C ~ 50C
high reliable
Long lifespan
| Key Feature | Application |
| 1.Small dimension | 1. Gun Laser Sight |
| 2.Low Consumption | 2. Laser Alignment |
| 3.Low cost | 3. Bar Scan |
Specifications
| Parameter | Specifications. | Test Conditions |
| Wavelength | 532 nm | Tc = 25°C |
| Output Power | 4 ± 0.8mw | Tc = 25°C |
| Laser Modes | CW | |
| Transverse mode | TEM00 | |
| Output Aperture | < 1.5 mm | Factory fixed |
| Beam Size | < 8 mm | Factory fixed @ 10m |
| Divergence | < 0.8 mrad | Tc = 25 ±3°C |
| Stability | > 80 % | |
| Operating Current | < 180 mA | Tc = 25±3°C |
| Operating Voltage | 3 VDC | |
| Operating Temp. | 0°C ~ 45°C | |
| Storage Temp. | -20°C ~ 70°C | |
| Optics | Glass Lens | |
| CDRH Class | Class IIIa | |
| MTTF | 8000 Hrs. | Tc = 25±3°C |
| Model | Wave | Aperture | Output | Divergence | Beam Size | Lens | Dimension |
| Length | Power | ||||||
| MN650-05FA | 650nm | ¢1.8mm | <3.5mw | 0.8mrad | 6x12mm(at10m) | Optical Glass | ¢3.8x8.5mm |
| MN650-05FB | 650nm | ¢2.4mm | <3.2mw | 0.6mrad | 5x10mm(at10m) | Optical Glass | ¢4.0x10mm |
| MN650-05FC | 650nm | ¢3.0mm | <3.0mw | 0.4mrad | 4x8mm(at10m) | Optical Glass | ¢6.0x12mm |
| MN650-10FA | 650nm | ¢1.8mm | <5.0mw | 0.8mrad | 6x12mm(at10m) | Optical Glass | ¢3.8x8.5mm |
| MN650-10FB | 650nm | ¢2.4mm | <4.5mw | 0.6mrad | 5x10mm(at10m) | Optical Glass | ¢4.0x10mm |
| MN650-10FC | 650nm | ¢3.0mm | <4.2mw | 0.4mrad | 4x8mm(at10m) | Optical Glass | ¢6.0x12mm |
| MN635-05FA | 635nm | ¢1.8mm | <3.5mw | 0.8mrad | 6x12mm(at10m) | Optical Glass | ¢3.8x8.5mm |
| MN635-05FB | 635nm | ¢2.4mm | <3.2mw | 0.6mrad | 5x10mm(at10m) | Optical Glass | ¢4.0x10mm |
| MN635-05FC | 635nm | ¢3.0mm | <3.0mw | 0.4mrad | 4x8mm(at10m) | Optical Glass | ¢6.0x12mm |
| MN635-10FA | 635nm | ¢1.8mm | <5.0mw | 0.8mrad | 6x12mm(at10m) | Optical Glass | ¢3.8x8.5mm |
| MN635-10FB | 635nm | ¢2.4mm | <4.5mw | 0.6mrad | 5x10mm(at10m) | Optical Glass | ¢4.0x10mm |
| MN635-10FC | 635nm | ¢3.0mm | <4.2mw | 0.4mrad | 4x8mm(at10m) | Optical Glass | ¢6.0x12mm |
QC Flow
1 Professional Power Meter for double check
2 Qualified professional staff for the beam size/line thickness testing
3 Strictly surface Inspection before load to the warehouse.

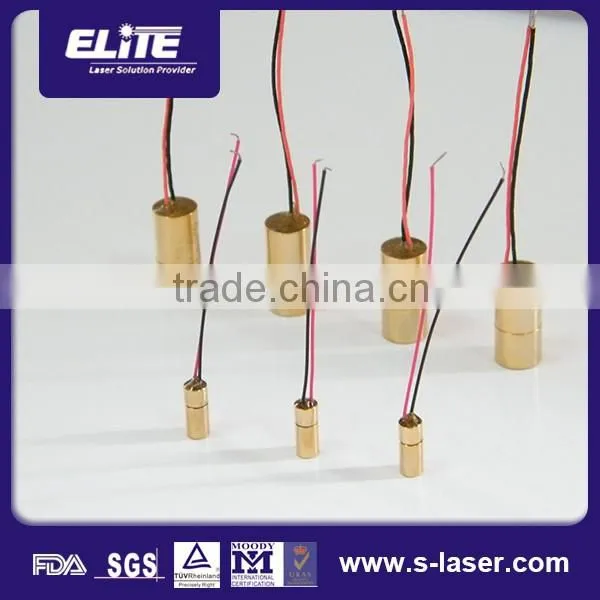

Product pictures of everlight laser diode module :
