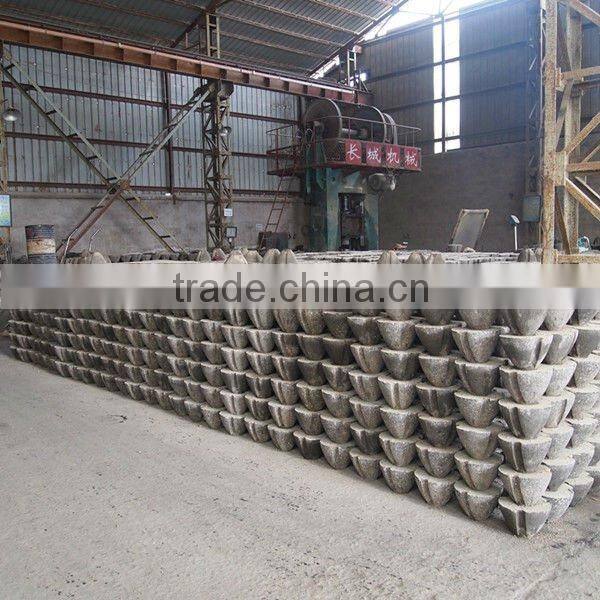

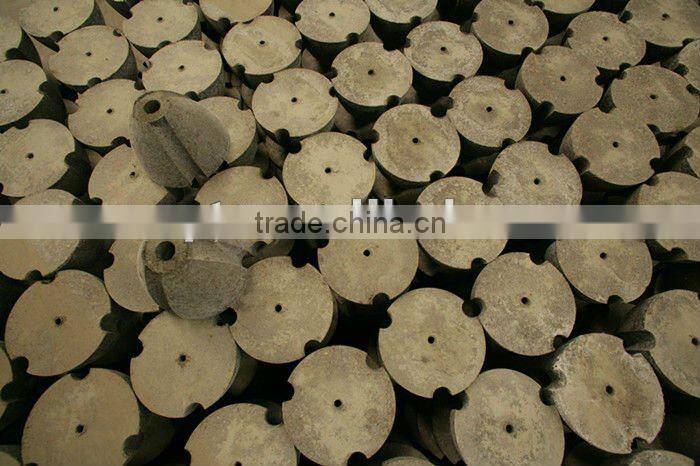

300 TONES CONVERTER SLAG DARTS

300 TONES CONVERTER SLAG DARTS thumbnail-1
300 TONES CONVERTER SLAG DARTS photo-1
US$ 25 - 30 MOQ: 40 Sets
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Shape:
Ball, cone
Material:
Other, MgO Al2O3, refractory material
Contact Supplier Request Quote Chat Now
Anhui Yuntian Metallurgy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Material Other, MgO Al2O3, refractory material
SiO2 Content (%) microscale
Al2O3 Content (%) 30%
MgO Content (%) 60%
CaO Content (%) microscale
CrO Content (%) microscale
SiC Content (%) microscale
Model Number M-2
Brand Name YTD

Specifications

1.Slag-stopping's effective rate is 99%.
2.Passed the quality authentication of ISO9001.
3.Exported to all over the world.

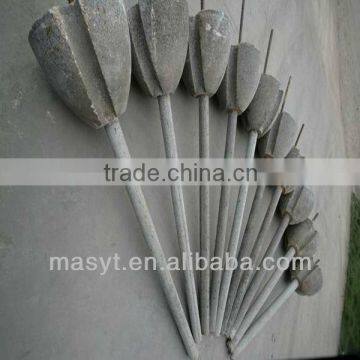

In the converter steel-making processing, a lot of steel-slag in melting state is produced. Traditionally in metallurgy, when slag stopping balls are used, the balls drop inside and slide-roll to the furnace dump-mouth, because of the movement of the slag stopping balls is without a definitive direction to the tapping hole,so the molten steel can not outflow completely and affect the slag splashing,the cost is increasing.The efficiency of the slag-stopping ball is less than 70%. Using the slag-stopping plug in tapping process, its efficiency can be improved 96%, with slag thickness ≤40mm.



Physical Specs



Mode

Density

Anti-pressing strength

Anti-heating strength

Plug body

Guiding rod

Plug body

Guiding rod

Plug body

Guiding rod



M-1Type



4.1g/cm3



3.9g/cm3

110 °C×24h40Mpa

40Mpa



1790 °C



1790°C

1500 °C ×3h60Mpa

50Mpa



A-1Type



4.1g/cm3



3.9g/cm3

110°C ×24h50Mpa

40Mpa



1790 °C



1790 °C

1500 °C ×3h70Mpa

50Mpa



Chemical Specs

Item

Mode

Plug body

Guiding rod

MgO

M-1

60%

60%

Al 2O 3

A-1

60%

60%



Attention:

1.M-1 type is Magnesium slag-stopping plug, A-1 type is Aluminous slag-stopping plug.

1.The density of slag-stopping plug can be customized by client's requirements

2.The length and size of the guiding rod can be made by client's drawings300 TONES CONVERTER SLAG DARTS300 TONES CONVERTER SLAG DARTS.300 TONES CONVERTER SLAG DARTS
