Specifications
-Beam type: cross-FDA ISO2000:2008 IEC
-SGS TUV assessed supplier
-Wide work temperature
-High reliability
China alunimium anodized/brass diode laser,laser diode bar

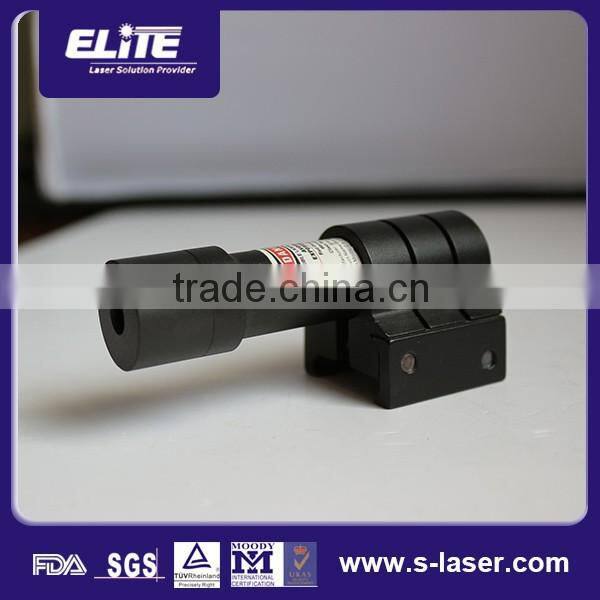

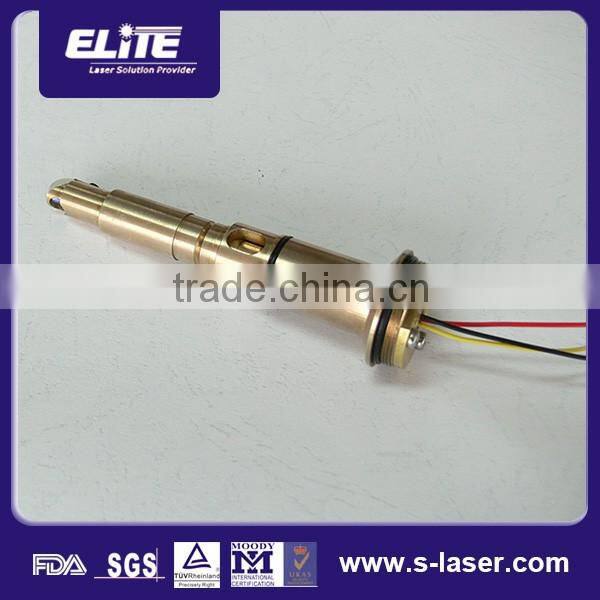

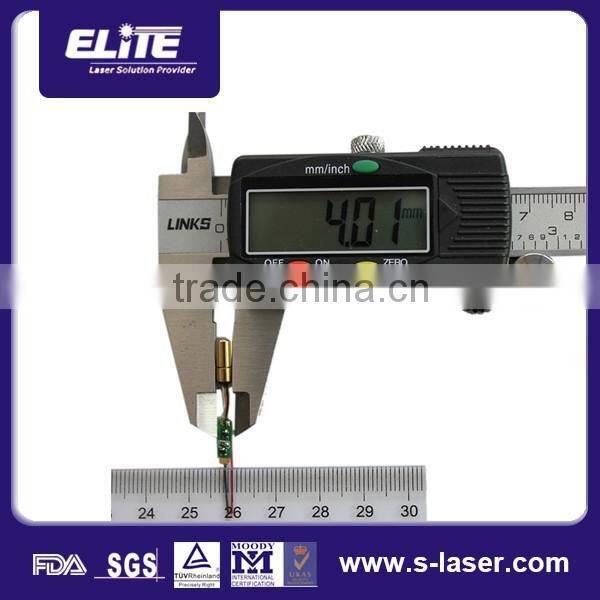

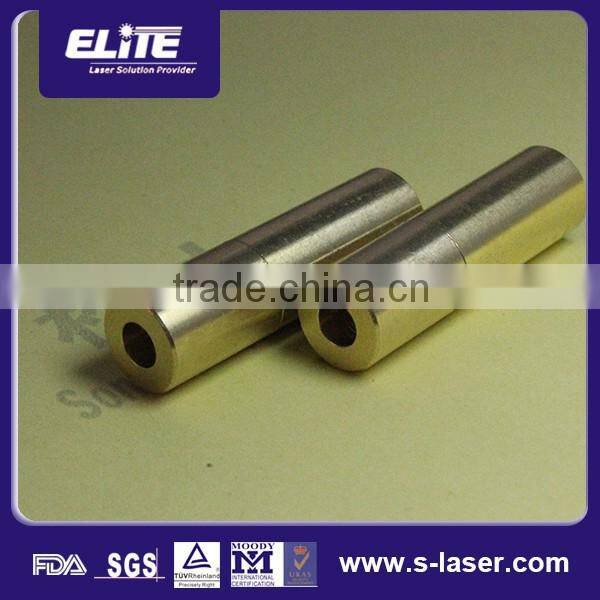

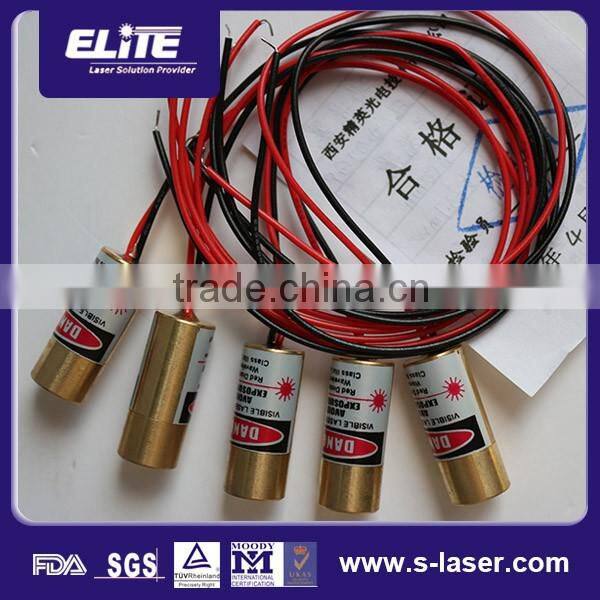

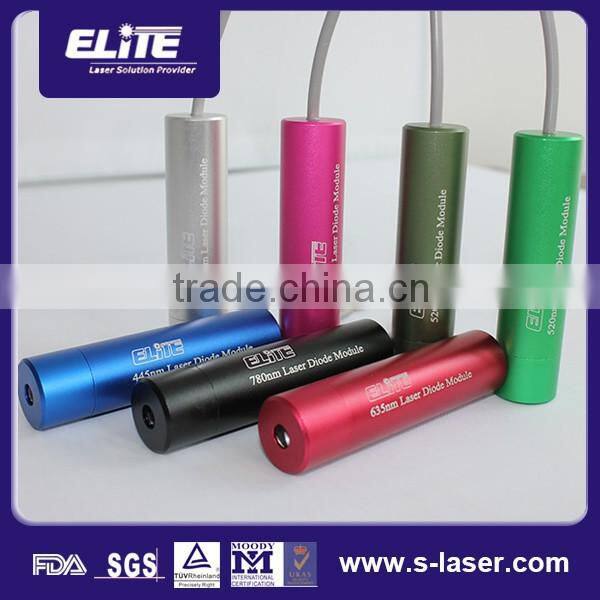

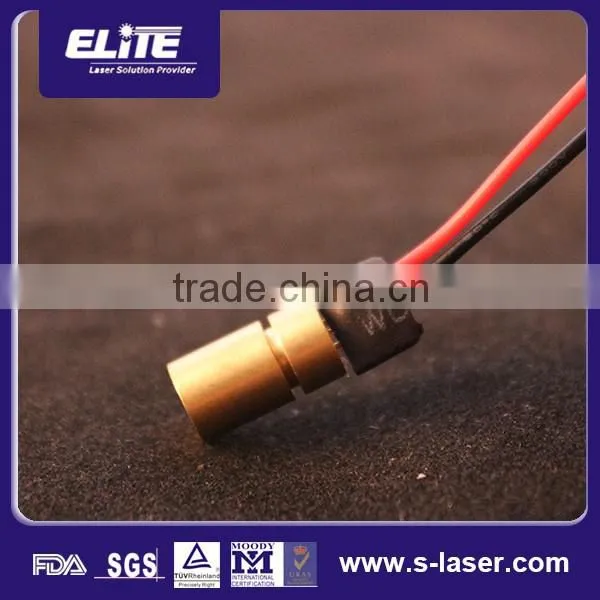

Product pictures of laser diode bar :
Product descriptions of laser diode bar :
Specifications
-Beam type: cross
-FDA ISO2000:2008 IEC
-SGS TUV assessed supplier
-Wide work temperature
-High reliability
-Wavelength: 405nm-980nm
-Compact size
Industrial Laser Diode Modules
Items | Specifications | ||||||||
Spectral Range | Violet | Blue | Red | Infrared | |||||
Wavelength | 405nm | 450nm | 635nm | 650nm | 780nm | 808nm | 830nm | 850nm | 980nm |
LD power(mW) | 5- 50 | 5-60 | 5~180 | 5~150 | 5~200 | 50~5000 | 5-100 | 5~100 | 20~5000 |
Operating Current | 25~5000mA | ||||||||
Input Voltage | 2.6~5.5VDC | ||||||||
Operating Temp. | -10°C ~ 50°C | ||||||||
Storage Temp. | -40°C ~ 80°C | ||||||||
Power Stability | > 98% (@2.7 ~ 5.5VDC) | ||||||||
> 95% (@-10°C ~ 50°C) | |||||||||
MTTF | >10000 Hrs. | ||||||||
Circuit Protection | Static, Surge, and Reverse Polarity Protected | ||||||||
Case Material | Brass or Aluminum | ||||||||
Beam Pattern | Cross | ||||||||
Which could be combined with Line-Series.
Note:
1 The Dot series laser diode module is customized product with different plastic and glass lens.
Thus the laser shape could be an ellipse or circle with various divergence, beam size and
aperture. The output power is adjustable according to customers’ requirements.
2 Dimensions are customized according to customer’s needs except the ones list.
3 More models could be offered such as EL65D05IGX, EL65D05IG6,EL65D05IG7,EL65D05IG10,
EL65D05IG15, etc. Elite is continually developing new models and launching to me.
QC Flow:
1 Professional Power Meter for double check
2 Qualified professional staff for the beam size/line thickness testing
3 Strictly surface Inspection before load to the warehouse.
Sent Us Inquiry Now and Pls mention the following points:
1 Wavelength
2 Output Powder
3 Housing Dimension
4 Work distance
5 Beam size, which including the fan angle and the line thickness
Elite could supply a series of Laser Sight (Green, Red , Infrared) and Bore Sight
(223,204,30Carbine,9mm,17H.M.R,.22,7.62x39,7.62x51,7.62x54,8x57mm,25-06Rem(30-06Spr/270Win),243Win(308Win/260Rem/7mm-08/358Win), 22-250Rem, 30-30Win, 264Win 375H+H, 270WSM, 45-70Gove,6.5x55mm,38Spec, 44Mag, 45Acp, 45Colt, 12Gauge, 20Gauge).
If you want best quality laser/bore sight,Elite is your best choice.
