Aibaba China Direct Green Laser Diode Modules,standard Diode Modules

Name: Aibaba China Direct Green Laser Diode Modules,standard Diode Modules
Brand: ELITE
SKU: 124690123
Availability: InStock

Negotiable MOQ: 100 Pairs (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

ELITE

Model Number:

VB520

Elite Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XI AN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name ELITE

Model Number VB520

Aibaba China direct green laser diode modules,standard diode modules

Product Description

Product descriptions of standard diode modules :

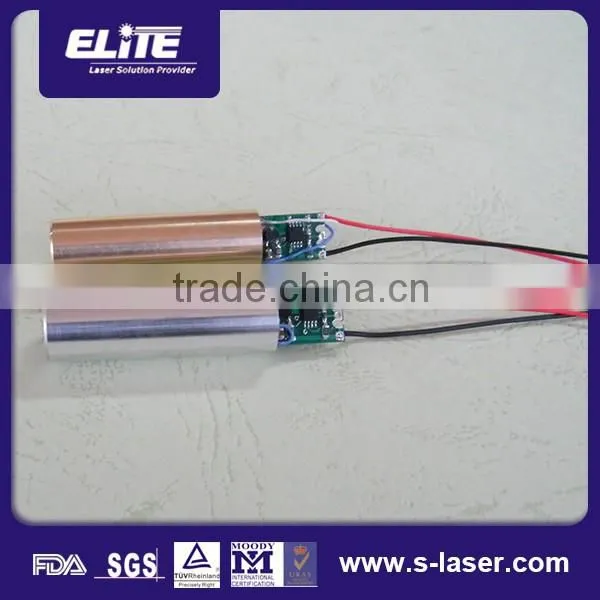

It’s direct diode green laser module with high reliability, wide work temperature and compact size characteristics.

Quick Details

1. High quality
2. High Stability
3. High reliability
4. APC driving circuit
5. Low cost / Long Life

Features	Application
1.Wavelength:520 nm	1. Industrial Instruments and Equipments
2.High brightness, optical output power: <5.0 mW	2. Wild Explore Instruments
3.Low operating current: <180mA	3. Military Instruments and Equipments
4.Low operating voltage: 3VDC	4. Medical Instruments
5.Class IIIa laser, CDRH/ROHS compatible	5. Surveying Instruments
6.Static, Surge, and Reverse Polarity Protected	6. Bar Scan
7.Circuit control: Auto power control (APC)
8.Operating Temperature: -10 to 50°C

Features and Electrical Characteristics

520nm D-Series (Dot Module)

Model	Pattern	Aperture	Output Power	Divergence	Beam Size	Dimension
VB520D10VG1	dot	1.5mm	<5.0mw	0.8mrad	<0.5mm at 0.5m	¢ 10x30mm
VB520D10VG2	dot	2.0mm	<5.0mw	0.8mrad	<1.0mm at 1.0m	¢ 10x30mm
VB520D10VG3	dot	3.0mm	<5.0mw	0.6mrad	<2.0mm at 2.0m	¢ 12x40mm
VB520D10VG4	dot	4.0mm	<5.0mw	0.4mrad	<5.0mm at 10.0m	¢ 12x40mm
VB520D10VG5	dot	6.0mm	<5.0mw	0.2mrad	<10.0mm at 2.0m	¢ 12x45mm
VB520D20VG1	dot	1.5mm	<10.0mw	0.8mrad	<0.5mm at 0.5m	¢ 10x30mm
VB520D20VG2	dot	2.0mm	<10.0mw	0.8mrad	<1.0mm at 1.0m	¢ 10x30mm
VB520D20VG3	dot	3.0mm	<10.0mw	0.6mrad	<2.0mm at 2.0m	¢ 12x40mm
VB520D20VG4	dot	4.0mm	<10.0mw	0.4mrad	<5.0mm at 10.0m	¢ 12x40mm
VB520D20VG5	dot	6.0mm	<10.0mw	0.2mrad	<10.0mm at 2.0m	¢ 12x45mm
VB520D30VG1	dot	1.5mm	<15.0mw	0.8mrad	<0.5mm at 0.5m	¢ 10x30mm
VB520D30VG2	dot	2.0mm	<15.0mw	0.8mrad	<1.0mm at 1.0m	¢ 10x30mm
VB520D30VG3	dot	3.0mm	<15.0mw	0.6mrad	<2.0mm at 2.0m	¢ 12x40mm
...	...	...	...	...	...	...

520nm L-Series (Line Module)

Model	Pattern	Aperture	Output Power	Fan Angle	Line Width	Dimension
VB520L10VG1	Line	3.0mm	<5.0mw	5°-90°	<0.5mm at 0.5m	¢ 10x40mm
VB520L10VG2	Line	3.0mm	<5.0mw	5°-90°	<1.0mm at 1.0m	¢ 10x40mm
VB520L10VG3	Line	4.0mm	<5.0mw	5°-90°	<2.0mm at 3.0m	¢ 12x45mm
VB520L10VG4	Line	5.0mm	<5.0mw	5°-90°	<5.0mm at 10.0m	¢ 12x45mm
VB520L20VG1	Line	3.0mm	<10.0mw	5°-90°	<0.5mm at 0.5m	¢ 10x40mm
VB520L20VG2	Line	3.0mm	<10.0mw	5°-90°	<1.0mm at 1.0m	¢ 10x40mm
VB520L20VG3	Line	4.0mm	<10.0mw	5°-90°	<2.0mm at 3.0m	¢ 12x45mm
VB520L20VG4	Line	5.0mm	<10.0mw	5°-90°	<5.0mm at 10.0m	¢ 12x45mm
VB520L30VG1	Line	3.0mm	<15.0mw	5°-90°	<0.5mm at 0.5m	¢ 10x40mm
VB520L30VG2	Line	3.0mm	<15.0mw	5°-90°	<1.0mm at 1.0m	¢ 10x40mm
...	...	...	...	...	...	...
